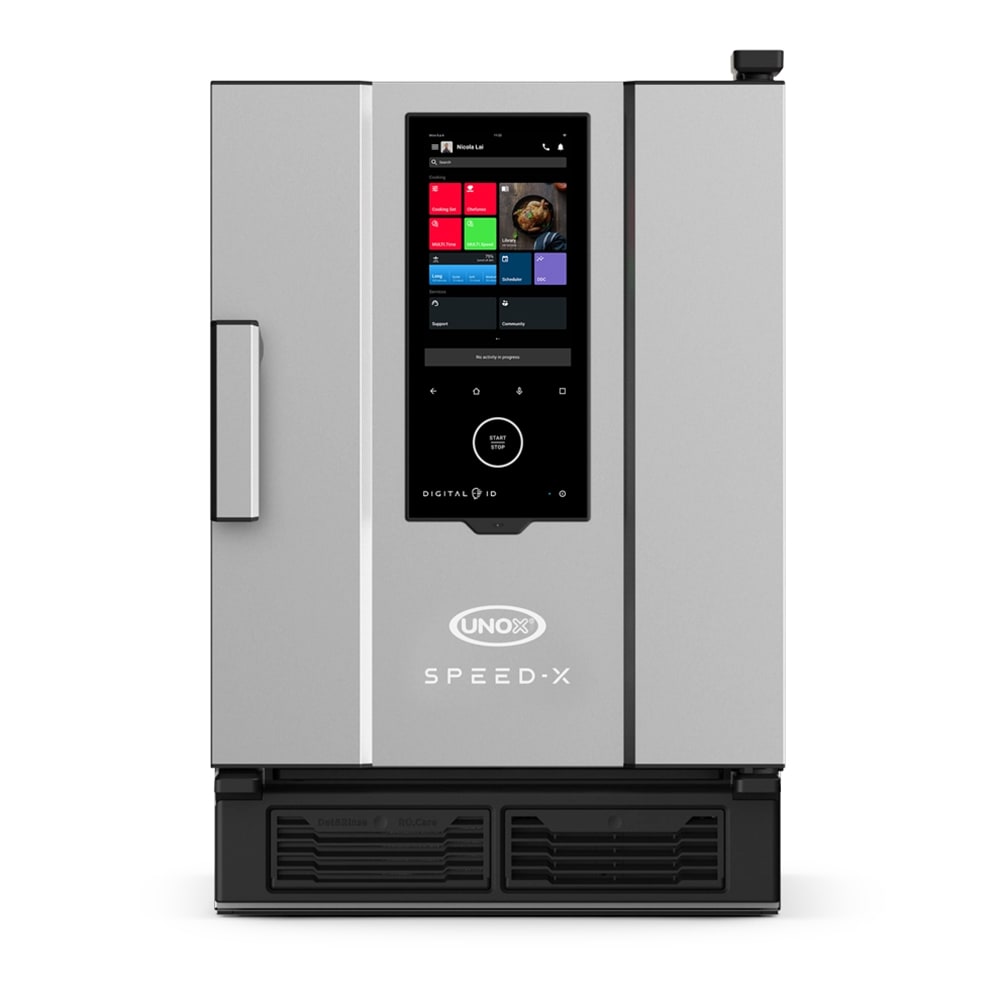

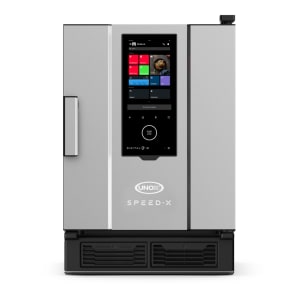

Unox XAPA-0523-SXRS SPEED-X™ Digital.ID™ Half Size Combi Oven - Boiler Based, 208v/1ph

The Unox XAPA-0523-SXRS SPEED-X™ Digital.ID™ half size combi oven has a self-washing combi speed oven, designed to expedite food item production with its combination of steam, convection, and microwave technologies. This electric unit accommodates up to (10) GN2/3 trays with a 1³/₈-inch pitch or (5) GN2/3 trays with a 2³/₄-inch pitch, enabling operators to cook up to four items simultaneously. Its HYPER.Speed technology merges microwaves, steam, and convection to significantly reduce cooking times, while SMART.Preheating automatically adjusts the preheating temperature and duration based on prior use. The oven features a stainless steel cooking chamber for durability and corrosion resistance, and it includes one SPEED.Plate TG780 and one RO.Care bottle XHC040 for enhanced usability.

Equipped with an advanced Digital.ID operating system, the Unox XAPA-0523-SXRS SPEED-X oven offers voice control functions through a built-in microphone, along with integrated Wi-Fi connectivity for easy updates and HACCP data management. Its adaptive features, such as CLIMA.Control and ADAPTIVE.Cooking™, ensure precise humidity control and repeatable results, while the integrated ROTOR.Klean™ system and SENSE.Klean feature simplify maintenance by suggesting optimal cleaning cycles. The compact design includes an all-stainless steel slam-shut door with a 16-inch capacitive control panel, five continuous fan speeds, and two TORNADO.Mode settings for efficient airflow. Designed for professional kitchens, this unit also incorporates RO.Care filtration to prevent limescale buildup, providing up to 1,300 liters of filtered water per cartridge.

Product Details

• Part of the SPEED-X Digital.ID series
• Electric boiler-based steam generator
• Holds up to (10) GN2/3 trays with 1³/₈-in. pitch
• Holds up to (5) GN2/3 trays with 2³/₄-in. pitch
• Stainless steel interior and exterior
• All-stainless steel slam-shut door
• 2 reversing fans with symmetrical heating elements
• Microwave insertion with stirring effect
• Temperature holding range: 86-500 degrees F
• Includes 1 SPEED.Plate TG780 and 1 RO.Care bottle XHC040

User Interface

• Digital.ID operating system
• Built-in Wi-Fi connectivity
• Voice control with integrated microphone
• CHEFUNOX and SPEEDUNOX preset libraries
• Cooking steps: up to 9
• SMART.Standby mode
• Manages up to 10 MULTI.Time processes simultaneously
• Manages up to 4 MULTI.Speed processes simultaneously
• CLIMA.Control for humidity adjustments
• CLIMALUX™ real-time humidity monitoring
• ADAPTIVE.Cooking™ for repeatable results
• Preheating up to 500 degrees F
• Stores 1,000+ programs

Dimensions & Utilities

• Overall dimensions: 21¹/₁₆ in. W x 29¹/₈ in. D x 31¹⁵/₁₆ in. H
• 208 V/60 Hz/1 ph
• Total power: 6.5 kW
• Required breaker size: 30 A
• Power cable requirements: 4 x AWG 10
• Plug and cord not included

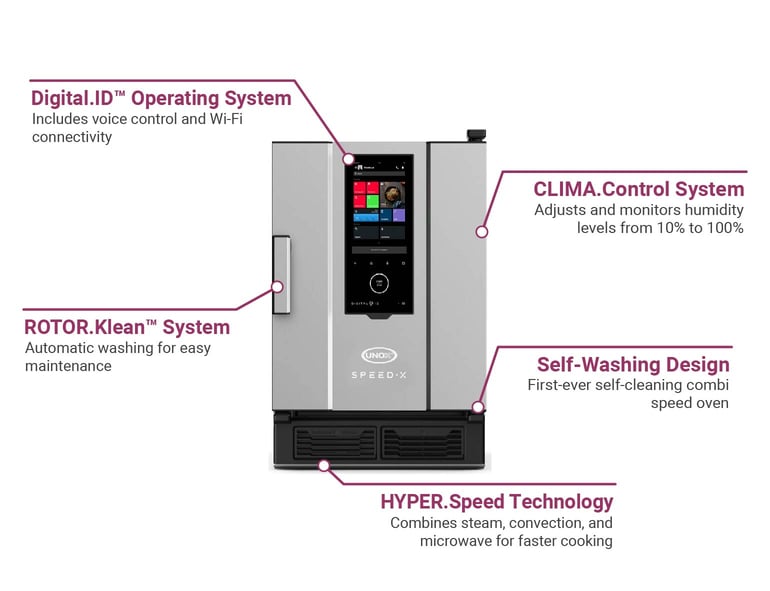

Product Features

*Unox XAPA-0523-SXRS is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

SPEED-X™ Digital.ID™ electric combi speed oven offers a combination of rapid cooking by blending the power of steam with the speed of microwaves. SPEED-X™ is the first ever self-washing combi speed oven. It has a capacity of 10 GN2/3 trays with 1 ³/8" pitch or 5 GN2/3 trays with 2 ³/4" pitch, cooking up to 4 items simultaneously, stainless steel cooking chamber, care water filtration system, (1 tray SPEED.Plate TG780 and 1 RO.Care bottle XHC040 included) (plug and cord not included)

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
