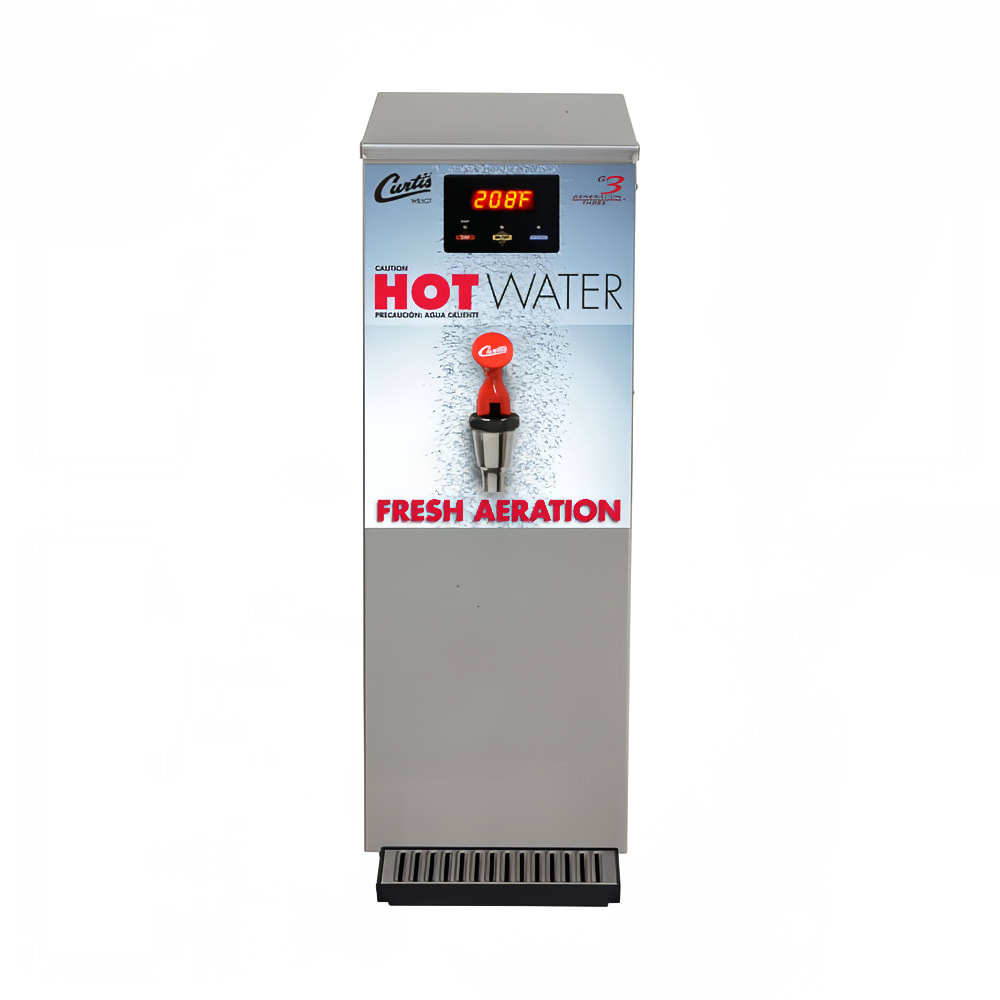

Curtis WB5GT63000 Low-volume Plumbed Hot Water Dispenser - 5 gal., 120-220v/1ph

For self-service of hot beverages and foods, the Curtis WB5GT63000 hot water dispenser can be used in the front of the house, or in the back of the house, it supplies hot water for cleaning jobs. Equipped with a 5-gallon tank, the unit can provide 4.5 to 15 gallons of water in an hour, and the operator can adjust the temperature between 140 and 210 degrees Fahrenheit to suit different applications. In the dispenser, aeration keeps the water moving so when it dispenses, it improves tea extraction and food flavor.

On the digital control panel, staff members can adjust the temperature and aeration levels. This Curtis WB5GT63000 low-volume hot water dispenser has color-coded buttons and indicator lights to streamline operation, while its large LED display is straightforward to read and shows the temperature of the water dispensing. To properly maintain the unit, on-board diagnostics sense the temperature and water level, and for servicing, components are accessible from the side.

Product Details

• 5-gal. capacity
• Produces 4.5-15 gal. per hr.
• Agitator pump for continuous, on-demand aeration that enhances tea extraction and food flavor
• Thermostatic controller
• Temperature range: 140-210 degrees F
• Digital controls for temperature and aeration
• Color-coded buttons and indicator lights
• Large LED display provides a readout of the water temperature
• Automatic refill system
• On-board diagnostics monitor temperature and water level
• Durable, corrosion-resistant stainless steel construction
• Components are accessible at the side for servicing
• Made with common components to streamline maintenance

Product Features

Dimensions & Utilities

• 9.25 in. W x 22 in. D x 24.5 in. H
• 12.5/22.7 A, 1500/5000 W
• 120, 220 V/50-60 Hz/1 ph

*Curtis WB5GT63000 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Hot Water Dispenser, electric with aerator, digital, 5 gallons capacity, 4-1/2 to 15 gallons per hour, 5 gallon tank volume, automatic refill, large LED display, 140“-210“F temperature range, heavy gauge stainless steel, 120/220v/50/60/1-ph, 1500/5000 watts, 12.5/22.7 amps, 1 GPM, (2) 3W+G, 20-90 psi, 1/4" flare fitting, ETL, cETLus

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor Digital Control Board; 2-year Parts & 1-year Labor Electrical Component

Curtis WB5GT63000 Specifications

Documents

Spec Sheet

Warranty
