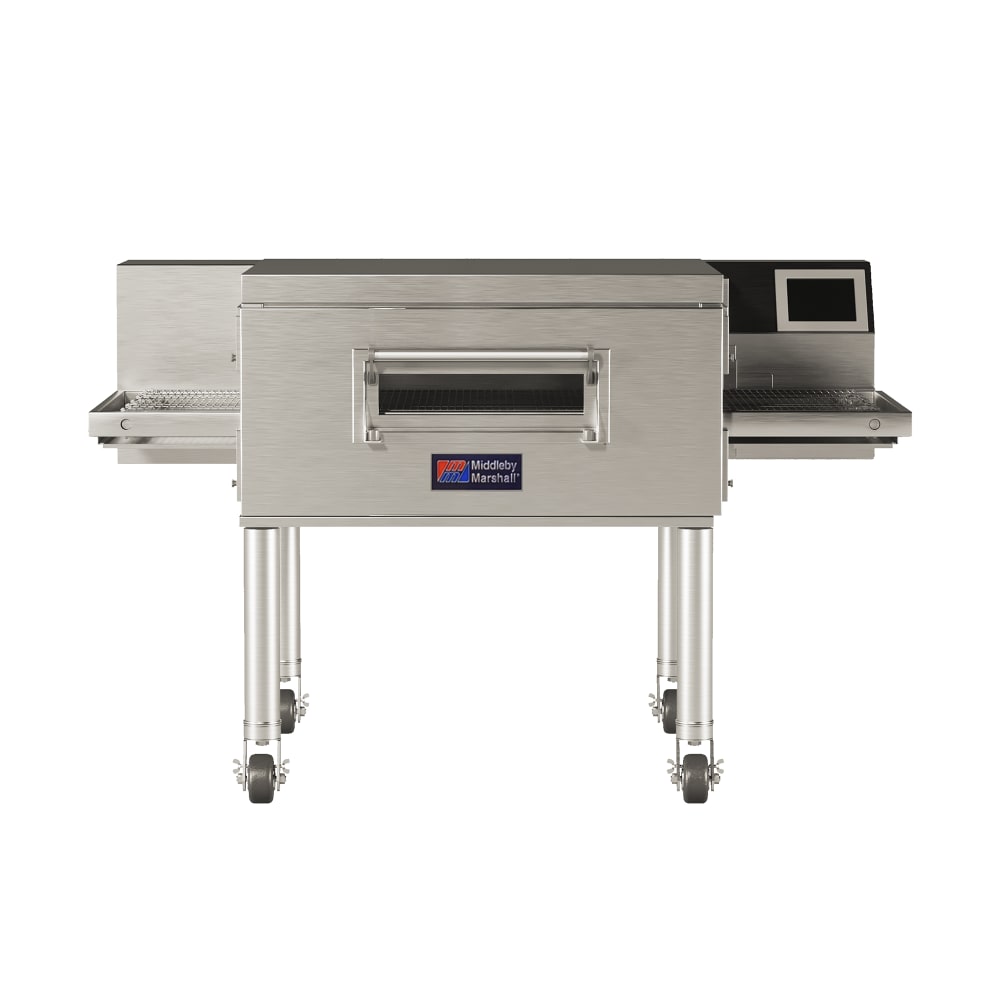

Middleby Marshall PS638E-1 65" Electric Impingement Conveyor Oven - 240v/3ph
Typically ships in 4 - 6 weeks
Retail Price: $34,871.00
$26,153.00 /Each
Selected Voltage: 240V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Middleby Marshall PS638E-1 Description
For lasting industrial strength in commercial kitchens, the Middleby Marshall PS638E-1 electric impingement conveyor oven's top, sides, interior, and front are constructed of stainless steel. Its exterior is cool to the touch to reduce the risk of injury and establish a cooler back-of-house environment. It has a 71/10-square-foot baking area and holds temperatures between 325 and 600 degrees Fahrenheit—great for cooking pizzas, flatbreads, and sandwiches. Operators can remove its folding conveyor belt, crumb pans, air fingers, and end panels for thorough cleaning.
To reduce energy consumption automatically, the Middleby Marshall PS638E-1 impingement oven uses a unique Energy Management System, which is equipped with an energy eye sensor to detect when food is in the oven. If the oven is empty, the unit goes into its energy saving mode. Its control compartment is stored behind cabinet doors for easy access while remaining unobtrusive. To optimize cooking, users have full control of its air flow, air movement, time, and temperature settings—offering a 30 percent faster bake time compared to standard conveyor ovens. This single-deck unit measures 651/4 inches wide by 461/4 inches deep by 42 inches high and requires a hood vent for installation.
Product Details
- Featured in the WOW!™ Impingement PLUS! series
- 71/10-sq.-ft. baking area
- 38-in. wide heating zone
- Single deck
- Low profile with dual air return
- Stainless steel front, sides, top, and interior
- Exterior is cool to the touch
- Energy-efficient electronic control
- Automatic energy eye reduces energy consumption when oven is empty
- Cooks 30% faster than standard conveyor ovens
- Control panel enables users to adjust top and bottom air flow, time, and temperature settings
- Operating temperature: 325-600 degrees F
- Energy Management System (EMS)
- Cabinet doors provide control compartment access
- Operating temperature: 325-600 deg. F
- Adjustable bake time ranges from 30 seconds to 13 minutes
- Removable crumb pans, air fingers, folding conveyor belt assembly, and end panels
- Mounted on casters and 171/2-in. legs
- Requires ventilation hood (sold separately)
Dimensions & Utilities
- Conveyor belt: 651/4 in. W x 26 in. D
- Overall: 651/4 in. W x 461/4 in. D x 421/2 in. H
- 54 A, 22 kW
- 240 V/50/60 Hz/3 ph, includes 6-ft. cord with NEMA L6-20P plug

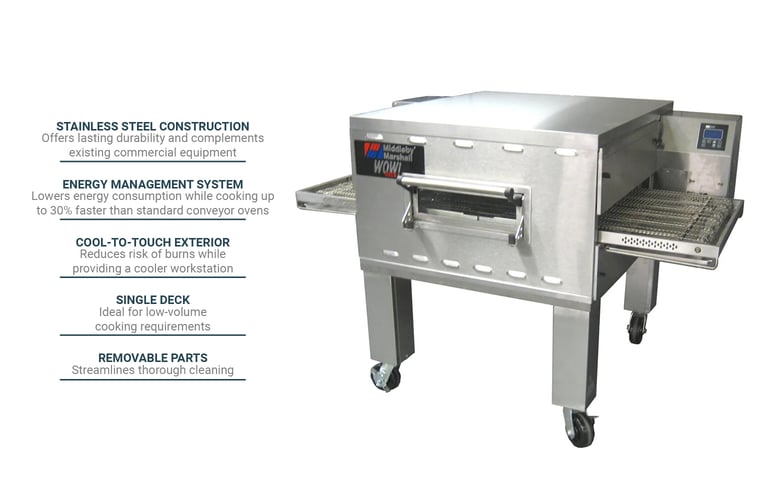

Product Features
*Free shipping on Middleby Marshall PS638E-1 within the 48 contiguous states.
From The Manufacturer
Impingement PLUS Conveyor Oven, electric (240V), single deck, 38" long cooking chamber, 26" wide standard single belt, electronic control, 30 seconds -13 minute time range, 325°-600°F operating temperature range, front loading window, includes: top, legs, casters & base, stainless steel front, sides, top & interior, cETLus Listed, ETL-Sanitation, CE (63 Amps, 50/60 Hz, 3-ph, 22,000 Watts)
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS638E-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 65.25 |
| Belt Width (in) | 26 |
| Controls | Touch Screen |
| Heating Style | Impingement |
| Heat | Electric |
| Installation Type | Floor Model |
| kW | 22 |
| Hertz | 60 |
| Maximum Pizza Diameter | 26" |
| Phase | 3 |
| Rating | Best |
| Size | Single |
| Series | WOW! |
| Product Type | Cooking Equipment |
| Product | Conveyor Ovens |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor |
| Weight | 820.00 |
