Middleby Marshall PS520G-4 20" Gas Countertop Conveyor Oven - Liquid Propane
Retail Price: $14,368.50
$10,776.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Middleby Marshall PS520G-4 Description

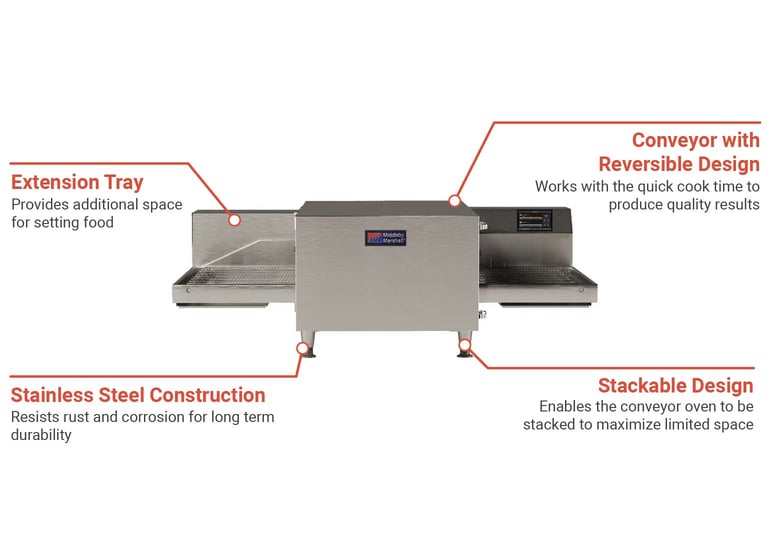

The Middleby Marshall PS520G-4 gas countertop conveyor oven’s front, sides, top, and interior are made of stainless steel for rust and corrosion resistance and durability. It is powered by liquid propane and must be placed under a hood to safely operate. The conveyor oven measures 534/5 inches wide by 371/2 inches deep by 211/10 inches high. It is supported by four legs for stability.
The Middleby Marshall PS520G-4 gas countertop conveyor oven’s cooking chamber is 20 inches long and has an 18-inch-wide conveyor belt. The conveyor belt's bake time and speed are digitally controlled for precise results. The belt can run either from left to right or right to left. It features a 12-inch extension tray for additional space. The oven uses a single-speed blower motor to quickly heat food.
Product Details
- Countertop conveyor oven with a single deck
- Stackable design up to 3 high (requires stacking kits)
- Powered by liquid propane
- 20-in.-L cooking chamber
- 18-in.-W conveyor belt
- Digital temperature and speed controllers
- Bake time and conveyor speed are microprocessor-controlled
- Time range: 30 sec. to 121/2 min.
- Reversible conveyor direction
- Left or right feed
- 12 in. extension tray
- Single-speed blower motors
- Stainless steel front, sides, top, and interior
- Easily accessible control compartment
- 4 in. legs
Dimensions & Utilities
- 534/5 in. W x 371/2 in. D x 211/10 in. H
- 15 A, 40,000 BTUs
- 208-240V, 50/60 Hz, 1 ph, NEMA L6-20 plug with 6 ft. cord
Product Features
*Free shipping on Middleby Marshall PS520G-4 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, gas, single deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal, NEMA L6-20), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (208-240 V, 50/60 Hz, 1-ph, 15 Amps, 40,000 BTUs)
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS520G-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Gas Type | LP |
| Heat | Gas |
| Heating Style | Impingement |
| Hertz | 50/60 |
| Installation Type | Countertop |
| Maximum Pizza Diameter | 18" |
| NEMA | L6-20P |
| Overall Length (in) | 53.82 |
| Overall Width (in) | 37.46 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PS Series |
| Size | Single |
| Special Features | Reversible Conveyor Direction |
| Total BTU | 40000 |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Weight | 325.00 |
