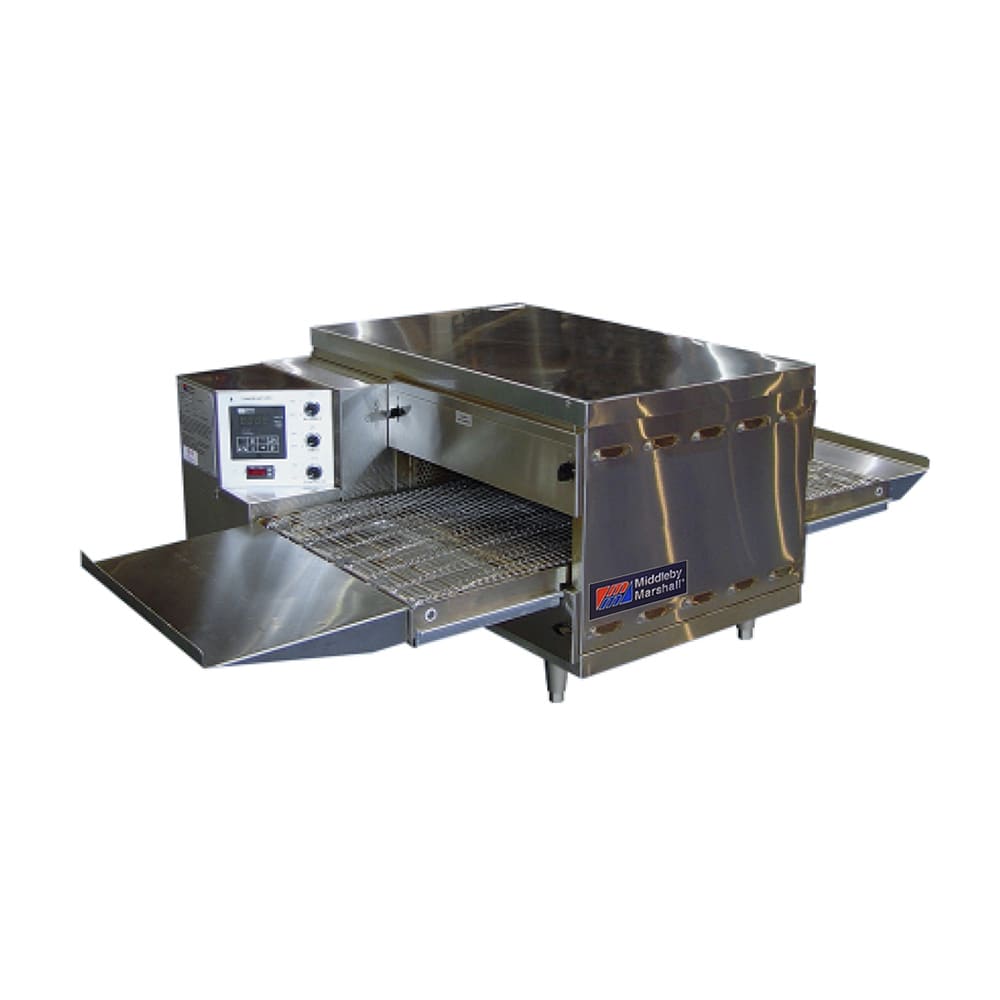

Middleby Marshall PS520G-3 20" Gas Triple Countertop Conveyor Oven - Liquid Propane
Retail Price: $41,850.00
$31,387.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Middleby Marshall PS520G-3 Description
The Middleby Marshall PS520G-3 conveyor oven has three stacked decks, each with a reversible conveyor belt 42 inches long. Great for pizzerias and bagel shops quickly preparing medium-sized menu items, the belts are 18 inches wide.
The Middleby Marshall PS520G-3 conveyor oven is powered by LP gas and has a BTU capacity of 120,000. To change the bake time or conveyor speed, users can adjust the microprocessor control settings. Once product has passed through the baking chamber, the conveyors will release it onto 12-inch exit trays.

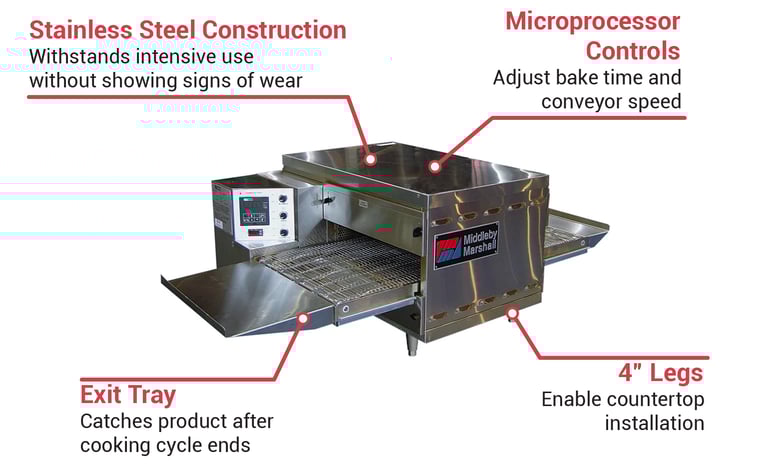

Product Details
- For countertop use
- 3 stacked decks (stacking kits sold separately)
- Direct gas fired
- Cooking chambers are 20 in. long
- Belt speed and bake time operated by microprocessor controls
- Conveyor belt direction is reversible
- 12-in. exit trays
- Exterior sides, front, top, and interior are made of durable stainless steel
- 4-in. legs
- 120,000 BTU
Dimensions & Utilities
- Belts: 42 in. L x 18 in. W
- Overall: 534/5 in. W x 371/2 in. D x 211/10 in. H
- Powered by LP gas
- 15 A
- (3) 120 V/50/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Free shipping on Middleby Marshall PS520G-3 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, gas, triple deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal, NEMA L6-20), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (120 V, 50/60 Hz, 1-ph, 15 Amps, 40,000 BTUs)
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS520G-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Gas Type | LP |
| Heat | Gas |
| Heating Style | Impingement |
| Hertz | 50/60 |
| Installation Type | Countertop |
| Maximum Pizza Diameter | 18" |
| NEMA | 5-15P |
| Overall Length (in) | 53.82 |
| Overall Width (in) | 37.46 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | PS Series |
| Size | Triple |
| Special Features | Reversible Conveyor Direction |
| Total BTU | 120000 |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Weight | 975.00 |
