Middleby Marshall PS520G-2 20" Gas Double Countertop Conveyor Oven - Natural Gas
Retail Price: $27,900.00
$20,925.00 /Each
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

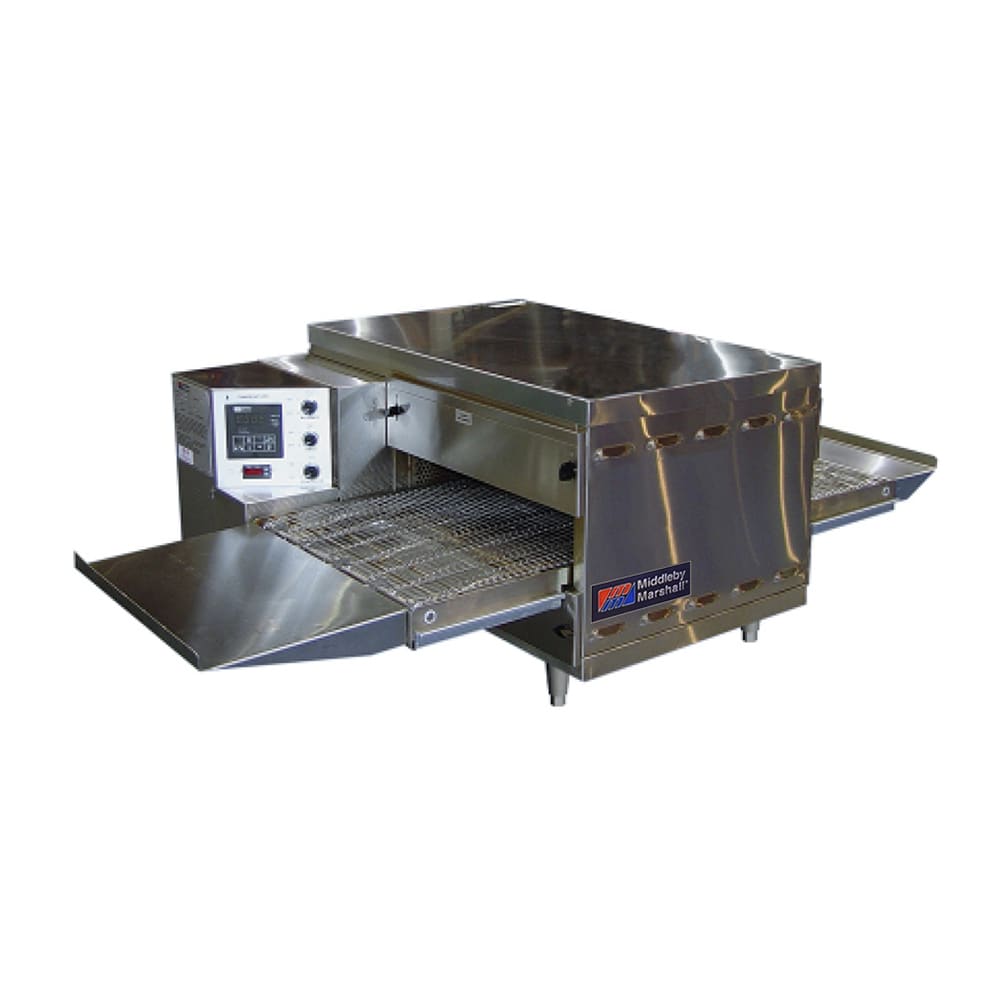

Middleby Marshall PS520G-2 Description
To cook food products, the Middleby Marshall PS520G-2 gas-powered conveyor oven uses natural gas. It produces 80,000 BTU—plenty of heat to cook most common food products. Providing additional production to help establishments keep up with customer traffic, this double-decked unit is suitable for medium-volume operations. Mounted on 4-inch legs, this unit should be installed on a countertop.
The Middleby Marshall PS520G-2 conveyor oven has microprocessor controls so users can adjust its settings. Speeding up or slowing down the conveyor adjusts the bake time, and its direction can also be reversed when needed. After product has been cooked, it lands on a 12-inch exit tray.

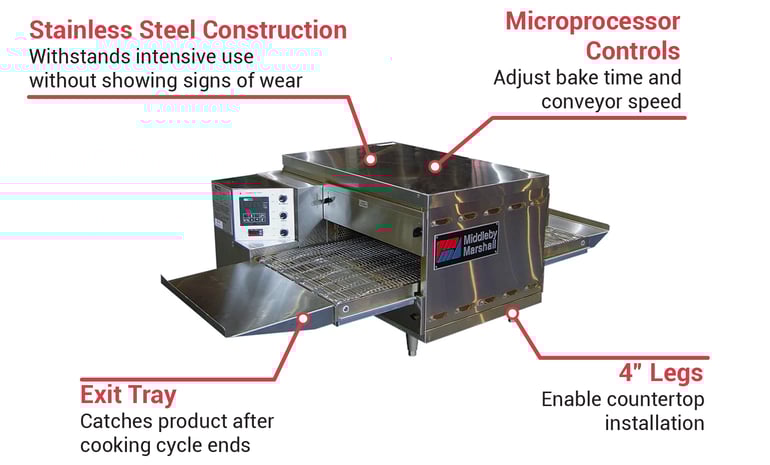

Product Details
- Countertop design
- Double decks
- Direct gas fired
- 20-in.-long cooking chamber
- Belt speed and bake time can be adjusted with microprocessor controls
- Reversible conveyor belt direction
- 12-in. exit tray
- Sides, top, front, and interior are constructed of durable stainless steel
- 4-in. legs
- 80,000 BTU
Dimensions & Utilities
- Belts: 42 in. L x 18 in. W
- Overall: 534/5 in. W x 371/2 in. D x 211/10 in. H
- Powered by natural gas
- 15 A
- (2) 120 V/50/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Product Features
*Free shipping on Middleby Marshall PS520G-2 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, gas, double deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal, NEMA L6-20), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (120 V, 50/60 Hz, 1-ph, 15 Amps, 40,000 BTUs)
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS520G-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Gas Type | NG |
| Heating Style | Impingement |
| Heat | Gas |
| Installation Type | Countertop |
| Hertz | 50/60 |
| Maximum Pizza Diameter | 18" |
| NEMA | 5-15P |
| Overall Width (in) | 37.46 |
| Overall Length (in) | 53.82 |
| Phase | 1 |
| Rating | Best |
| Size | Double |
| Series | PS Series |
| Special Features | Reversible Conveyor Direction |
| Total BTU | 80000 |
| Product Type | Cooking Equipment |
| Product | Conveyor Ovens |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Weight | 650.00 |
