Middleby Marshall PS520E-2 20" Electric Double Countertop Conveyor Oven - 208v/1ph
Retail Price: $27,900.00
$20,925.00 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Middleby Marshall PS520E-2 Description

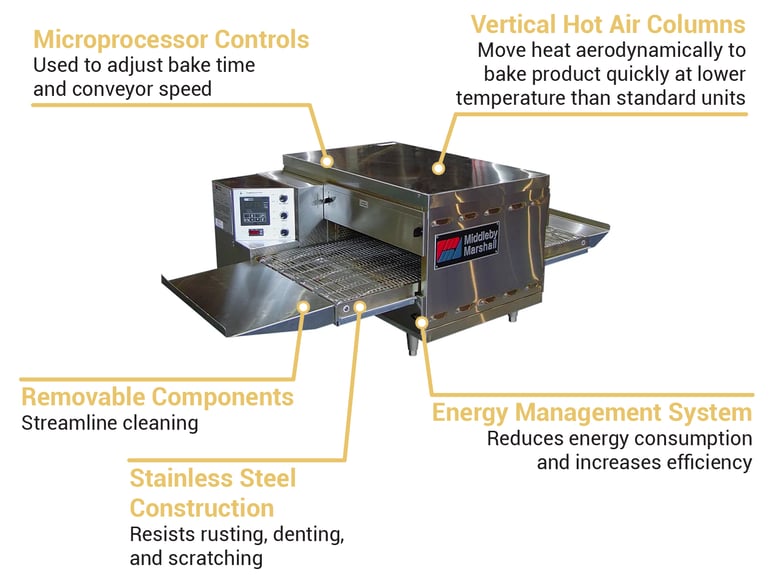

Great for baking pizzas and pastas, the Middleby Marshall PS520E-2 electric conveyor oven has two separate decks. Each deck can cook a different product in its own 20-inch-long cooking chamber with 42-inch by 18-inch belts. Belt direction can be reversed depending on the kitchen layout, while speed and bake time are adjustable with microprocessor controls. Vertical columns of hot air move in this unit aerodynamically, speeding up baking without extremely high temperatures.
This Middleby Marshall PS520E-2 double countertop conveyor oven has an energy management system that saves energy and improves cooking efficiency. It also keeps the oven exterior cool to the touch to reduce the risk of burns. Most of the unit is made of durable, swiftly cleaned stainless steel and some parts are removable to streamline cleaning. When servicing is required, the control compartment is accessible.
Product Details
- Countertop model
- Double deck
- (2) 20-in.-long cooking chambers
- Each deck has a conveyor belt with reversible direction
- Vertical hot air columns
- Microprocessor controls for bake time and conveyor speed
- Maximum temperature: 600 degrees F
- Bake time range: 1-12 min.
- Energy management system is designed to transfer heat efficiently without losing lots of heat
- Oven exterior remains cool to the touch
- 12-in. exit trays
- Heavy-duty, stainless steel interior, front, top, and sides
- Control compartment is accessible when servicing is needed
- Removable belt assembly, end panels, crumb pans, and exit trays streamline cleaning
- Mounted on 4-in. legs
- Should be operated under a ventilation hood
Dimensions & Utilities
- Conveyor belts: 42 in. L x 18 in. W
- Overall: 534/5 in. W x 371/2 in. D x 211/10 in. H
- 39.9 A, 8.3 kW (per deck)
- (2) 208 V/50-60 Hz/1 ph
Product Features
*Free shipping on Middleby Marshall PS520E-2 within the 48 contiguous states.
From The Manufacturer
Countertop conveyor oven, electric, double deck, stackable design up to 3 high (requires stacking kits), 20" long cooking chamber, 18" wide standard single belt (per deck), discrete digital temperature and speed controllers, controllable bake/time conveyor speed, 30 seconds to 12 1/2 minutes time range, 200°-600°F operating temperature range, reversible conveyor direction, left to right feed, single-speed blower motors, includes: legs & optional casters, plug and cord (6 ft. nominal), stainless steel front, sides, top and interior, cETLus, ETL-Sanitation, CE (208 V, 50/60 Hz, 1-ph, 50 Amps, 8,300 Watts)
*Image may not depict product color, inclusions or accessories.
Middleby Marshall PS520E-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Middleby Marshall |
| Belt Length (in) | 42 |
| Belt Width (in) | 18 |
| Controls | Digital |
| Heating Style | Impingement |
| Heat | Electric |
| Installation Type | Countertop |
| kW | 16.6 |
| Hertz | 50/60 |
| Maximum Pizza Diameter | 18" |
| NEMA | L6-20P |
| Overall Width (in) | 37.46 |
| Overall Length (in) | 53.82 |
| Phase | 1 |
| Rating | Best |
| Size | Double |
| Series | PS Series |
| Special Features | Reversible Conveyor Direction |
| Product Type | Cooking Equipment |
| Product | Conveyor Ovens |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Weight | 650.00 |
