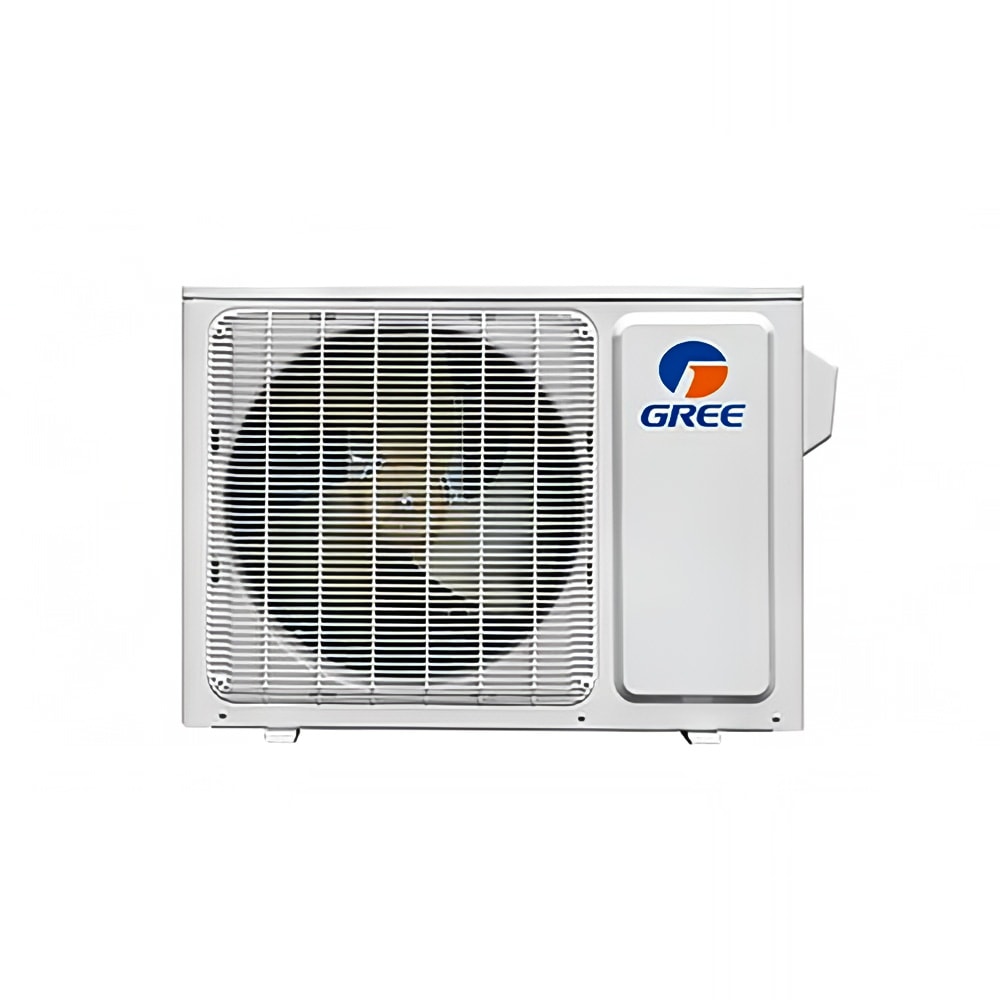

Gree 4LIV36HP230V1AO Livo GEN4 Outdoor Unit Heating and Cooling Systems - 33,600 BTU/hr, 208-230v/1ph

This Gree 958-LIVV36HP230V1AO Livo GEN3 outdoor air conditioning unit provides flexibility to ductless heating and cooling because it can be mounted on the ground, a roof, or a wall, and is able to reach its indoor counterpart, the Gree 4LIV36HP230V1AH, regardless of what room it's installed in. It's equipped with two rows of coils coated with acrylic resin and measuring 1⁵⁄₈ inches thick. This unit and its indoor match are sold separately, and both are required to be fully functional.

Product Details

• Outdoor condenser unit
• 2 rows of 1⁵⁄₈-in. thick coils
• Acrylic resin coil coating
• Multiple fan speeds
• Uses R410A refrigerant
• Cooling ambient temperature range: -4 to 115 degrees F
• Heating ambient temperature range: -13 to 75 degrees F
• Cooling capacity: 33,600 BTU
• Heating capacity: 34,600 BTU
• Must be installed with LIVV36HP230V1AHW indoor air conditioner to operate (sold separately)

Product Features

Dimensions & Utilities

• 39³⁄₈ in. W x 14⁹⁄₁₆ in. D x 31¹⁄₈ in. H
• 18-19 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV36HP230V1AO within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone outdoor unit, ductless, 33,600 BTU/h cooling capacity, 34,600 BTU/h heating capacity, 39 3/8""W x 16 13/16"D x 29 3/8"H, intelligent preheating, Aluminum Fin-Copper/Acrylic Resin Protection coil, Gree G-10/2-Stage Inverter Compressor, coated with weather-resistant paint durable steel finish unit cabinets, -4°F - 115°F cooling range, -13°F - 75°F heating range, 62 dB(A) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

5-year Limited Parts; 7-year Compressor; 1-year Controls
