Gree 4LIV36HP230V1AH Livo GEN4 Indoor Unit Heating and Cooling Systems w/ Wifi - 33,600 BTU/hr, 208-230v/1ph

As one-half of the Livo GEN3 mini-split system, the Gree 4LIV36HP230V1AH indoor air conditioning unit is made to be used with the Gree 4LIV36HP230V1AO outdoor condenser. It's a high-wall unit, only needing a 6-inch clearing at its top and sides and a 72-inch clearance between its bottom and the floor. To prevent clashing with existing furniture and decor, it's white with a clean, modern appearance. Lights on the front of the unit display the temperature and current settings.

The Gree 4LIV36HP230V1AH indoor air conditioner has WiFi capabilities, enabling users to connect their unit to a smartphone application. I-Feel technology measures the current temperature at the remote rather than the unit and adjusts accordingly for improved comfort. There's a variety of modes available on the remote including heat, cool, dry, fan, and auto to help customize the indoor unit's settings. The matching outdoor unit is required for this unit to work and is sold separately.

Product Details

• Indoor fan portion of the mini-split system
• Removes moisture from the room with dry mode
• Settings displayed on the unit, remote, and app
• Sleep mode saves nighttime settings
• I-Feel feature measures temperatures at the remote
• Self-diagnosis codes
• WiFi compatible
• Cooling ambient temperature range: -4 to 115 degrees F
• Heating ambient temperature range: -13 to 75 degrees F
• Cooling capacity: 33,600 BTU
• Heating capacity: 34,600 BTU
• Must be paired with LIVV36HP230V1AO outdoor air conditioner to operate (sold separately)

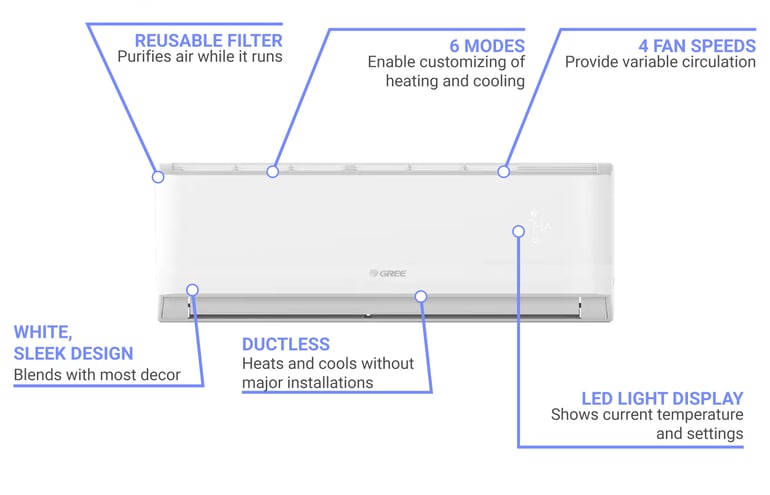

Product Features

Dimensions & Utilities

• 53¹⁄₈ in. W x 10 in. D x 12³⁄₄ in. H
• 18-19 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV36HP230V1AH within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone indoor unit, ductless, Built-In Wi-Fi, 33,600 BTU/h cooling capacity, 34,600 BTU/h heating capacity, 53 3/16""W x 9 15/16"D x 12 13/16"H, I-Feel technology, multiple fan speeds, auto-clean & sleep function, dehumidification, automatic voltage adaption, low voltage start-up, self-diagnosis, swing louver control, LED display settings, privacy lock mode, Aluminum Fin-Copper/Acrylic Resin Protection coil, -4°F - 115°F cooling range, -13°F - 75°F heating range, 471 - 912 CFM, 37 - 56 dB(a) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

Gree 4LIV36HP230V1AH Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
