Gree 4LIV30HP230V1AH Livo GEN4 Indoor Unit Heating and Cooling Systems w/ Wifi - 30,000 BTU/hr, 208-230v/1ph

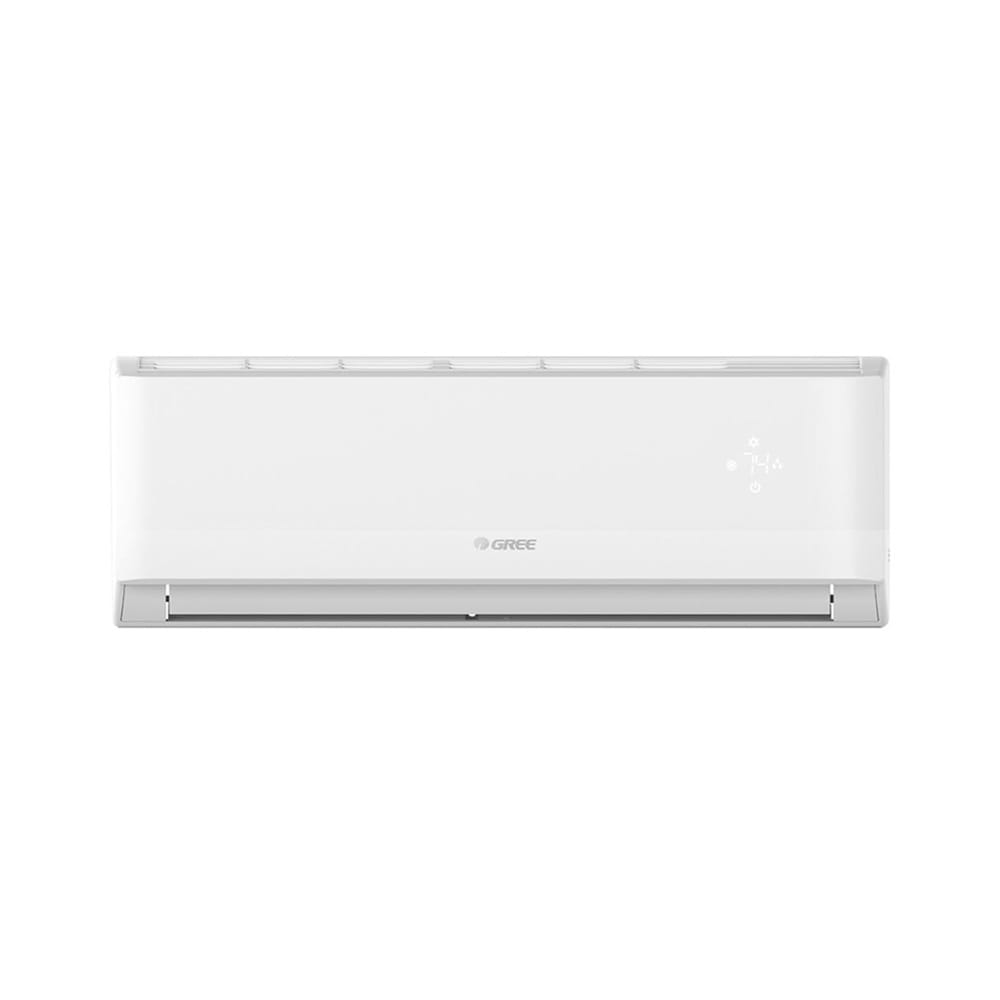

The Gree 4LIV30HP230V1AH Livo GEN3 indoor air conditioner is one half of a ductless mini-split system compatible with the Gree 4LIV30HP230V1AO outdoor unit. It measures 53¹⁄₈ inches wide by 10 inches deep by 12³⁄₄ inches tall and is designed to be mounted high on a wall, only requiring a 6-inch clearing between its top and the ceiling. Other clearance requirements include a 6-inch space on either side and at least 72 inches between the bottom and the floor. To prevent clashing with existing decor, it has a sleek, white appearance.

The remote of the Gree 4LIV30HP230V1AH enables users to cycle through heat, cool, dry, auto, and fan settings while offering a sleep mode that stores nighttime-specific settings. I-Feel technology measures temperatures at the remote rather than the unit. The fans inside the indoor portion of the mini-split never stop moving to maintain temperatures by circulating the air and to reduce energy waste from constant starting and stopping.

Product Details

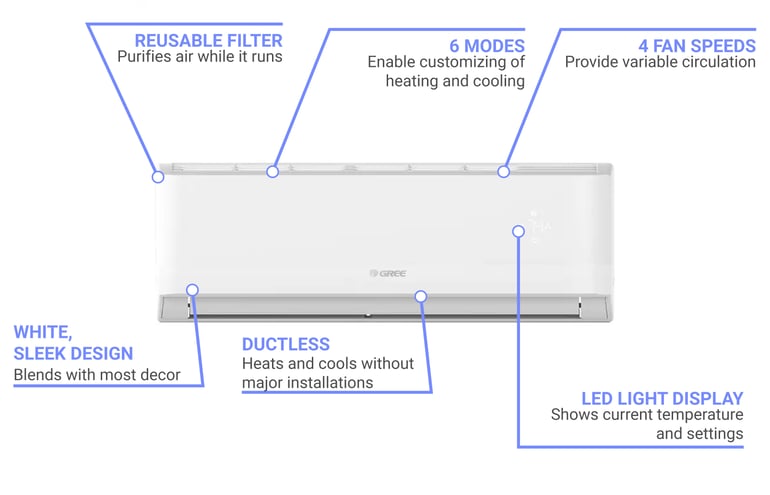

• Indoor unit with multiple fan speeds
• Dehumidification with dry mode
• LED display on unit and remote
• Nighttime-specific settings with sleep mode
• Measures temperature at the remote with I-Feel technology
• Unit self-diagnoses and codes errors
• WiFi included
• Cooling ambient temperature range: -4 to 115 degrees F
• Heating ambient temperature range: -13 to 75 degrees F
• Cooling capacity: 30,000 BTU
• Heating capacity: 30,000 BTU
• Must be paired with LIVV30HP230V1AO outdoor air conditioner to operate (sold separately)

Product Features

Dimensions & Utilities

• 53¹⁄₈ in. W x 10 in. D x 12³⁄₄ in. H
• 15-16.5 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV30HP230V1AH within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone indoor unit, ductless, Built-In Wi-Fi, 30,000 BTU/h cooling & heating capacity, 53 3/16""W x 9 15/16"D x 12 13/16"H, I-Feel Technology, multiple fan speeds, auto-clean & sleep function, dehumidification, automatic voltage adaption, low voltage start-up, self-diagnosis, swing louver control, LED display settings, privacy lock mode, Aluminum Fin-Copper/Acrylic Resin Protection coil, -4°F - 115°F cooling range, -13°F - 75°F heating range, 471 - 912 CFM, 37 - 56 dB(a) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

5-year Limited Parts; 7-year Compressor; 1-year Controls

Gree 4LIV30HP230V1AH Specifications
