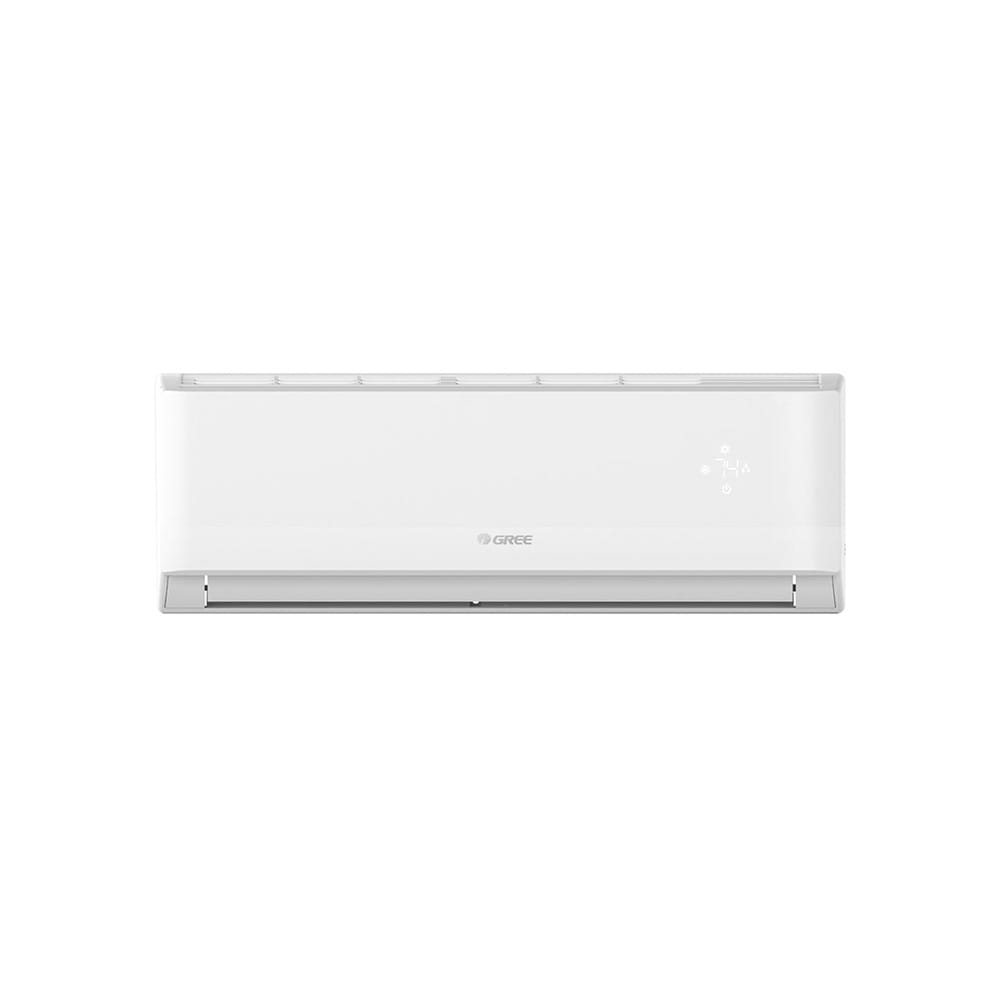

Gree 4LIV24HP230V1AH Livo GEN4 Indoor Unit Heating and Cooling Systems w/ Wifi - 22,000 BTU/hr, 208-230v/1ph

The Gree 4LIV24HP230V1AH Livo GEN3 indoor air conditioner measures 42¹⁄₄ inches wide by 9⁵⁄₈ inches deep and 12³⁄₄ inches tall with a sleek white design that won't detract from existing decor. Made to be mounted high on a wall, it requires a 6-inch clearance between it and the ceiling as well as on both sides with a 72-inch clearance between its bottom and the floor. It can be controlled with the included remote or through an app when connected to WiFi. If the remote becomes lost or the app isn't working, a limited auxiliary control panel is installed on the unit.

An assortment of unique features is available for improved comfort control. The Gree 4LIV24HP230V1AH indoor air conditioning unit has a dry mode to reduce humidity, a freeze guard mode that protects against potential water pipe freezing, and a preheating function that prevents chilly air from being blown into a room during startup. I-Feel technology measures room temperatures using the remote instead of the unit and adjusts accordingly, while the sleep mode enables users to save settings specific for nighttime.

Product Details

• Indoor fan
• 4 different fan speeds
• Removes moisture with dry mode
• White LED display on unit can be turned on and off
• I-Feel feature measures temperatures at the remote
• Coded error messages
• WiFi compatible
• Cooling ambient temperature range: 0-115 degrees F
• Heating ambient temperature range: -4 to 75 degrees F
• Cooling capacity: 22,000 BTU
• Heating capacity: 24,000 BTU
• Requires LIVV24HP230V1AO outdoor air conditioner to operate (sold separately)

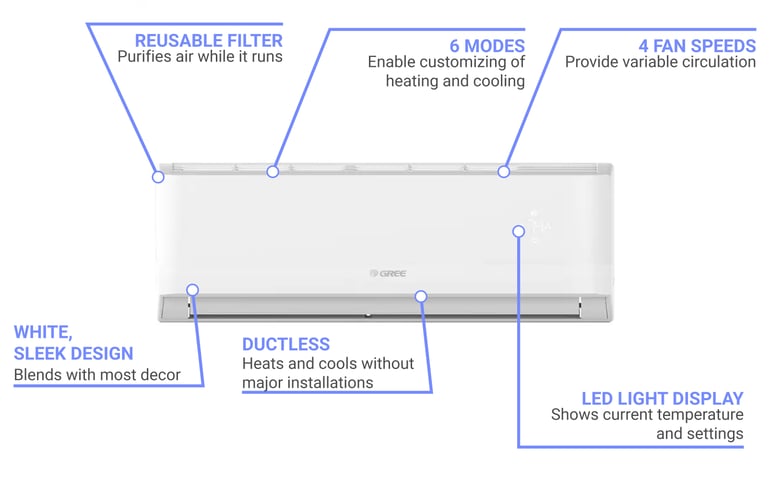

Product Features

Dimensions & Utilities

• 42¹⁄₄ in. W x 9⁵⁄₈ in. D x 12³⁄₄ in. H
• 10-11 A, 24
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV24HP230V1AH within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone indoor unit, ductless, Built-In Wi-Fi, 22,000 BTU/h cooling capacity, 24,000 BTU/h heating capacity, 42 7/16""W x 9 11/16"D x 13 1/8"H, I-Feel technology, multiple fan speeds, auto-clean & sleep function, dehumidification, automatic voltage adaption, low voltage start-up, self-diagnosis, swing louver control, LED display settings, privacy lock mode, Aluminum Fin-Copper/Acrylic Resin Protection coil, 0°F - 122°F cooling range, -13°F - 75°F heating range, 412 - 677 CFM, 36 - 51 dB(a) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

5-year Limited Parts; 7-year Compressor; 1-year Controls

Gree 4LIV24HP230V1AH Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Product Info

Brochure
