Gree 4LIV18HP230V1AO Livo GEN4 Outdoor Unit Heating and Cooling Systems - 17,600 BTU/hr, 208-230v/1ph

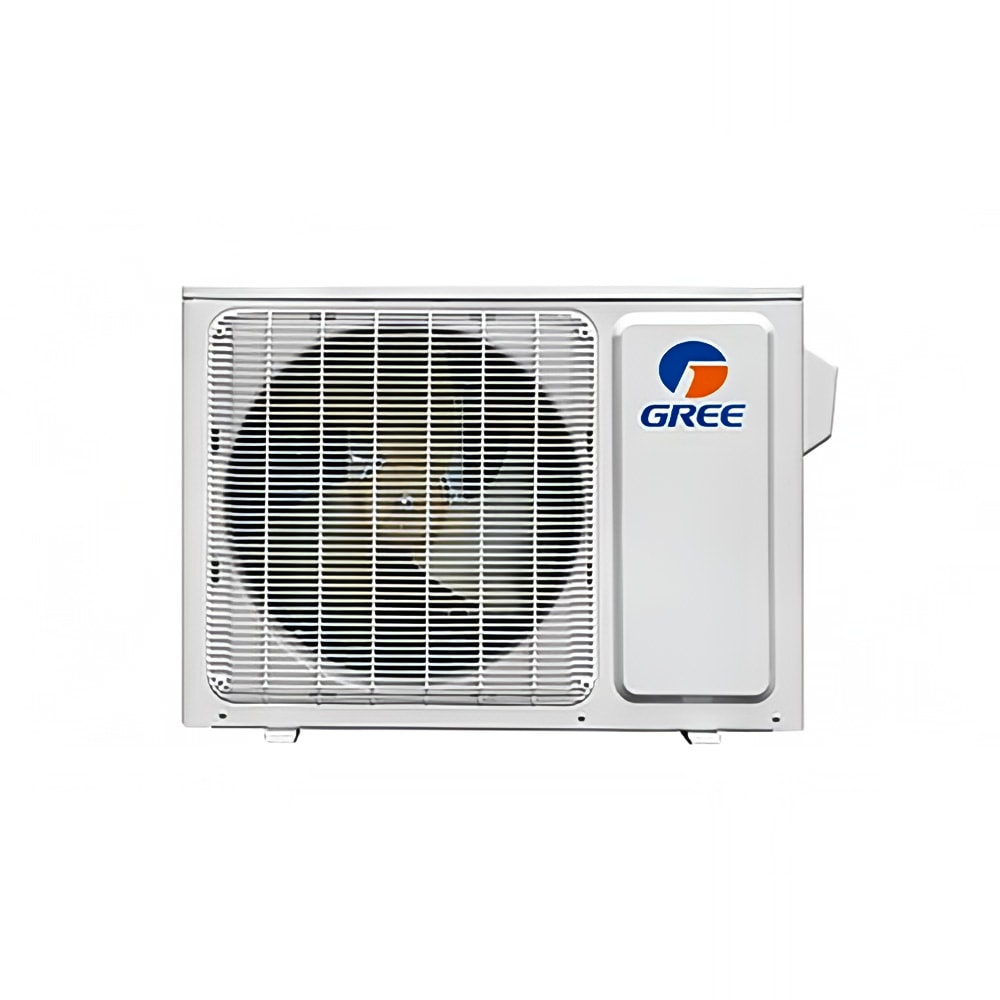

The Gree 4LIV18HP230V1AO Livo GEN3 outdoor air conditioning unit is the condenser portion of a mini-split air conditioning system. To provide ductless heating, it connects directly to the Gree 4LIV18HP230V1AH indoor air conditioner and can be mounted on the ground, a wall, or a roof. It measures 35³⁄₄ inches wide by 12¹⁄₄ inches deep by 25⁵⁄₈ inches high and has two rows of 1⁵⁄₈-inch-thick coils coated with an anti-corrosion acrylic resin.

Product Details

• Outdoor condensing unit
• 2 rows of acrylic resin-coated coils
• Small footprint
• Uses R410A refrigerant
• Cooling ambient temperature range: 0-115 degrees F
• Heating ambient temperature range: -4 to 75 degrees F
• Cooling capacity: 17,400 BTU
• Heating capacity: 18,000 BTU
• Requires LIVV18HP230V1AHW indoor air conditioner to operate (sold separately)

Product Features

Dimensions & Utilities

• 35³⁄₄ in. W x 12¹⁄₄ in. D x 25⁵⁄₈ in. H
• 10-10.5 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV18HP230V1AO within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone outdoor unit, ductless, 17,600 BTU/h cooling capacity, 19,100 BTU/h heating capacity, 37 1/8""W x 9 11/16"D x 13 1/8"H, intelligent preheating, automatic voltage, Aluminum Fin-Copper/Acrylic Resin Protection coil, Gree G-10/2-Stage Inverter Compressor, coated with weather-resistant paint durable steel finish unit cabinets, 0°F - 115°F cooling range, -13°F - 75°F heating range, 57 dB(A) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

5-year Limited Parts; 7-year Compressor; 1-year Controls

Gree 4LIV18HP230V1AO Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Installation Guide

Product Info

Brochure
