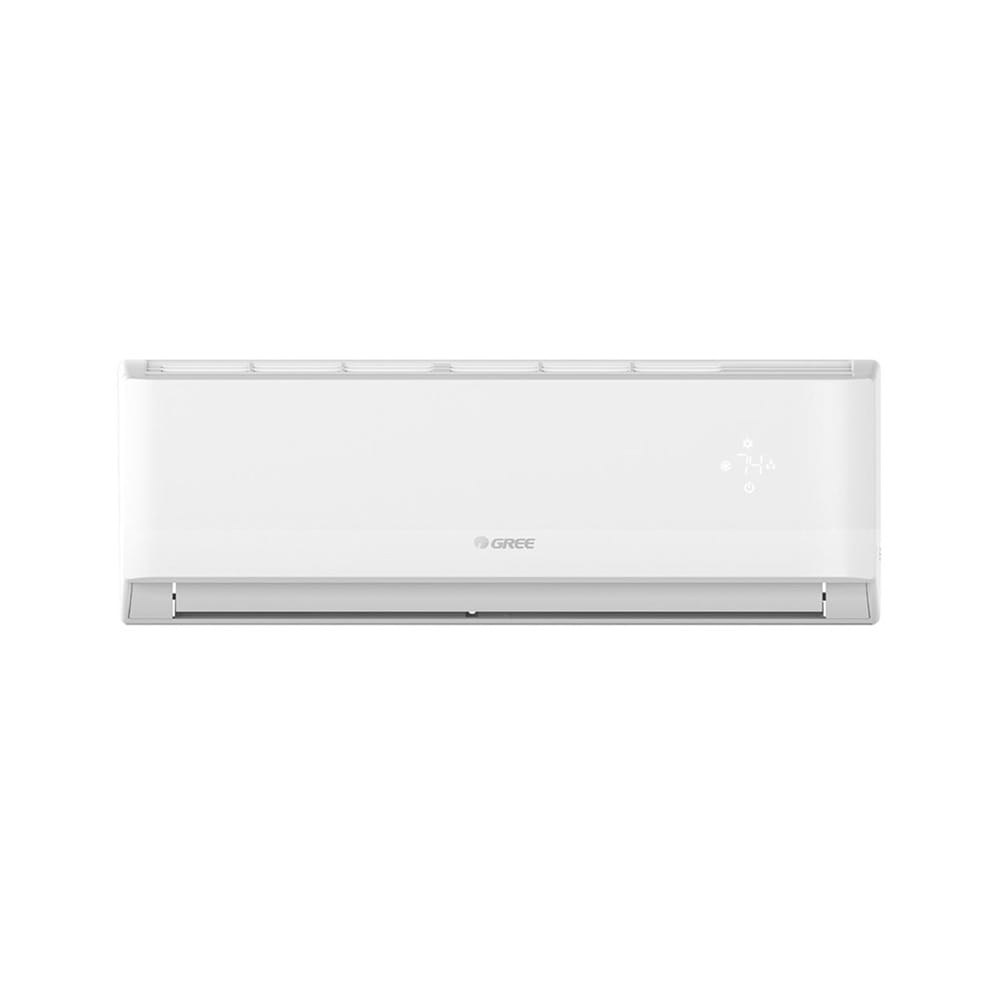

Gree 4LIV12HP230V1AH Livo GEN4 Indoor Unit Heating and Cooling Systems w/ Wifi - 12,000 BTU/hr, 208-230v/1ph

The Gree 4LIV12HP230V1AH indoor air conditioner is part of the Livo GEN3 series of Gree's mini-split HVAC units. It has a sleek white design that blends with most decors and is a ductless option for single room heating and cooling. To simplify temperature selection and other HVAC controls, this unit has WiFi capabilities, which enable the user to change settings from an app on their phone. When installing this indoor air conditioner, it must be attached at least 6 inches from the ceiling, 72 inches above the floor, with a 6-inch clearance on either side, and it requires the Gree 4LIV12HP230V1AO outdoor unit to be functional.

To ensure rooms are kept at the correct temperature, the Gree 4LIV12HP230V1AH air conditioner uses I-Feel technology and provides a temperature readout on the LED display remote. There are several modes available for different circumstances. The unit's sleep mode permits users to organize a configuration of settings specifically for nighttime, the dry mode helps increase moisture removal during particularly humid conditions, and the freeze guard mode ensures rooms don't get too cold to help prevent freezing water pipes.

Product Details

• Indoor unit
• Variable fan speeds
• Dry mode dehumidifies rooms
• LED display remote
• WiFi capabilities
• Sleep mode saves nighttime-specific settings
• I-Feel temperature measuring
• Self-diagnosis and code display
• Condensate drain removes moisture
• Cooling ambient temperature range: 0-115 degrees F
• Heating ambient temperature range: -4 to 75 degrees F
• Cooling capacity: 12,000 BTU
• Heating capacity: 13,000 BTU
• Requires LIVV12HP230V1AO outdoor air conditioner to operate (sold separately)

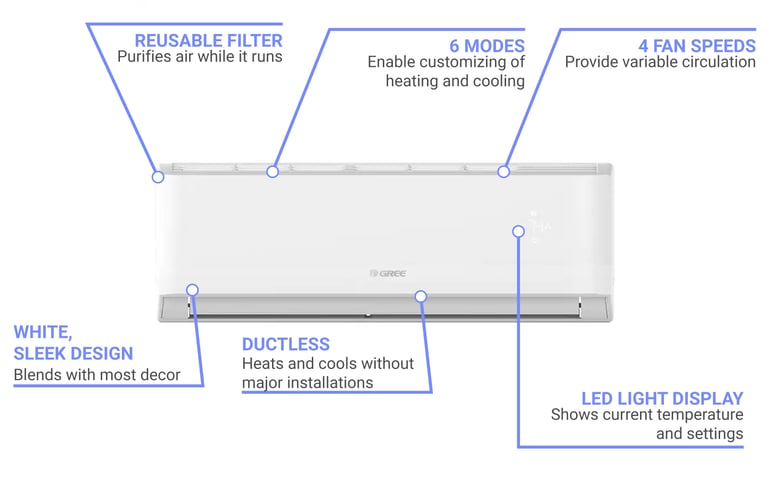

Product Features

Dimensions & Utilities

• 33¹⁄₄ in. W x 8³⁄₈ in. D x 11¹⁄₄ in. H
• 6.3-6.5 A
• 208-230 V/60 Hz/1 ph

*Free shipping on Gree 4LIV12HP230V1AH within the 48 contiguous states.

From The Manufacturer

Livo GEN4 Heating and Cooling Systems, mini-split single zone indoor unit, ductless, Built-In Wi-Fi, 12,000 BTU/h cooling & heating capacity, 32 7/8"W x 7 7/8"D x 10 7/8"H, I-Feel technology, multiple fan speeds, auto-clean & sleep function, dehumidification, automatic voltage adaption, low voltage start-up, self-diagnosis, swing louver control, LED display settings, privacy lock mode, Aluminum Fin-Copper/Acrylic Resin Protection coil, 0°F - 115°F cooling range, -13°F - 75°F heating range, 182 - 424 CFM, 27 - 47 dB(a) sound pressure level, R410A Refrigerant, 208-230v/60/1ph, AHRI Certified, ETL US Listed

*Image may not depict product color, inclusions or accessories.

5-year Limited Parts; 7-year Compressor; 1-year Controls
