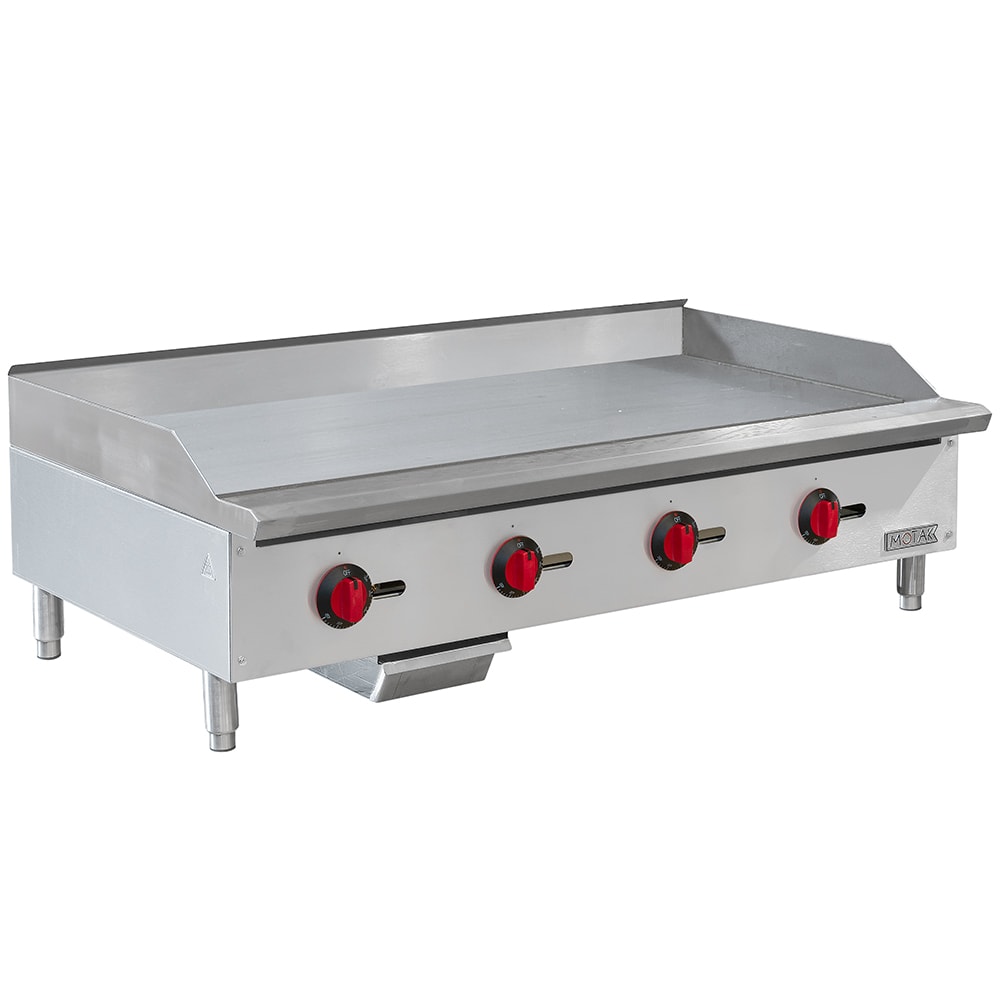

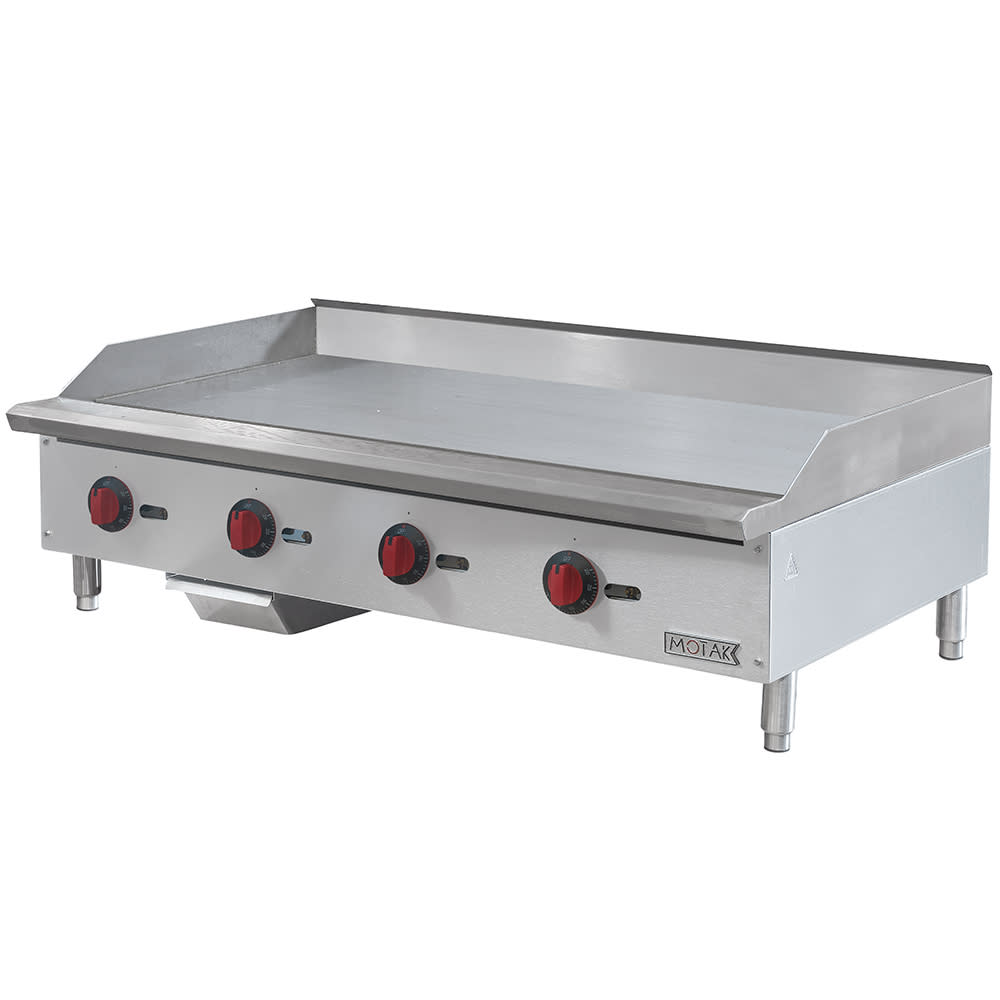

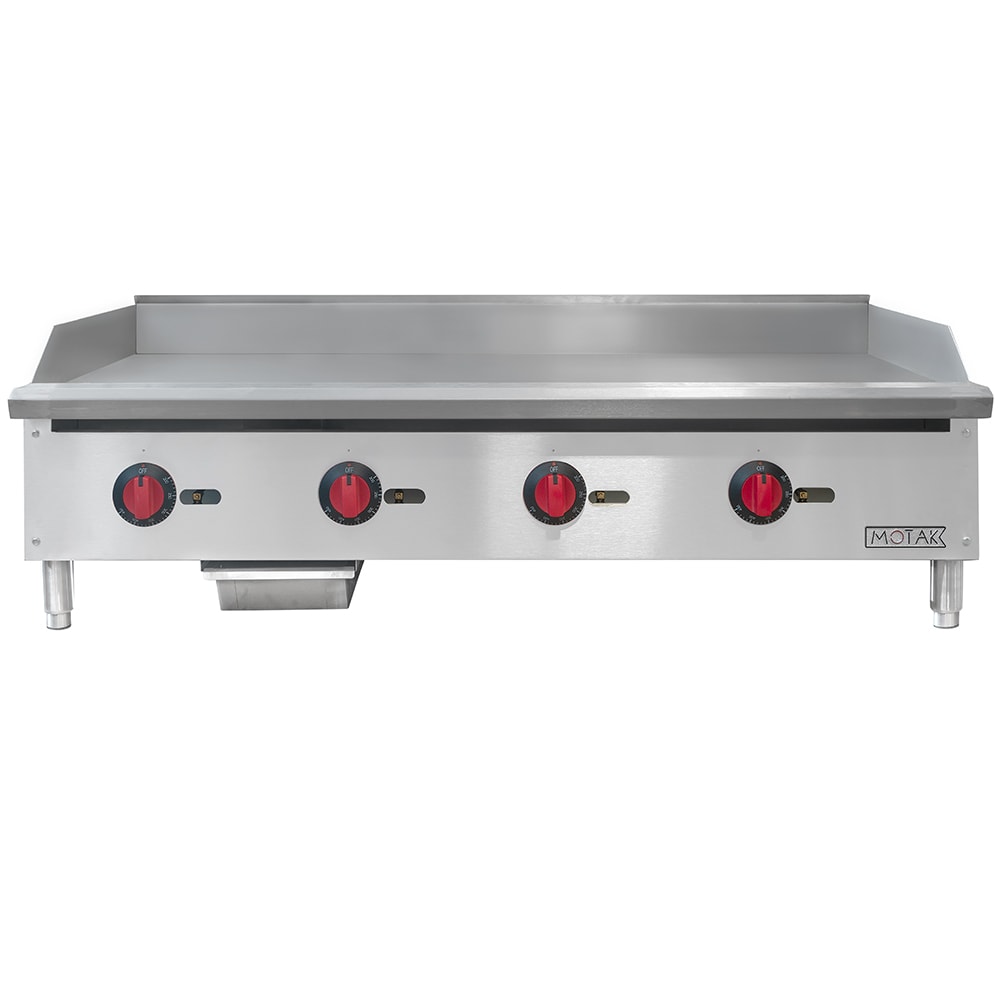

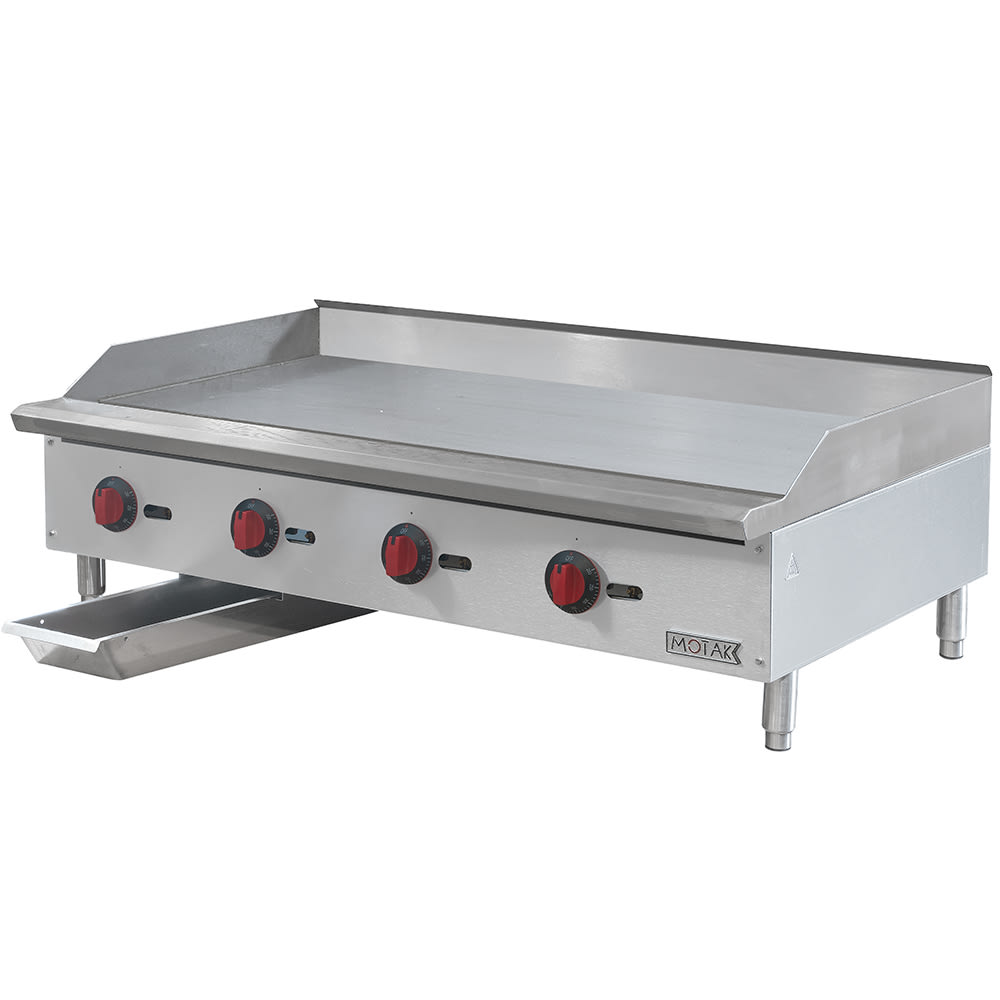

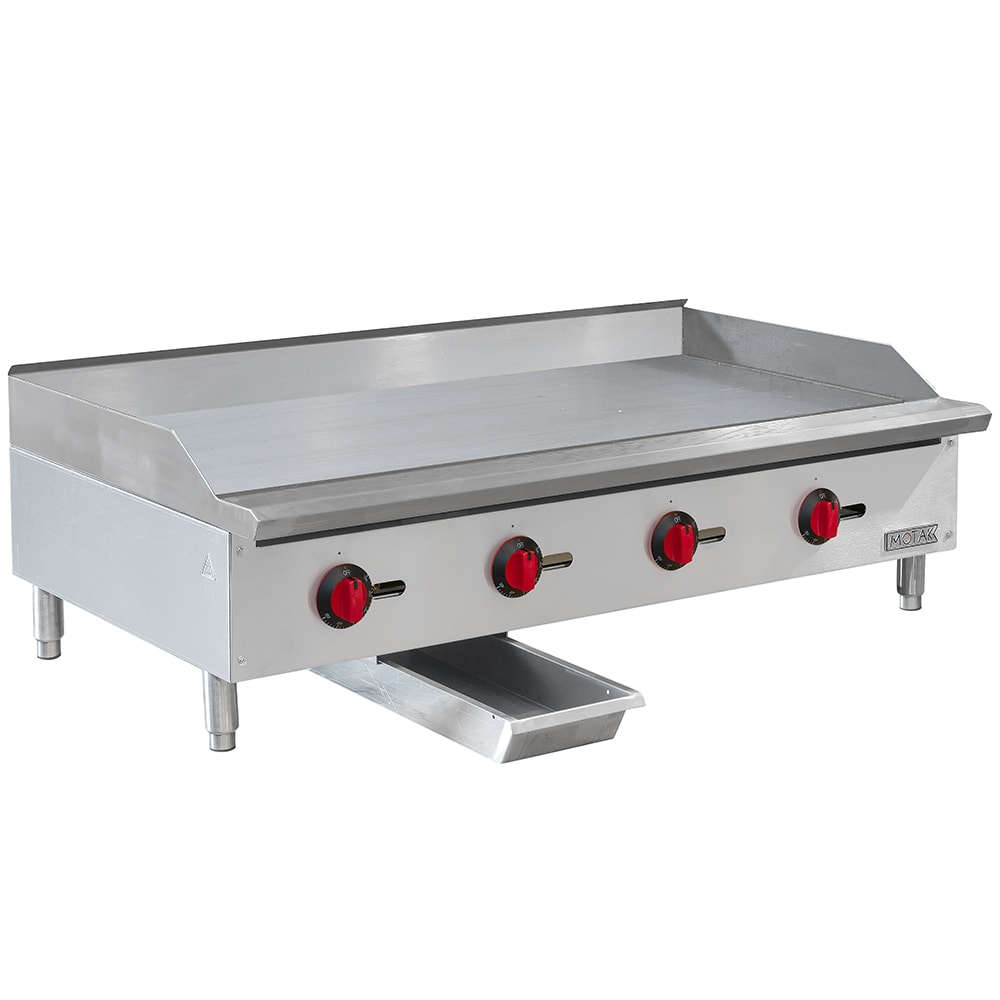

MoTak MGR48-T 48" Gas Griddle w/ Thermostatic Controls - 3/4" Steel Plate, Convertible

The MoTak MGR48-T gas griddle is built with four U-shaped burners featuring a quick-on design that adjusts heat when the probes sense a drop in temperature, and by maintaining even heat, these burners can reduce cook and recovery times. Users can adjust the burners' temperatures from 200 to 450 degrees Fahrenheit with the large, simple-to-user thermostatic control knobs. The ³⁄₄-inch-thick highly polished griddle plate withstands repeated heating and cooling without warping, and unlike thinner griddle plates, this surface can retain and distribute heat to minimize reheating time and cold spots.

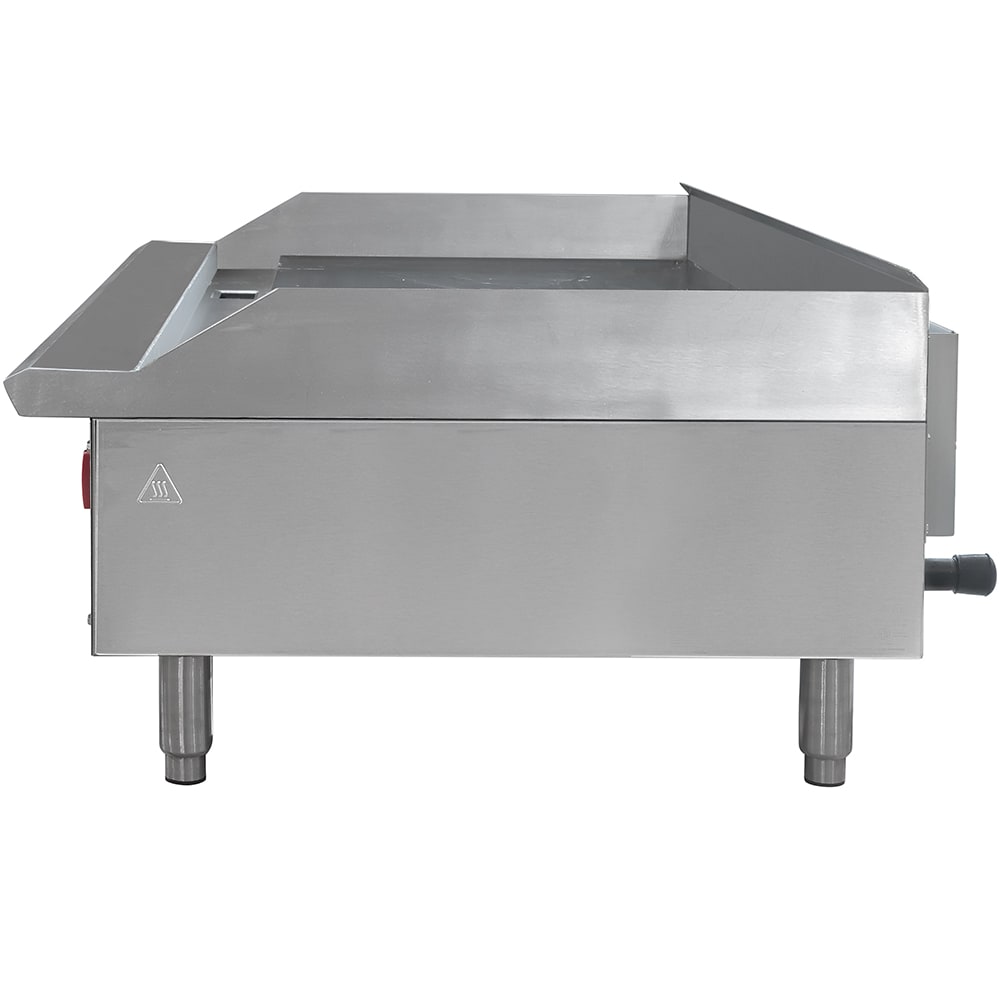

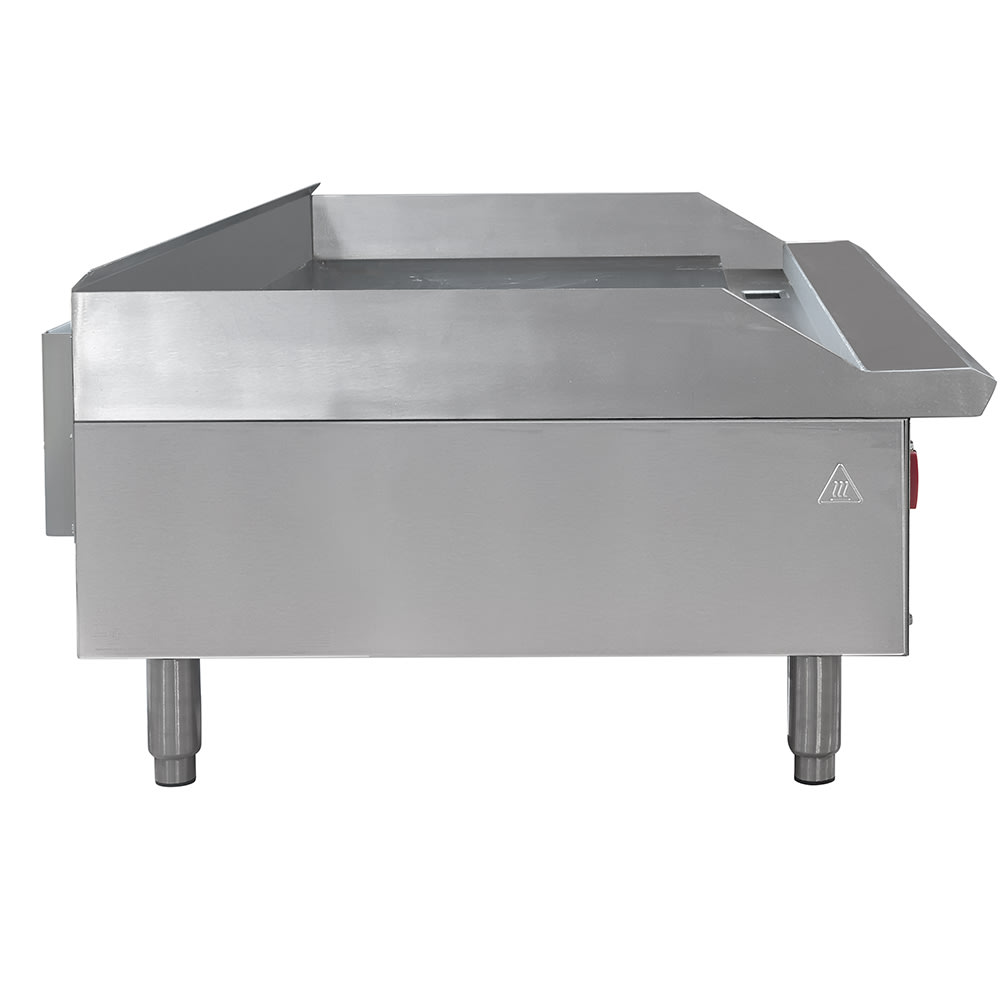

The MoTak MGR48-T gas griddle's 4-inch-tall backsplash and side splashes catch and contain messes to reduce cleaning requirements while enhancing user safety. Its grease trough and removable grease catch pan collect oil, grease, and other food debris, simplifying cleanup after use. To withstand repeated use in busy cafes, restaurants, and hotels while enhancing employee safety, this 47¹³⁄₂₀-inch-wide by 29⁶⁄₂₅-inch-deep by 15⁴⁄₂₅-inch-tall unit features a durable, double-wall stainless steel construction with insulated side panels and an extended cool-to-the-touch front end. To minimize disruptive wobbling or rocking during use, its nonskid stainless steel legs can be raised or lowered as needed. While this griddle comes ready for natural gas heating, the included conversion enables users to set it up with LP gas.

Product Details

• Countertop model
• 4 stainless steel U-shaped burners
• Burners' quick-on design automatically adjusts the heat when probes sense a drop in temperature

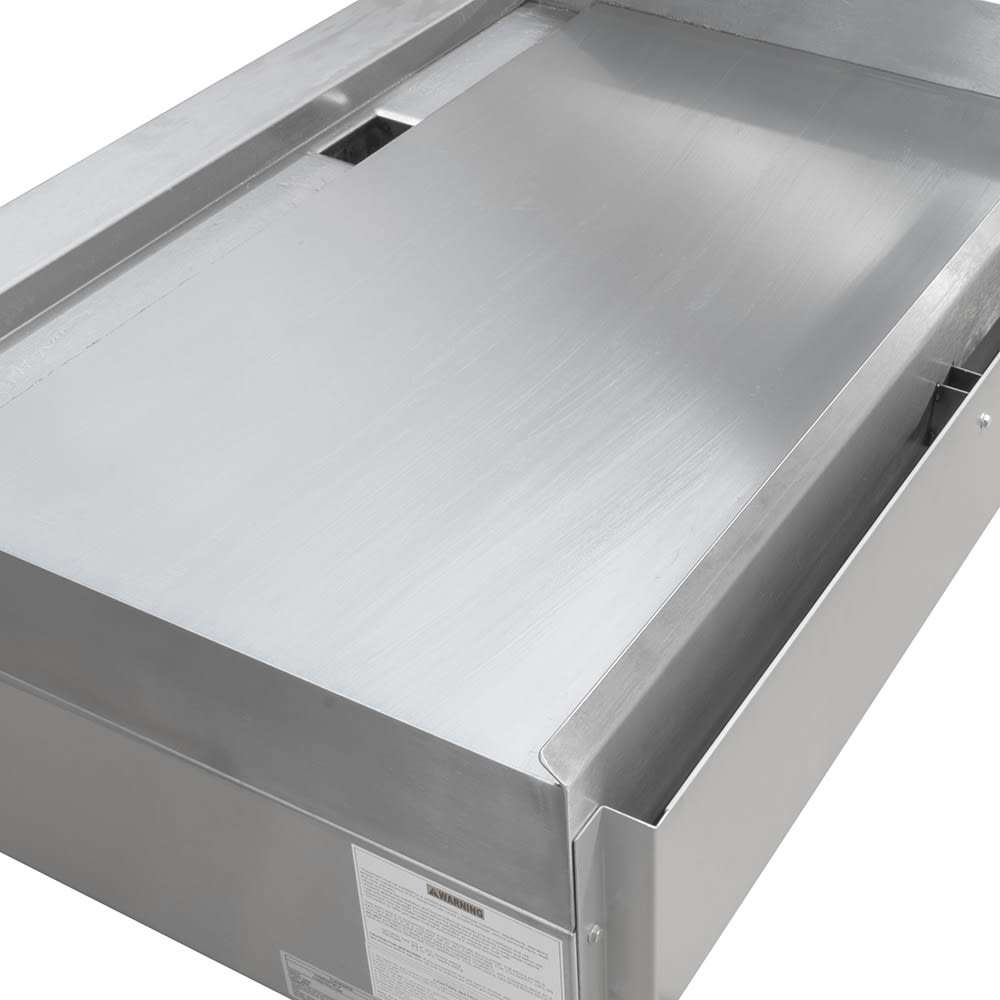

• ³⁄₄-in.-thick polished griddle plate heats evenly and resists warping
• Operating temperature range: 200-450 degrees F

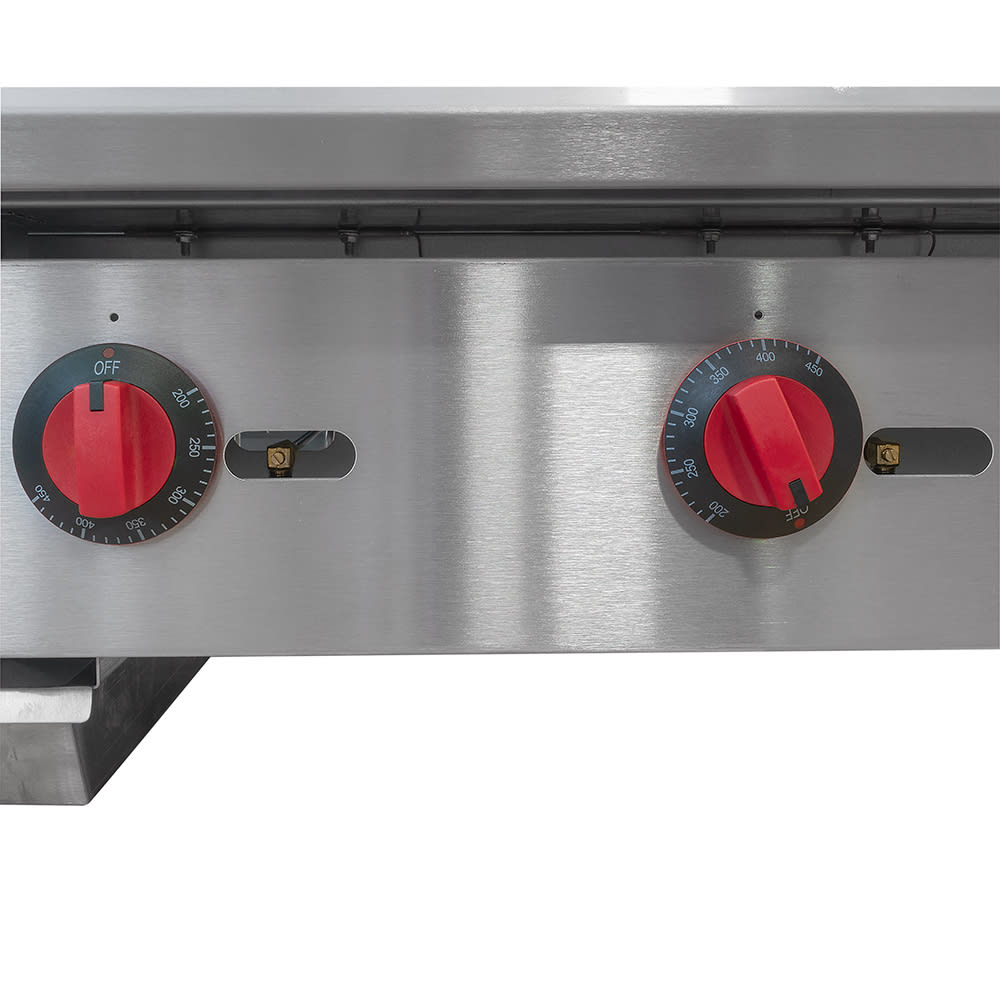

• Thermostatic temperature controls can be adjusted using the large knobs
• Front panel provides pilot access for user convenience
• 4-in. backsplash and side splashes catch grease splatter and debris

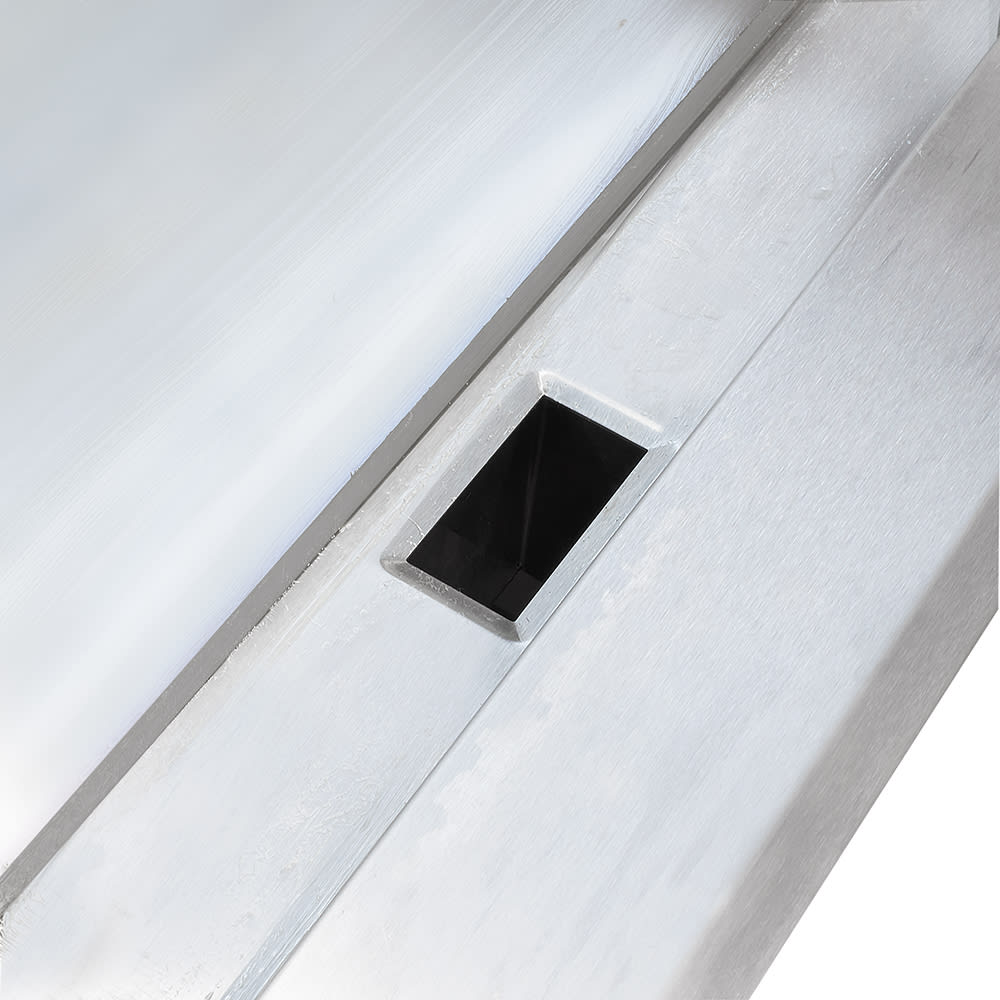

• 3¹⁄₄-in.-wide front grease trough

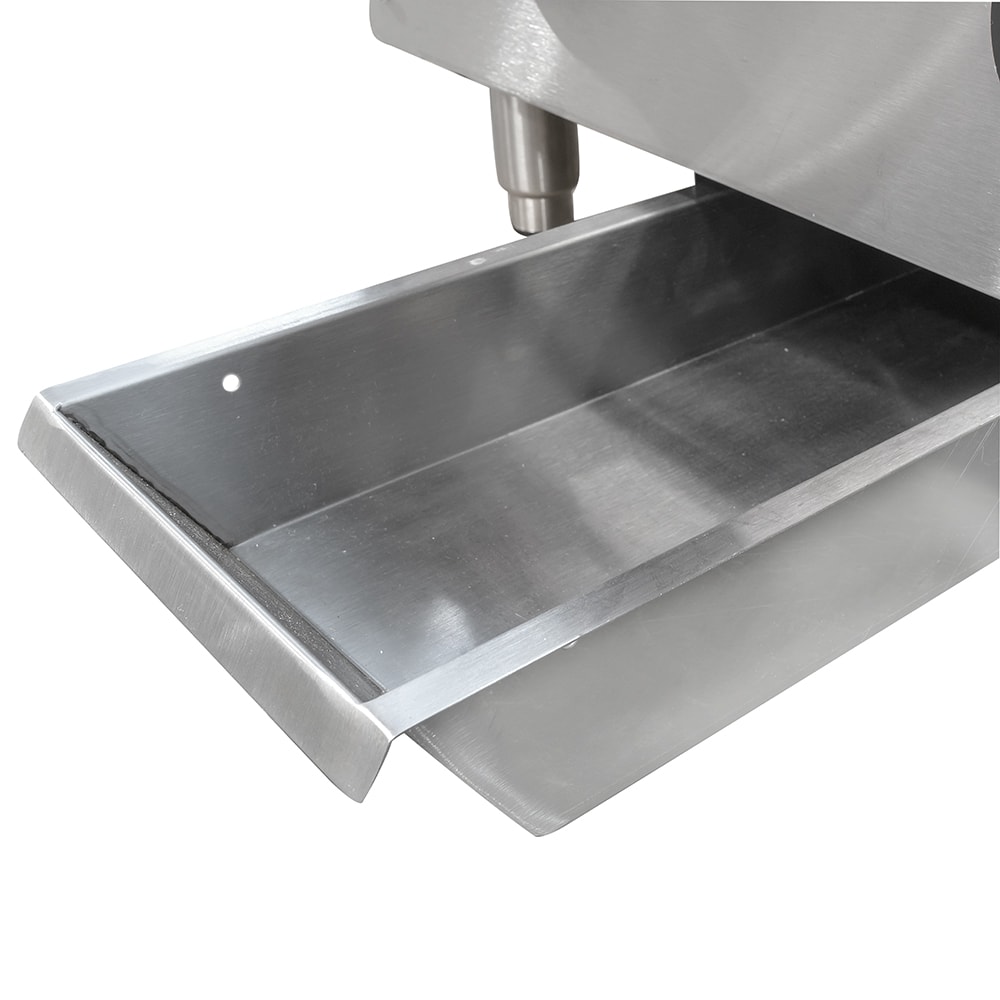

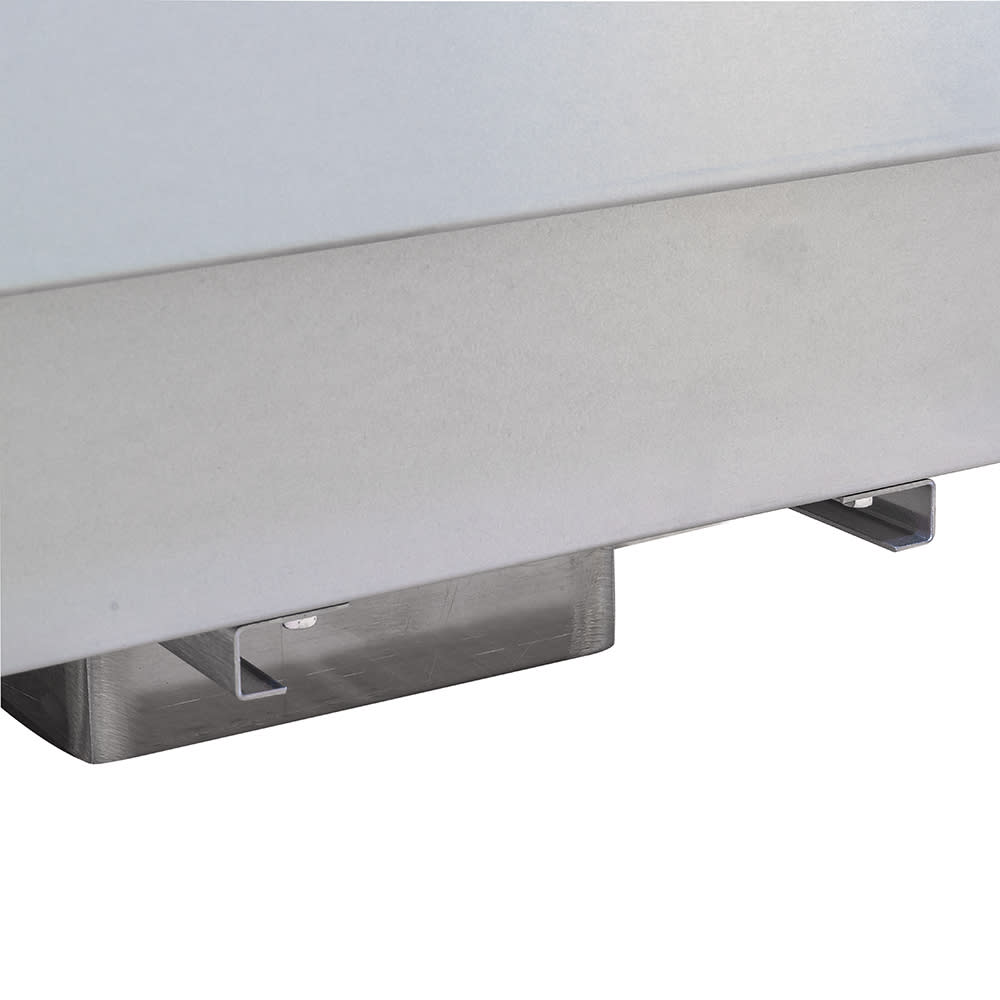

• Removable stainless steel grease catch pan included

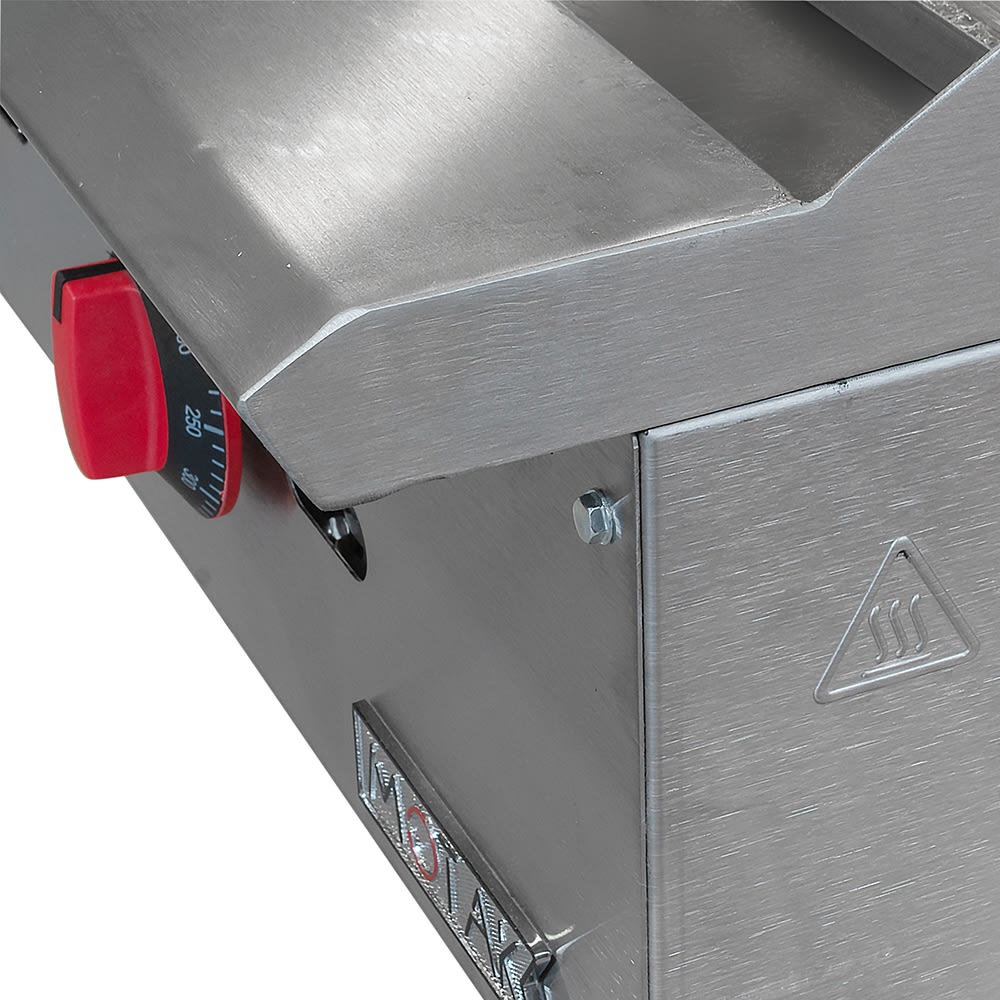

• Extended front edge stays cool during use
• Double-wall construction and insulated side panels retain heat
• Stainless steel construction

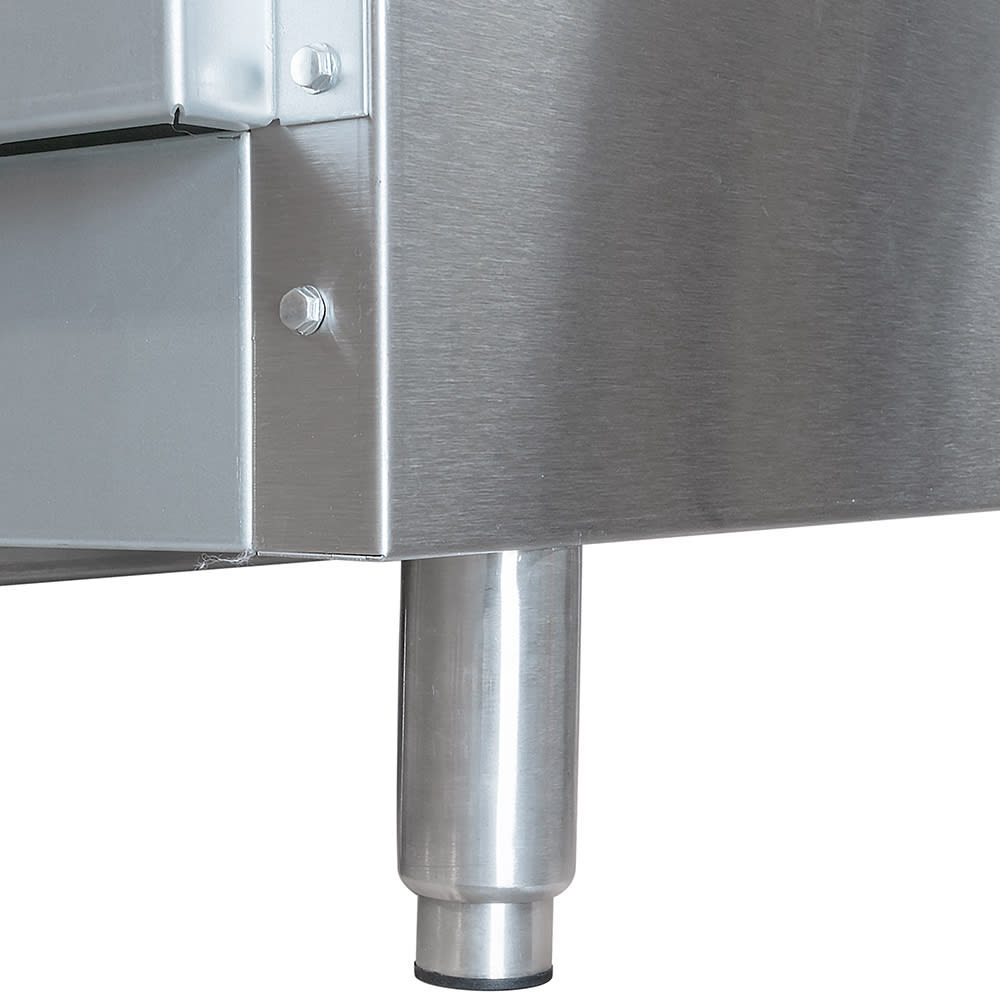

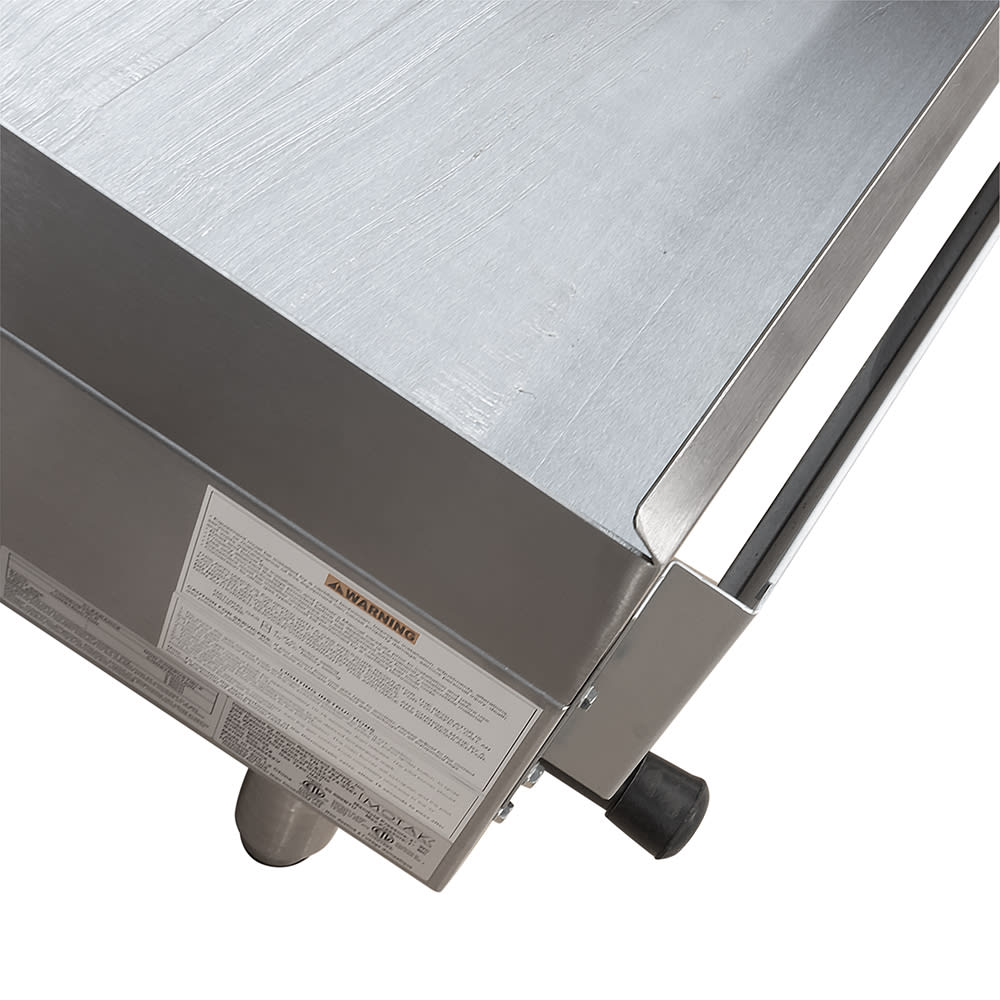

• Adjustable nonskid legs provide stability
• 120,000 BTU

Dimensions & Utilities

• Cooking surface: 20¹⁷⁄₂₅ in. W x 47⁵⁹⁄₁₀₀ in. H
• Overall: 47¹³⁄₂₀ in. W x 29⁶⁄₂₅ in. D x 15⁴⁄₂₅ in. H

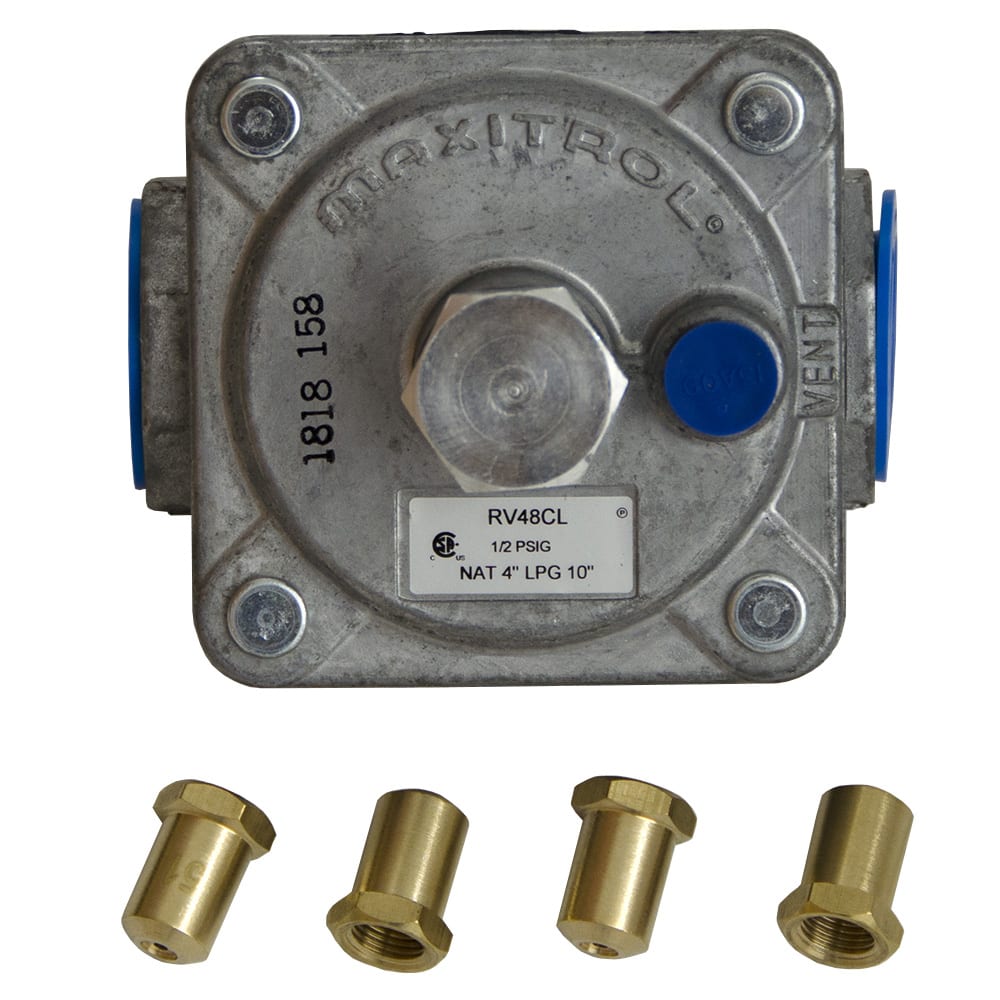

• Powered by natural gas (includes LP gas conversion kit)

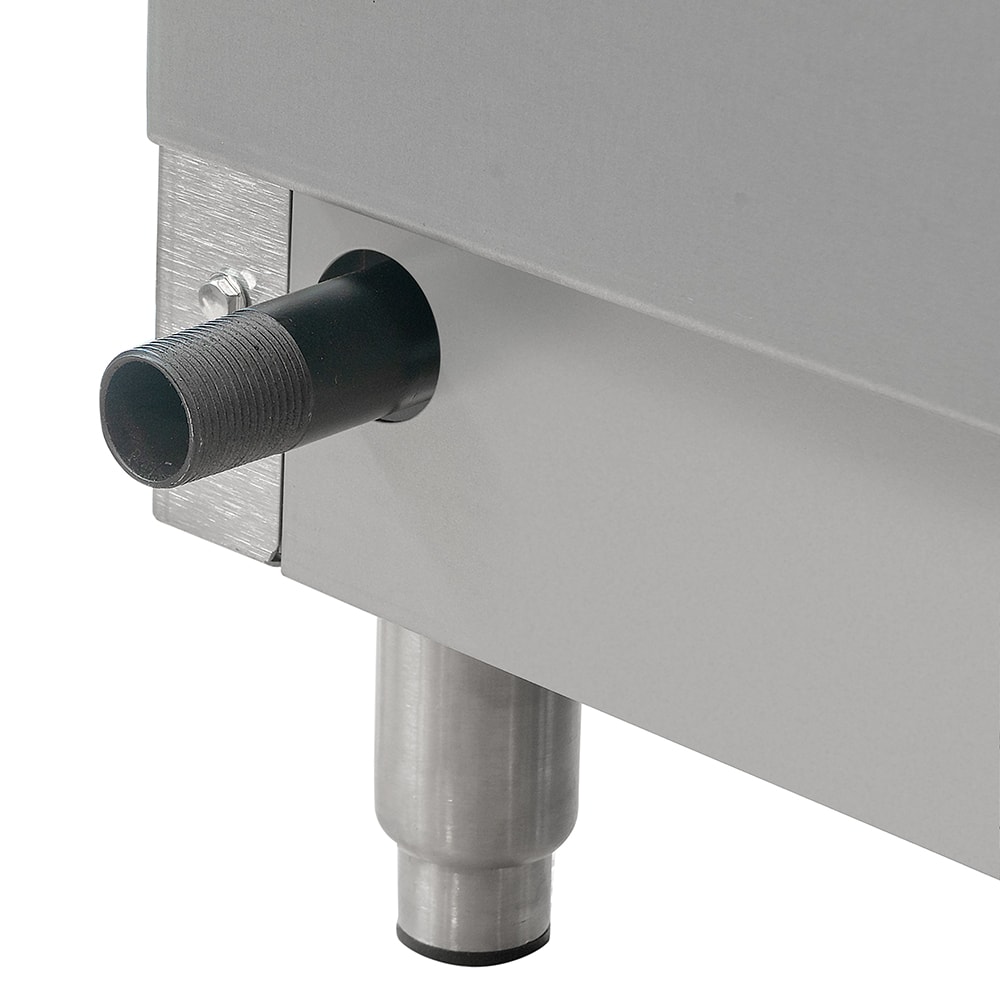

• ³⁄₄-in. NPT rear gas connection

Product Features

From The Manufacturer

Commercial Griddle, natural gas, countertop, 48"W, (4) 30,000 BTU U-style burners, 47-5/8"W x 20-5/8"D cooking area, 3/4" thick polished plate, 4" backsplash & sidesplash, thermostatic controls, 200°F to 450°F temperature range, removable grease pan, stainless steel construction, adjustable non-skid legs, 120,000 BTU, cETLus, ETL-Sanitation (includes LP conversion kit)

*Image may not depict product color, inclusions or accessories.

1 year parts & labor
