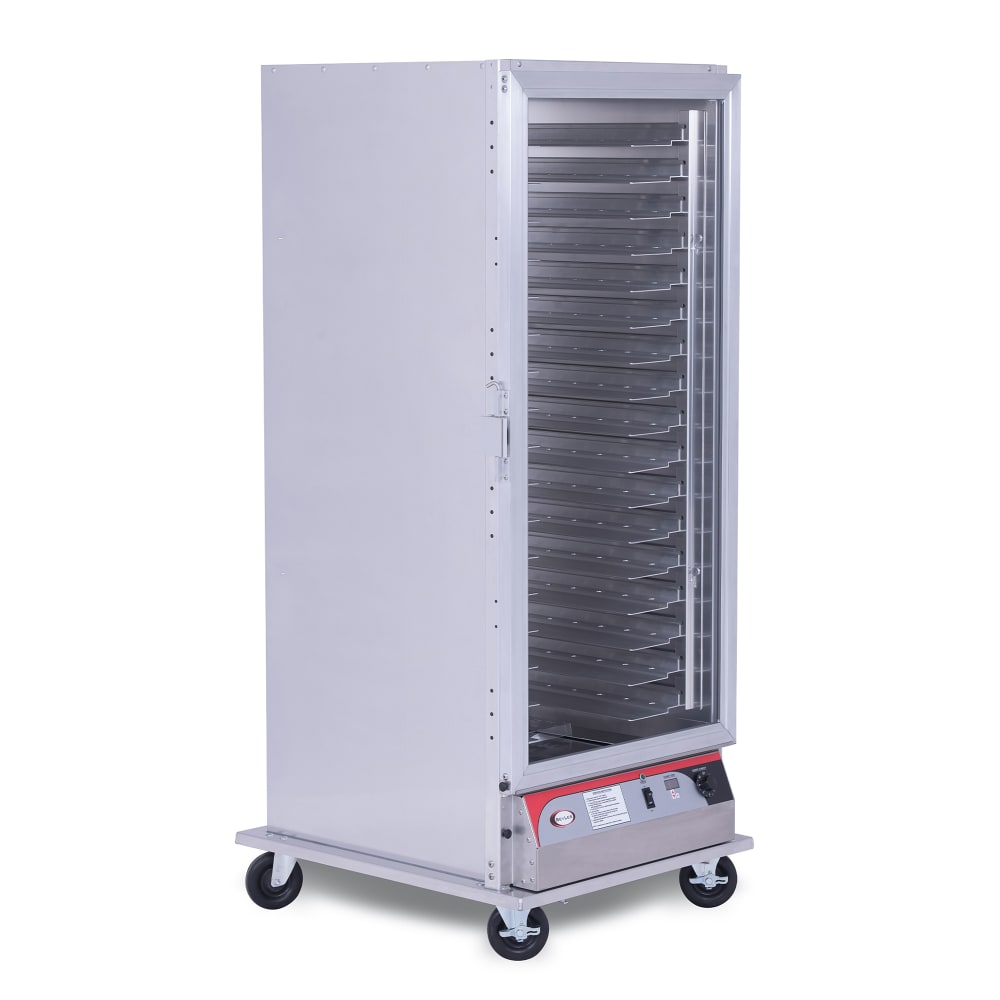

BevLes PICA70-32INS-AED-4L1 Full Size Insulated Mobile Heated Proofing Cabinet w/ (16) Pan Capacity - 208-230v/1ph

The full-height BevLes PICA70-32INS-AED-4L1 PICA series donut proofer is built for efficient proofing and warming, featuring insulated top, back, and sides to maintain consistent internal temperatures. Constructed of durable aluminum, this cabinet ensures long-lasting performance and effective heat transfer. Its single clear Lexan® left-hand hinged door allows operators to clearly monitor contents while retaining heat and humidity. Adjustable aluminum pan supports, spaced on 1¹/₂-inch centers, can accommodate up to (16) 23-inch by 32-inch or 23-inch by 23-inch donut screens, (16) 18-inch by 26-inch trays, or (32) 12-inch by 20-inch pans. For added convenience and mobility, the unit is equipped with 5-inch swivel plate casters, two of which lock for stability.

The BevLes PICA70-32INS-AED-4L1 proofing cabinet features a digital thermostat with variable humidity control for precise adjustments within a temperature range of 60 to 120 degrees Fahrenheit. Its LED display ensures clear monitoring of current settings, while a 5-quart cast water reservoir with a cover helps maintain consistent humidity levels. The removable heating module simplifies cleaning and maintenance. Designed to operate on a 208-230V power supply, this unit includes a cord for straightforward installation.

Product Details

• PICA series
• Durable aluminum construction with insulated top, back, and sides
• Holds (16) 23 in. x 32 in. or 23 in. x 23 in. donut screens
• Compatible with (16) 18 in. x 26 in. trays or (32) 12 in. x 20 in. pans
• Full-height design with 1 clear Lexan left-hand hinged door
• Adjustable pan supports on 1¹/₂-in. centers
• Digital thermostat with LED display
• Variable humidity control
• 5-qt. cast water reservoir with cover
• Removable heating module
• 5-in. swivel plate casters (2 braking)

Dimensions & Utilities

• Overall dimensions: 29 in. W x 39 in. D x 71¹/₂ in. H
• 7.5/6.8 A, 1.4 kW
• 208/230 V/50/60 Hz/1 ph, cord only

*Free shipping on BevLes PICA70-32INS-AED-4L1 within the 48 contiguous states.

From The Manufacturer

Extra Deep Proofing Cabinet (donut proofer), mobile, full height, insulated top, back & sides, (1) clear Lexan® left-hand hinged door, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, or (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

BevLes PICA70-32INS-AED-4L1 Specifications
