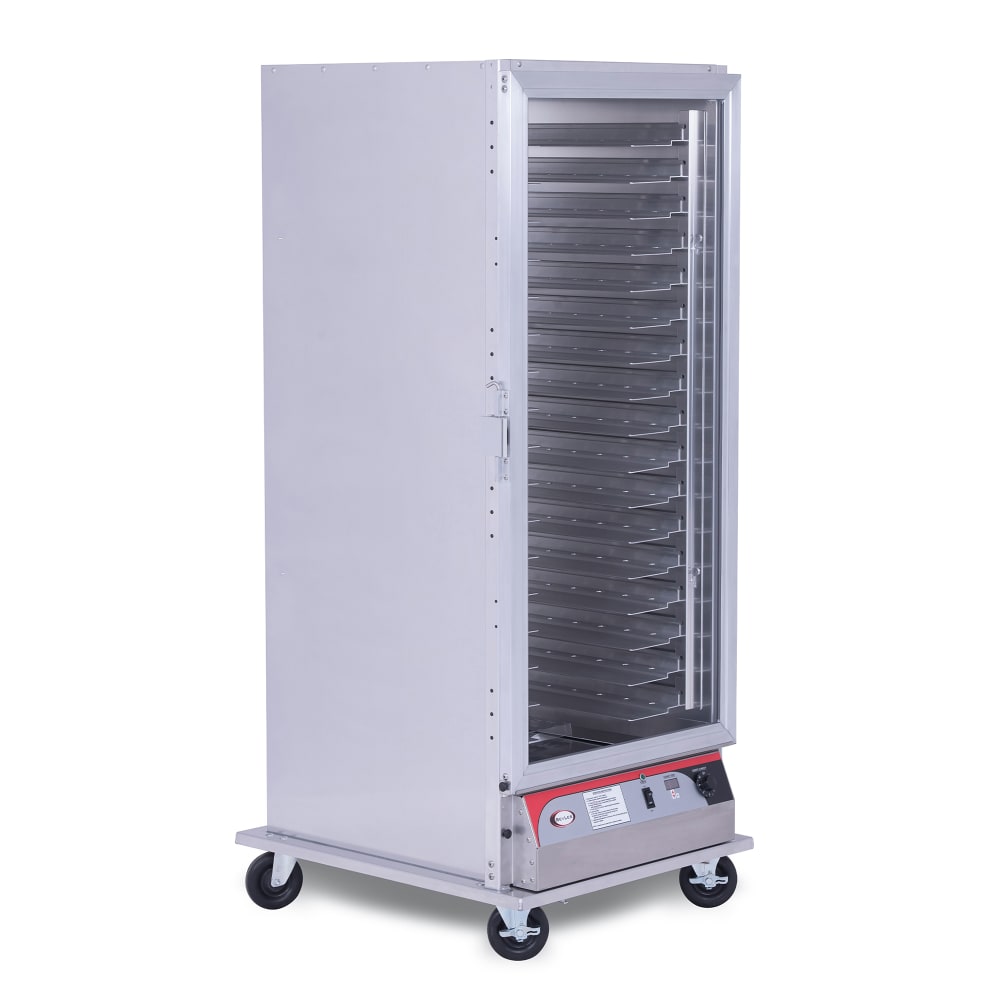

BevLes PICA70-32-AED-4L3 Full Size Non-Insulated Mobile Heated Proofing Cabinet w/ (16) Pan Capacity - 208-230v/1ph

The full-height BevLes PICA70-32-AED-4L3 PICA series donut proofer is engineered to accommodate diverse proofing needs in bakeries and foodservice operations. Its sturdy aluminum construction ensures durability and effective heat transfer, while the non-insulated design supports consistent performance. This cabinet features three clear Lexan® split doors with left-hand hinges, providing visibility and access to its contents. Adjustable aluminum pan supports are spaced on 1¹/₂-inch centers, enabling it to hold up to (16) 23-inch by 32-inch or 23-inch by 23-inch donut screens, (16) 18-inch by 26-inch trays, or (32) 12-inch by 20-inch pans.

An LED display offers clear visibility of current settings, while the BevLes PICA70-32-AED-4L3 proofing cabinet’s 5-quart cast water reservoir with a cover helps maintain consistent humidity. This unit includes a digital thermostat and variable humidity control, allowing precise adjustments within a temperature range of 60 to 120 degrees Fahrenheit. For streamlined maintenance, the heating module is removable. This unit operates on a 208-230V power supply and includes a cord for simple installation. Equipped with 5-inch swivel plate casters, including two that lock, this unit combines mobility with stability for flexible placement and operation.

Product Details

• PICA series
• Aluminum construction
• Non-insulated, full-height design
• 3 clear Lexan left-hand hinged split doors
• Adjustable pan supports on 1¹/₂-in. centers
• Holds (16) 23 in. x 32 in. or 23 in. x 23 in. donut screens
• Compatible with (16) 18 in. x 26 in. trays or (32) 12 in. x 20 in. pans
• Digital thermostat with LED display
• Variable humidity control
• 5-qt. cast water reservoir with cover
• Removable heating module
• 5-in. swivel plate casters (2 braking)

Dimensions & Utilities

• Overall dimensions: 29 in. W x 39 in. D x 71¹/₂ in. H
• 7.5/6.8 A, 1.4 kW
• 208/230 V/50/60 Hz/1 ph, cord only

*Free shipping on BevLes PICA70-32-AED-4L3 within the 48 contiguous states.

From The Manufacturer

Extra Deep Proofing Cabinet (donut proofer), mobile, full height, non-insulated, (3) clear Lexan® left-hand hinged split doors, digital thermostat, variable humidity control & LED display, 60° to 120°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (16) 23" x 32" donut screens, or (16) 23" x 23" donut screens, or (16) 18" x 26" trays, or (32) 12" x 20" pans, removable heating module, 5 qt. cast water reservoir with cover, 5" swivel plate casters (2 with brakes), aluminum construction, 208-230v/50/60/1-ph, 1400 watts, 7.5/6.8 amps, cord only, cULus, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

BevLes PICA70-32-AED-4L3 Specifications

Documents

Spec Sheet

Warranty

Manual
