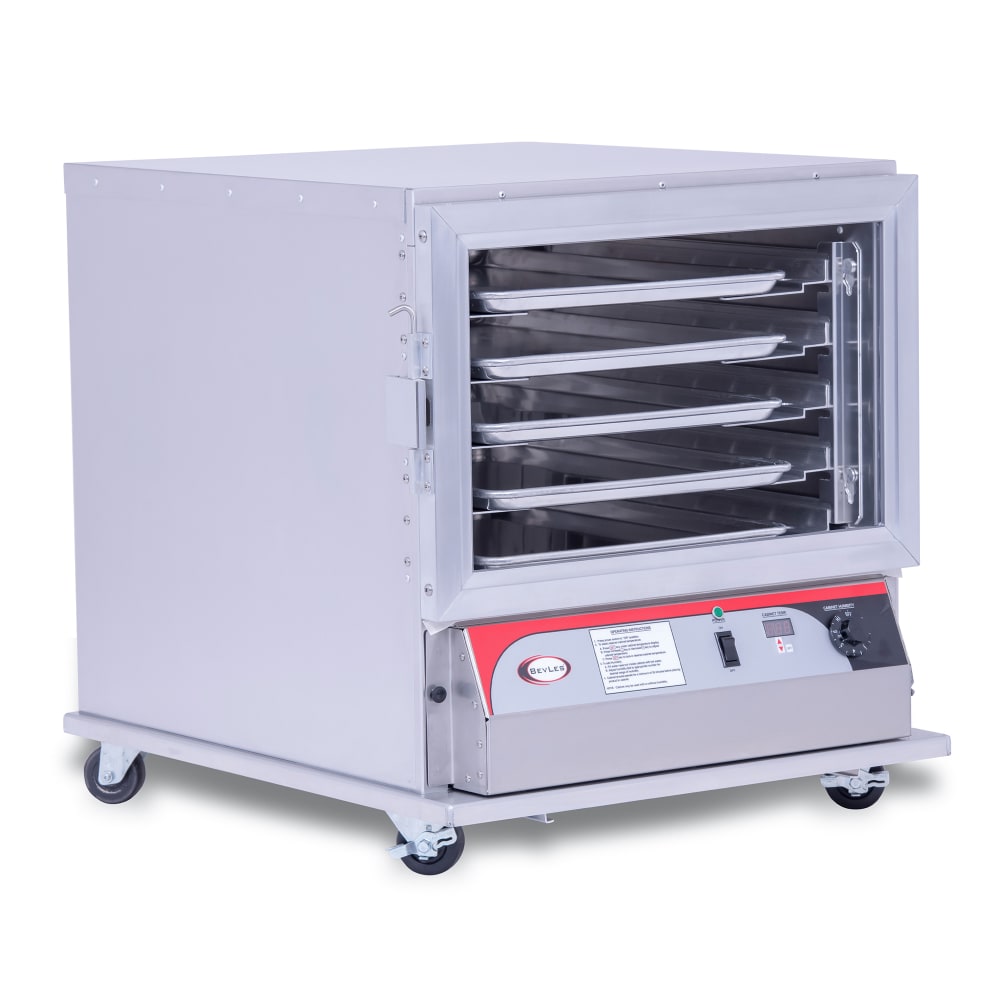

BevLes PHC32-10-A-1R1 Undercounter Non-Insulated Mobile Heated Proofing Cabinet w/ (5) Pan Capacity - 120v/1ph
$3,513.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Winholt NHPL-1825-UNC-DGT
Full Height Non-Insulated Mobile Heated Cabinet w/ (28) Pan Capacity, 120v
BevLes PHC32-10-A-1R1 Description
The BevLes PHC32-10-A-1R1 proofing and holding cabinet is a compact and efficient solution for maintaining consistent heat and humidity in professional foodservice operations. This non-insulated, undercounter cabinet is constructed of durable aluminum for reliable performance and lightweight mobility. Its clear Lexan® right-hand hinged door provides easy visibility and access to stored items. Adjustable aluminum pan supports, spaced on 11/2-inch centers, can accommodate up to five 18-inch by 26-inch pans, (10) 12-inch by 20-inch pans, or five 23-inch by 23-inch donut screens. A removable 5-quart cast water reservoir with a cover helps maintain optimal humidity, and the removable heating module simplifies cleaning and maintenance.
With a temperature range of 80 to 180 degrees Fahrenheit, the BevLes PHC32-10-A-1R1 cabinet provides precise control using its digital thermostat and LED display. Mounted on 3-inch swivel plate casters, including two with brakes, this cabinet is easy to move and secure in place. Designed for 120V, single-phase power, it operates at 2000 watts and includes an 8-foot cord with a NEMA 5-20P plug for straightforward installation, making it a dependable addition to any foodservice operation.
Product Details
- PHC series
- Durable aluminum construction
- Undercounter design with non-insulated structure
- 1 clear Lexan® right-hand hinged door
- Adjustable pan supports on 11/2-in. centers
- Holds (5) 18 in. x 26 in., (10) 12 in. x 20 in., or (5) 23 in. x 23 in. pans or screens
- Removable 5-qt. cast water reservoir with cover
- Digital thermostat with LED display
- Variable humidity control
- Removable heating module for easy cleaning
- 3-in. swivel plate casters (2 braking)
Dimensions & Utilities
- 29 in. W x 331/2 in. D x 313/8 in. H
- 16.7 A, 2 kW
- 120 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-20P plug
*Free shipping on BevLes PHC32-10-A-1R1 within the 48 contiguous states.
From The Manufacturer
Proofing & Holding Cabinet, mobile, undercounter, non-insulated, (1) clear Lexan® right-hand hinged door, digital thermostat, variable humidity control & LED display, 80° to 180°F temperature range, adjustable aluminum pan supports on 1-1/2" centers accommodate (5) 18" x 26" or (10) 12" x 20" pans, or (5) 23" x 23 donut screens, removable heating module, 5 qt. cast water reservoir with cover, 3" swivel plate casters (2 with brakes), aluminum construction, 120v/60/1-ph, 2000 watts, 16.7 amps, 8' cord & NEMA 5-20P, cULus, NSF
*Image may not depict product color, inclusions or accessories.
BevLes PHC32-10-A-1R1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | BevLes |
| Application | Heat & Humidity |
| Control Location | Bottom |
| Construction | Aluminum |
| Door Design | Full |
| Controls | Dial |
| Door Type | Lexan |
| Hinge Configuration | Right |
| Load Type | Reach In |
| No. of Doors | 1 |
| NEMA | 5-20P |
| Hertz | 60 |
| Pan Capacity | 5 |
| Slide Spacing (in) | 3 |
| Slide Type | Adjustable |
| Phase | 1 |
| Size | Undercounter |
| Voltage | 120 |
| Hertz | 60 |
| Phase | 1 |
| Voltage | 120 |
| Weight | 180.00 |
