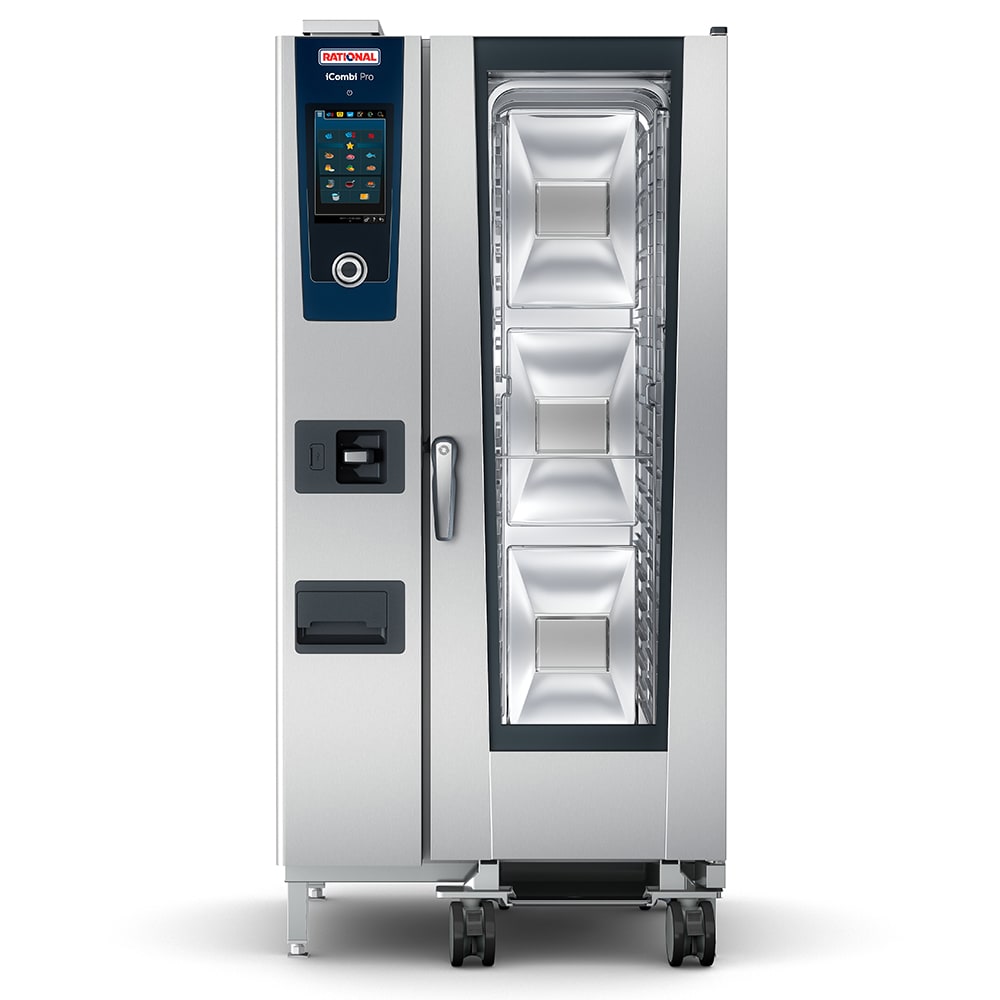

Rational ICP 20-HALF E 480V 3 PH Half Size Combi Oven - Boiler Based, 480v/3ph

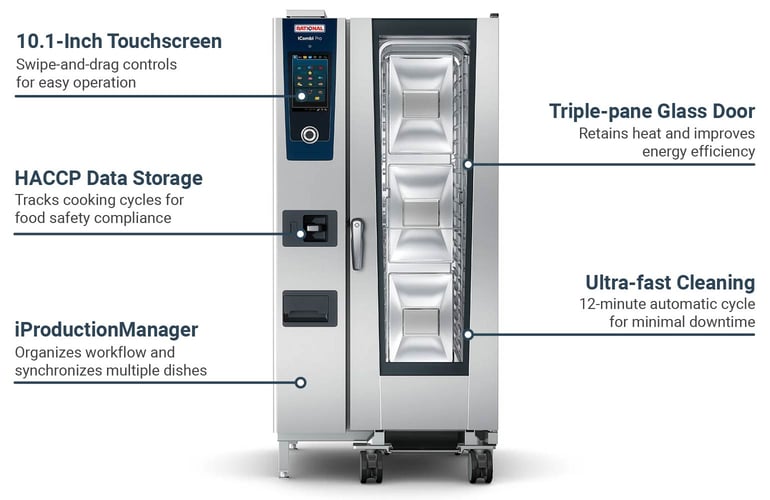

Built with an advanced 10.1-inch TFT touchscreen, the Rational ICP 20-HALF E iCombi Pro half-size combi oven provides intuitive swipe-and-drag controls, making it simple to navigate cooking settings, monitor progress, and store customized programs. Designed for high-performance commercial use, this unit supports six operating modes and five cooking methods, allowing chefs to roast, bake, steam, and grill with precision. The chamber accommodates (20) 13-inch by 18-inch sheet pans, (20) 12-inch by 20-inch steam pans, or (20) 1/1 GN pans, making it ideal for high-volume food production.

Engineered for efficiency, the Rational ICP 20-HALF E iCombi Pro oven uses iDensityControl to optimize airflow, heat, and moisture for consistent cooking results. The unit's triple-pane glass door enhances insulation while maintaining visibility, and LED lighting provides a clear view of the cooking chamber. The integrated HACCP data storage system logs temperature, humidity, and cooking cycles for compliance with food safety standards. Equipped with an ultra-fast 12-minute cleaning system and phosphate-free Active Green cleaner tabs, this oven maintains sanitation with minimal downtime. Built-in Wi-Fi and Ethernet connectivity permit remote monitoring and system updates via ConnectedCooking.

Product Details

• Half-size, single-compartment design
• Boiler-based steam generator
• Stainless steel interior and exterior
• 6 operating modes and 5 cooking methods
• Temperature holding range: 85-572 degrees F
• Accommodates (20) half-size sheet pans or (20) full-size steam pans
• iDensityControl intelligent climate management
• Core temperature probe with six measurement points
• Triple-pane glass door with heat-reflecting coating
• Rounded interior corners for improved sanitation
• Retractable hand shower with adjustable spray settings
• Energy-efficient LED interior lighting

User Interface

• 10.1-inch TFT color touchscreen with swipe-and-drag controls
• Customizable user profiles to prevent operator errors
• Multi-language support with over 55 options
• 100 program slots with multi-stage cooking options
• iCookingSuite adjusts cooking parameters automatically
• iProductionManager organizes workflow and synchronizes dishes
• Context-sensitive help function provides real-time guidance
• Acoustic and visual alerts for user feedback
• Automatic pre-set start time for batch cooking
• Includes HACCP-compliant data storage and USB connectivity
• Optional Ethernet and Wi-Fi connectivity for remote monitoring

Cleaning & Maintenance

• Automatic cleaning system with 9 programs
• Phosphate- and phosphorus-free Active Green cleaner tabs
• Self-cleaning steam generator with automatic descaling
• Water pressure-independent cleaning system
• Ultra-fast 12-minute cleaning cycle for minimal downtime
• Cleaning process resumes automatically after power outages

Dimensions & Utilities

• 34¹⁄₂ in. W x 35⁷⁄₈ in. D x 73³⁄₄ in. H
• 60 A, 37.2 kW
• 480 V/60 Hz/3 ph

Product Features

*Free shipping on Rational ICP 20-HALF E 480V 3 PH within the 48 contiguous states.

From The Manufacturer

(CF1ERRA.0000225) iCombi Pro® 20-Half Size Combi Oven, electric, (20) 13" x 18" sheet pan or (20) 12" x 20" steam pan or (20) 1/1 GN pan capacity, mobile oven rack included, intelligent cooking system with (4) assistants; iDensityControl, iCookingSuite, iProductionManager, & iCareSystem, (6) operating modes, (5) cooking methods, (3) manual operating modes, 85° to 572°F temperature range, quick clean, care control, eco mode, 6-point core temperature probe, retractable hand shower, Ethernet interface, Wi-Fi enabled, 480v/60/3-ph, 37.2 kW, CE, IPX5, UL, cULus, NSF, ENERGY STAR­®

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Steam Generator

Rational ICP 20-HALF E 480V 3 PH Specifications

A European company, Rational has made a name in the development of combi ovens and tilt skillets. Rational strives for a customer-centric, innovative approach to its products that combine steam and convection cooking into one appliance.
