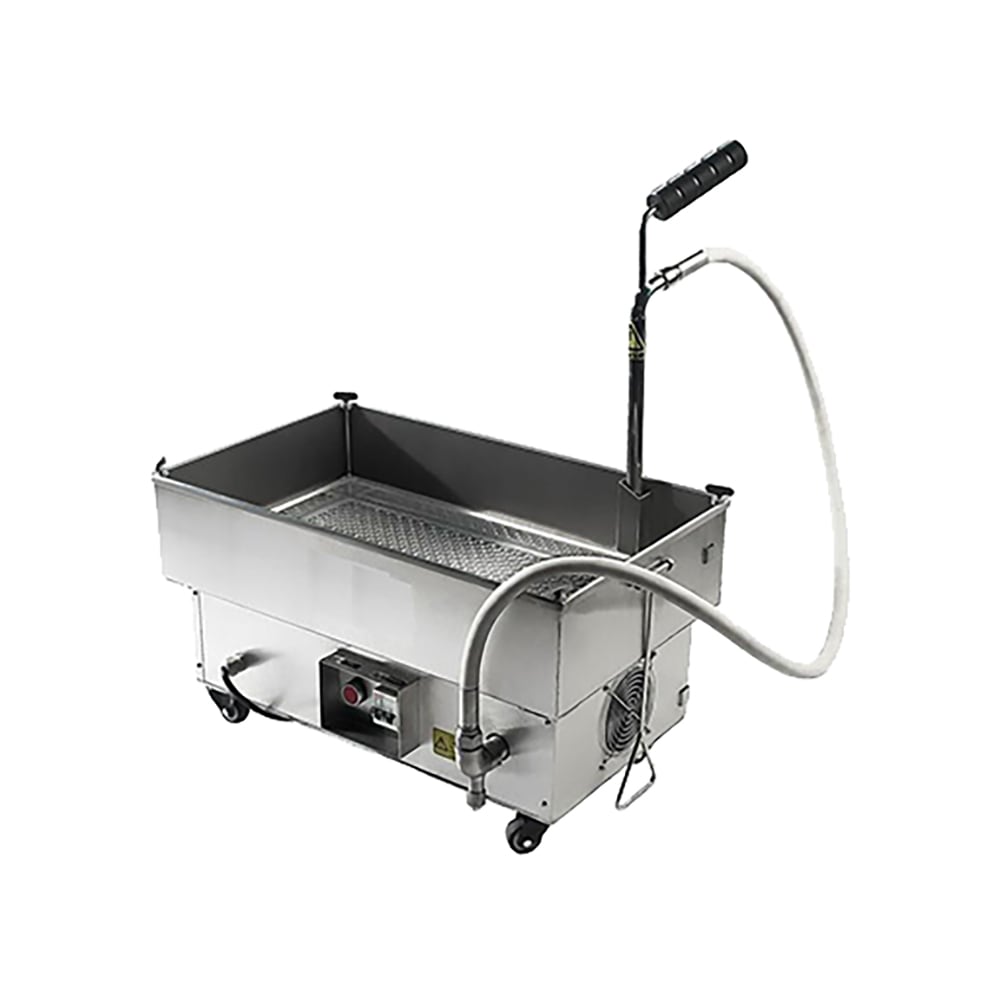

Black Diamond BDOF-40 40 lb Fryer Filter - Suction, 120v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $4,105.00
$1,932.69 /Each
White Glove Delivery
Contact your sales rep for availability
Black Diamond BDOF-40 Description
The Black Diamond BDOF-40 fryer filter is a portable, low-profile unit equipped with swivel casters, making it simple to roll under fryers or next to drains for oil replacement. The fold-down handle helps with maneuvering and tucks away for compact storage. An on/off switch and a start/stop pump button give operators full control during filtration. Constructed of stainless steel, the unit includes filter mesh, filter papers, and filter powder to support regular oil maintenance.
The Black Diamond BDOF-40 fryer filter is designed to filter up to 40 pounds of oil, using a pump that transfers oil at a rate of 15⁄16 gallons per minute. The 5-foot flexible hose connects to a stainless steel nozzle and is removable. A 51⁄4-gallon chamber handles the filtration process, which helps remove food particles and sediment that could otherwise degrade oil quality.
Product Details
- 40-lb. oil capacity
- Pumps oil at a rate of 15⁄16 gal. per minute
- 51⁄4-gal. capacity chamber
- Stainless steel construction
- Fold-down handle and cover
- 5-ft. removable flexible hose with stainless steel nozzle
- Includes filter mesh, filter papers, and filter powder
- On/off power switch and start/stop pump button
- 4 swivel casters (2 locking)
Dimensions & Utilities
- Overall dimensions: 177⁄10 in. W x 13 in. D x 134⁄5 in. H
- 200 W, 1⁄3 HP
- 120 V/60 Hz/1 ph, 5-ft. cord with NEMA 5-15P plug
From The Manufacturer
Oil Filtration System, portable, 18" x 13" chamber, 40 lbs of oil capacity, pumps up to 1.32 gallons of oil per minute, 5.28 gallon capacity filtering chamber, 5' removable flexible filtering hose with stainless steel nozzle, stainless steel gasket, filter mesh and rubber gasket, fold-down handle, low profile, separate on/off power switch, start/stop pump button, (4) swivel casters (2 locking), stainless steel construction, includes stainless steel gasket, includes filter papers, filter powder, 120v/60/1-ph, 200 watts, 1/3 HP, NEMA 5-15P, CE
*Image may not depict product color, inclusions or accessories.
Black Diamond BDOF-40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Black Diamond |
| Hertz | 60 |
| NEMA | 5-15P |
| Oil Capacity/Fryer (lb) | 40 |
| Phase | 1 |
| Product | Fryer Filters |
| Product Type | Cooking Equipment |
| Type | Suction |
| Voltage | 120 |
| Weight | 108.00 |
