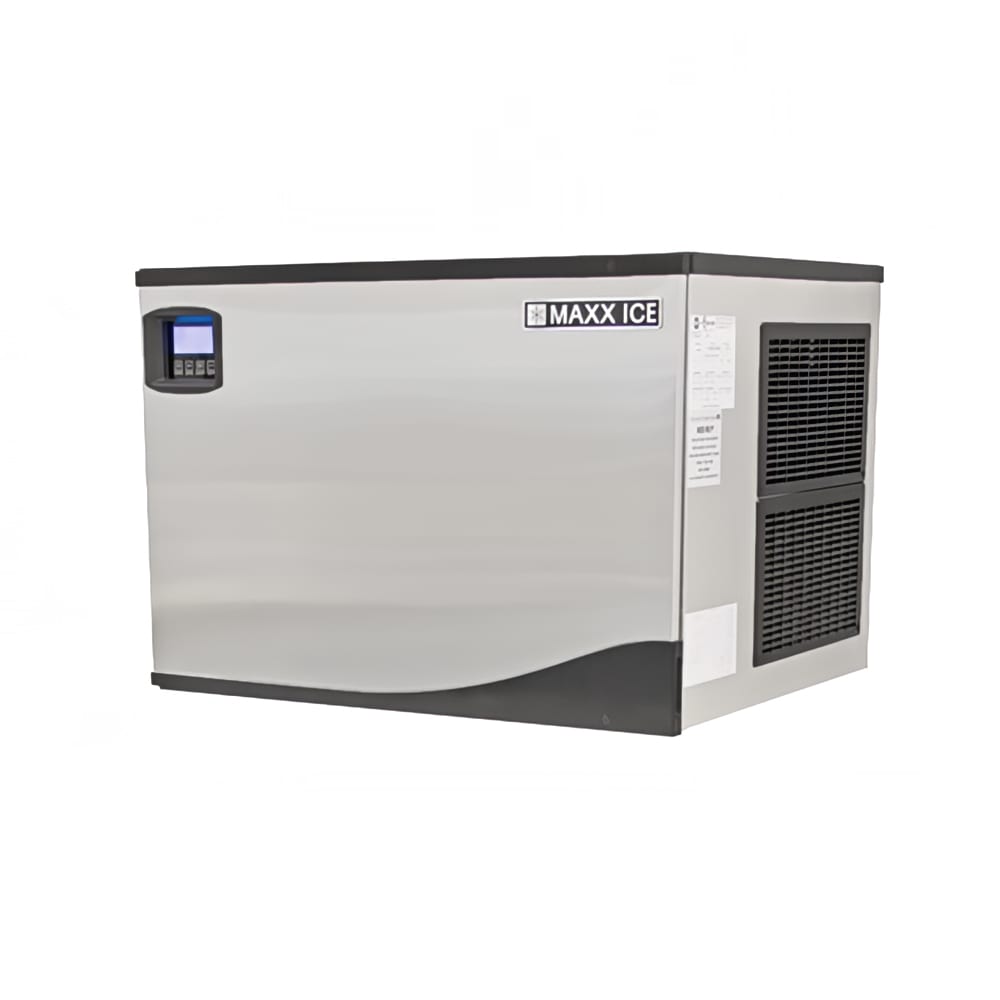

Maxx Ice MIM500N 30" Full Cube Ice Machine Head - 521 lb/24 hr, Air Cooled, 120v/1ph

When ambient air and incoming water temperature are 70 and 50 degrees Fahrenheit, respectively, the Maxx Ice MIM500N ice machine head can produce 521 pounds of full-cube ice over a 24-hour period. This commercial unit is great for bars, restaurants, hotels, or grocery stores, and because this ice type melts slowly, it's ideal for cocktails, sodas, and other drinks meant to be sipped. Its self-contained refrigeration system simplifies installation, while its air-cooled compressor is ideal for settings with relatively low ambient temperatures. To streamline operation, this unit is built with user-friendly, programmable digital controls, a digital screen that display unit status and temperature, an automatic cleaning cycle, and bin overflow prevention.

The Maxx Ice MIM500N ice maker head measures 30 inches wide by 24³⁄₅ inches deep by 21 inches tall; it's made of long-lasting stainless steel that resists rust, wear, and corrosion to survive back-of-house applications. For a sleek, professional accent, its exterior sports a black trim. This modular unit can be fitted with a Maxx Ice MIB470N or MIB580N ice storage bin for convenient storage, and to increase production, it can be stacked with another ice machine head using an adapter (not included). When cleaning or servicing is required, users can directly access its internal components via the hinged front panel, and for proper installation, this ice maker requires a gravity drain line.

Product Details

• Part of the Intelligent series
• Maximum daily ice production: 521 lbs.
• Produces full-cube ice
• Full-cube ice size: ³⁄₄ in. x ³⁄₄ in. x 1 in.
• Stainless steel body with black trim
• Modular configuration
• Can be stacked with another ice machine head using adapter (sold separately)
• Fits the Maxx Ice MIB470N 30-in. ice bin or the Maxx Ice MIB580N 30-in. ice bin (both sold separately)
• Self-contained refrigeration system
• Air-cooled compressor
• R-404a refrigerant
• Programmable, user-friendly digital controls
• Digital screen displays temperature and status readouts
• Automatic cleaning cycle
• Bin overflow protection
• Hinged front panel provides direct access for cleaning and maintenance
• Gravity drain line required for installation
• Recommended wall clearance: 2 in.
• Water filter recommended
• Uses 13.12 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-100 degrees F
• Required incoming water temperature range: 41-90 degrees F
• Required incoming water pressure range: 15-80 PSI

Dimensions & Utilities

• 30 in. W x 24³⁄₅ in. D x 21 in . H
• 7.5-9.3 A
• 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• ³⁄₈-in. FPT water supply line connection

*Free shipping on Maxx Ice MIM500N within the 48 contiguous states.

From The Manufacturer

Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, digital, approximately 521 lb. production/24 hours, slab cube ice type, stainless steel with black trim, R404a refrigerant, NSF, cULus Classified, CE, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited

Maxx Ice MIM500N Specifications
