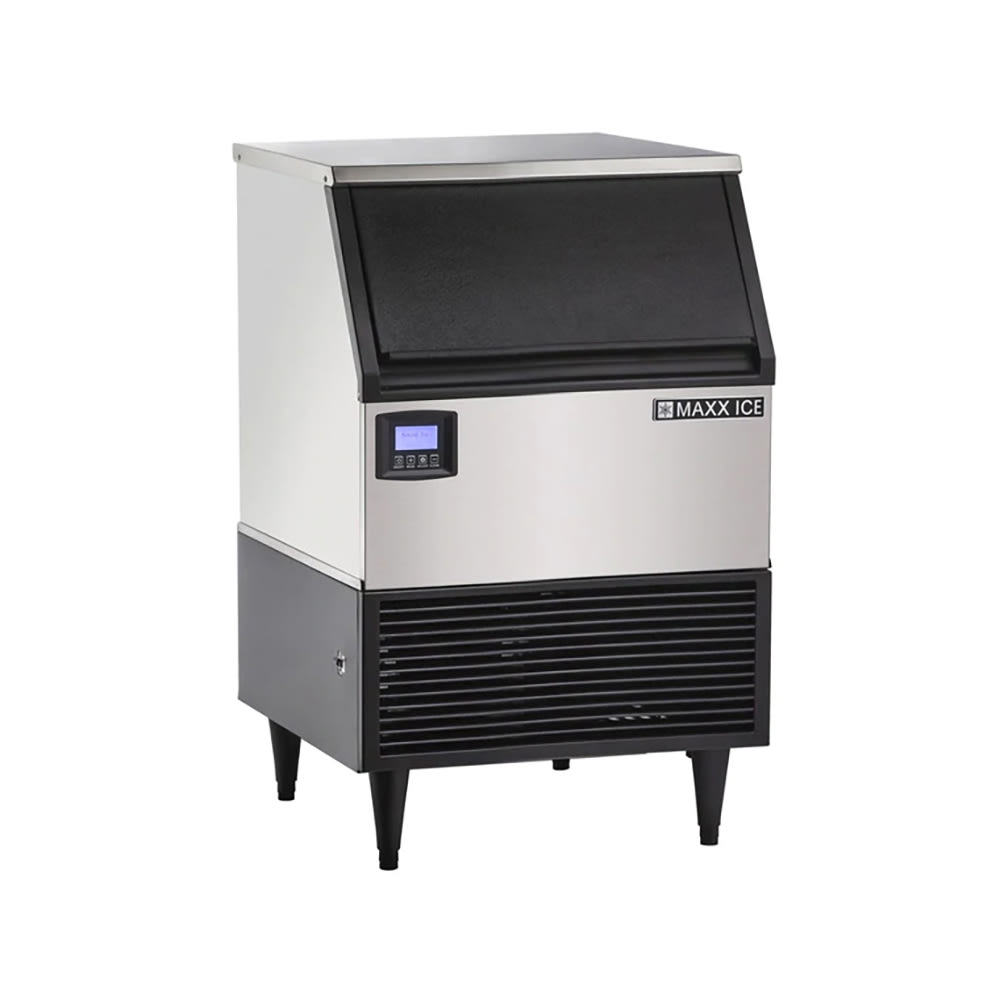

Maxx Ice MIM260NH 24"W Half Cube Undercounter Ice Machine - 265 lbs/day, Air Cooled

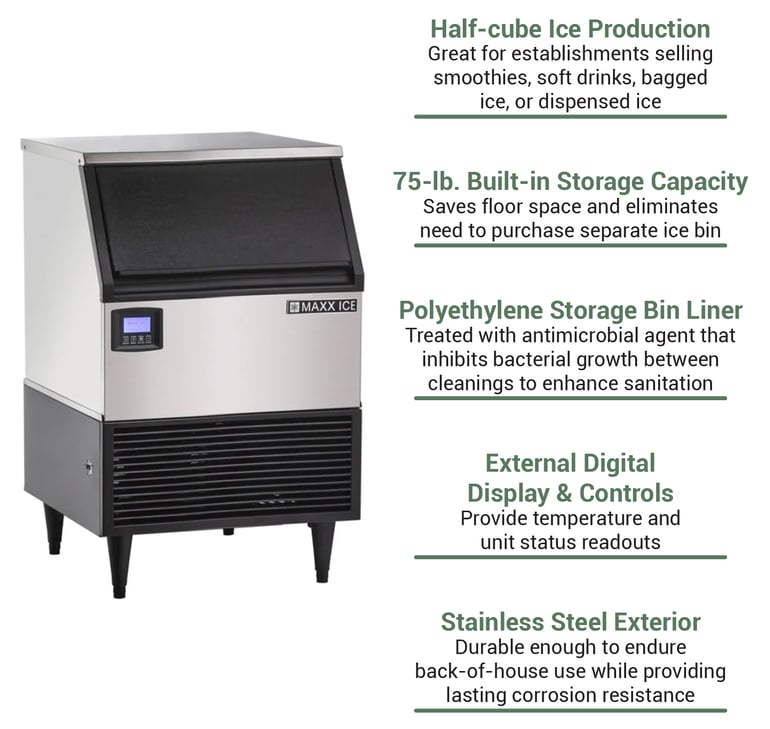

For quick-service restaurants, casual eateries, or convenience stores selling soft drinks or bagged ice, the Maxx Ice MIM260NH self-contained ice machine produces half-cube ice. This type of ice can cool a drink quicker and displace more liquid than full-cube ice to save on beverage costs. When ambient air is 70 degrees Fahrenheit and incoming water temperature is 50 degrees Fahrenheit, this unit can produce 265 pounds of half-cube ice per day. Its self-contained refrigeration system features an air-cooled compressor and a micro-fin condenser that uses less energy than standard ice machines. Because it's part of the Intelligent series, this unit built with an external digital screen that displays temperature and status when the unit is making ice, harvesting ice, or filling water. To ease maintenance, it features an automatic cleaning cycle and bin overflow protection.

Compatible with freestanding or built-in installation, the Maxx Ice MIM260NH undercounter half-cube ice machine measures 24 inches wide by 24 inches deep by 39 inches high and is front breathing. Because it's raised on adjustable 6-inch leveling legs, it can be adjusted to accommodate irregular or sloped flooring and minimize wobbling or rocking during operation. For lasting corrosion resistance and simplified cleaning, its exterior is made of rugged stainless steel accented with black trim to add a sleek, upscale accent matching existing equipment. Inside the unit, an integrated ice bin can store 75 pounds of ice, while its polyethylene liner is treated with an antimicrobial agent that inhibits microbial growth between cleanings for improved sanitation. To enhance visibility when staff scoop ice from the bin, the interior is illuminated with a blue LED light. A built-in internal scoop holder provides a safe, clean space to store the included ice scoop.

Ice Maker Details

• Part of the Intelligent series
• 265-lb. maximum daily ice production
• Can be built-in or installed freestanding
• Front-breathing condenser
• Produces half-cube ice
• Half-cube ice size:²²⁄₂₅ in. x ¹⁄₂ in. x ²²⁄₂₅ in.
• External digital screen features temperature and unit status readouts
• Programmable, user-friendly digital controls
• Automatic cleaning cycle
• Bin overflow protection
• Stainless steel exterior with black trim
• Self-contained refrigeration system with air-cooled compressor
• Micro-fin condenser saves energy
• Removable air intake filter
• R-404a refrigerant
• ³⁄₄-in. gravity drain line required for installation
• 2-in. wall clearance recommended
• Water filter recommended
• Uses 13.3 gal. of water per 100 lbs. of ice
• Required ambient air temperature range: 50-100 degrees F
• Required incoming water temperature range: 41-90 degrees F
• Required incoming water pressure range: 15-80 PSI

Ice Bin Details

• 75-lb. storage capacity
• Antimicrobial-treated polyethylene storage bin liner
• Blue LED interior lighting
• Includes internal scoop holder with ice scoop
• 6-in. leveling legs can be raised or lowered

Dimensions & Utilities

• 24 in. W x 24 in. D x 39 in. H
• 7.1-9.8 A
• 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• ³⁄₈-in. FPT water supply line connection

Product Features

*Free shipping on Maxx Ice MIM260NH within the 48 contiguous states.

From The Manufacturer

Digital Undercounter Ice Maker With Bin, cube-style (half dice), air-cooled, self-contained condenser, approximately 265 lb. production/24 hours, 75 lb. built-in storage capacity, digital display & controls, automatic cleaning, overflow prevention, internal LED light, polyethylene storage bin liner, stainless steel exterior with black trim, 6" adjustable legs, R404a refrigerant, NSF, cULus Classified

*Image may not depict product color, inclusions or accessories.

1-year Limited
