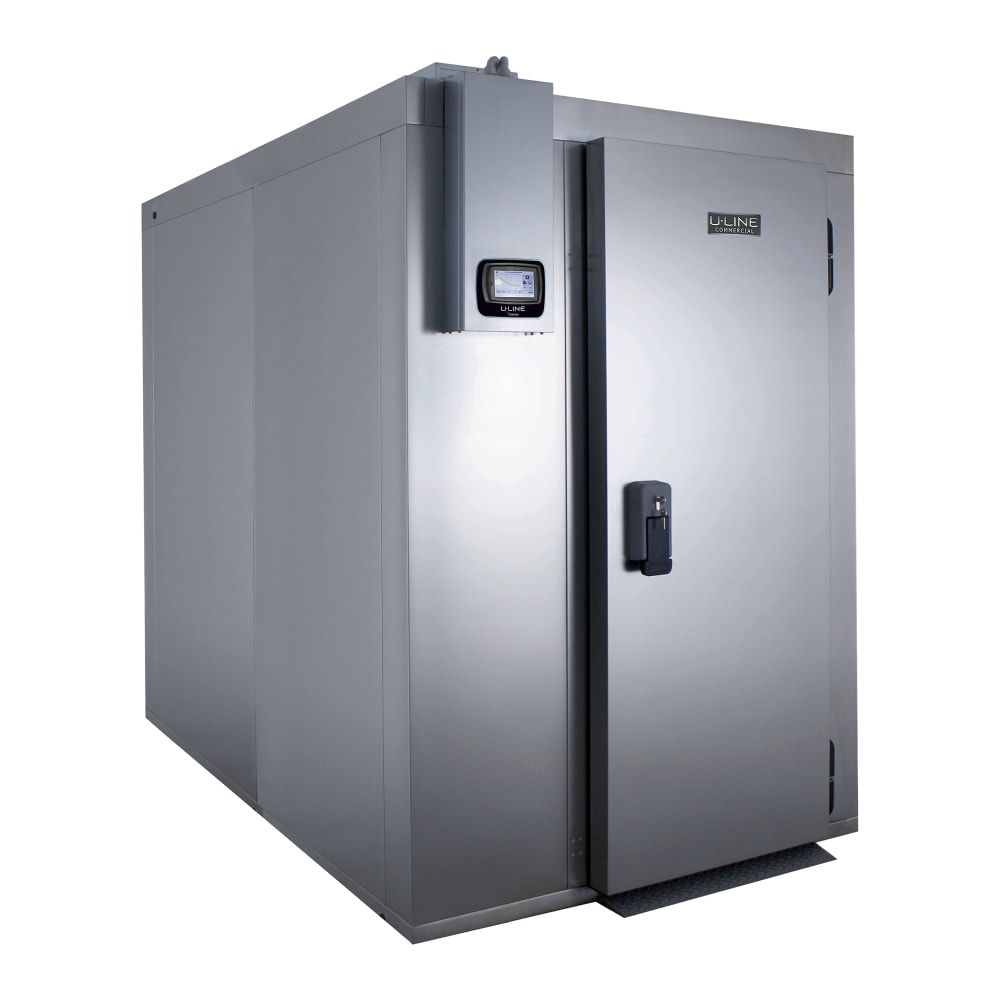

U-Line UCBF659-SS12A 60" Floor Model Roll In Blast Chiller/Shock Freezer - (40) Pan Capacity, 220v/1ph

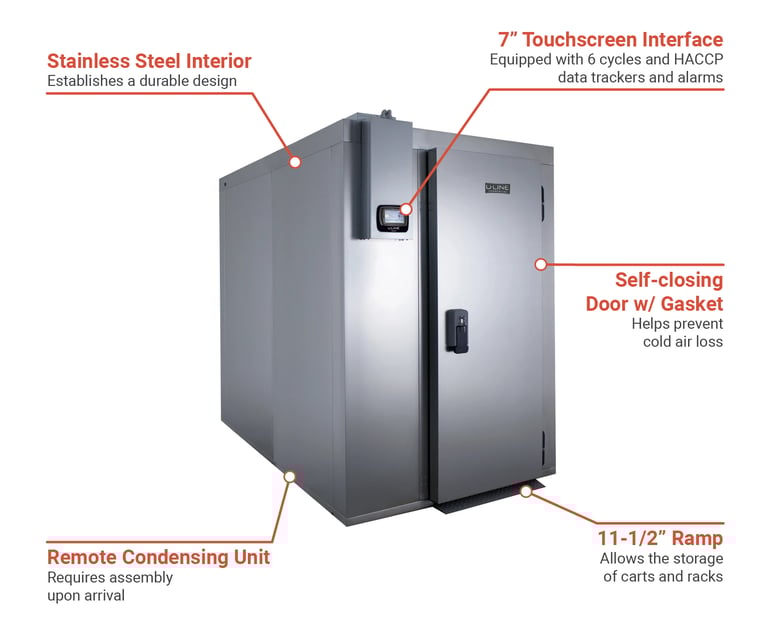

The U-Line UCBF659-SS12A floor-model roll-in blast chiller/shock freezer features a 40-pan capacity. With blast chilling, it yields 617 pounds, and its shock freezing configuration yields 507 pounds. It’s made of stainless steel for durability and corrosion resistance., while the self-closing door creates an airtight seal to reduce cold air loss. For thorough cleaning, the air gasket is removable. For racks and carts alike, the 11¹/₂-inch ramp allows for easy insertion of equipment. Granting a design that’s maintainable and simple to clean, the corners are rounded.

The 7-inch control panel of the roll-in chiller and freezer is side mounted and simple to operate. It offers the following cycles: soft chill, hard chill, soft freeze, holding, and end of cycle to maximize holding potential. The HAACP data tracker and alarms allow employees to consistently track operating conditions. It has an adjustable range from -40 to 50 degrees Fahrenheit, and the temperatures are tracked with the multi-core probe with four reading points.

The U-Line UCBF659-SS12A roll-in blast chiller/shock freezer condensing unit is included. However, the condenser is fully remote and requires assembly upon arrival. To support even air, the unit is equipped with a sealed cast iron evaporator fan motor. The evaporator compartment can be removed for maintenance or service as needed.

Product Details

• Blast chiller/shock freezer roll-in cabinet
• 40-pan capacity
• 617-lb. blast chilling yield
• 507-lb. shock freezing yield
• Fits 2 full-sized speed racks or 2 combi carts
• Stainless steel interior
• Self-closing door
• Removable door gasket
• Rounded interior corners
• 11¹/₂-in. ramp

Digital Interface

• 7-in. digital touch screen
• Cycles: soft chill, hard chill, soft freeze, hard freeze, holding, and end-of-cycle mode
• HACCP data tracker and alarms
• Multi-core probe with 4 reading points
• Temperature holding range: -40 to 50 degrees F

Refrigeration System

• R452A refrigerant
• Remote condensing unit included
• Automatic defrost system
• Blast chilling range: 194-37 degrees F
• Shock freezing range: 194-0 degrees F
• Self-lubricating evaporator fan
• High-volume airflow
• Removable evaporator compartment

Dimensions & Utilities

• Cabinet
  • 59¹/₁₆ in. W x 75²⁹/₃₂ in. D x 88⁷/₈ in. H
  • 4 A
  • 220 V/60 Hz/1 ph
• Remote condenser
  • 56¹/₈ in. W x 40¹/₂ in. D x 28 in. H
  • 47.1 A
  • 220 V/60 Hz/3 ph

Product Features

*Free shipping on U-Line UCBF659-SS12A within the 48 contiguous states.

From The Manufacturer

U-Line Commercial 40 tray blast chiller/ shock freezer, roll-in (cabinet), UCBF659-SS12A cabinet dimensions: 88 7/8" H x 59 1/16" W x 75 29/32" D, UCBF659-SS12A remote condenser unit dimensions: 28"H x 56-1/8" W x 40-1/2" D, holds: (2) full-sized speed racks 18" x 26" sheet pans or (2) combi carts (70.05"H x 30.35"W x 35.15"D), fits 2 full-sized speed racks or combi carts (not included), auto defrost, blast chilling yield (194°F to 37°F in 90 min): 617 lb / Shock freezing yield (194°F to 0°F in 270 min): 507 lb, removable door gasket, and evaporator compartment, multi-core probe with 4 reading point, R452A refrigerant, remote condensing unit included (assembly required), operating temperature range: -40°F to 50°F, 33’ run distance, Self-closing door with 105° stop, 7" digital touch screen control with HACCP data tracker and alarms. Cycles include soft chill, hard chill, soft freeze, hard freeze, holding, and end of cycle hold mode, 11.2" ramp included, AISI 304 Stainless steel interior

*Image may not depict product color, inclusions or accessories.

U-Line UCBF659-SS12A Specifications

Spec Attribute	Spec Value
Manufacturer	U-Line
Compressor Location	Left
Depth (in)	75.91
Hertz	60
Pan Capacity	40
Phase	1
Product	Blast Chillers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R452A
Special Features	Auto Defrost
Special Features	HACCP Record Keeping
Special Features	Probe
Special Features	Roll-In
Special Features	Shock Freezer Performance
Type	Floor Model
Voltage	220
Warranty	3-year Parts & Labor; 5-year Sealed System Parts
Width (in)	59.06
Weight	2491.00
