Hobart HSL220-1 170 qt Spiral Mixer - Floor Model, 208v, 3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 617-HSL2201 • MPN: HSL220-1
Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Price: $26,926.90
Call Us For Pricing

Image may not depict product color, inclusions or accessories.

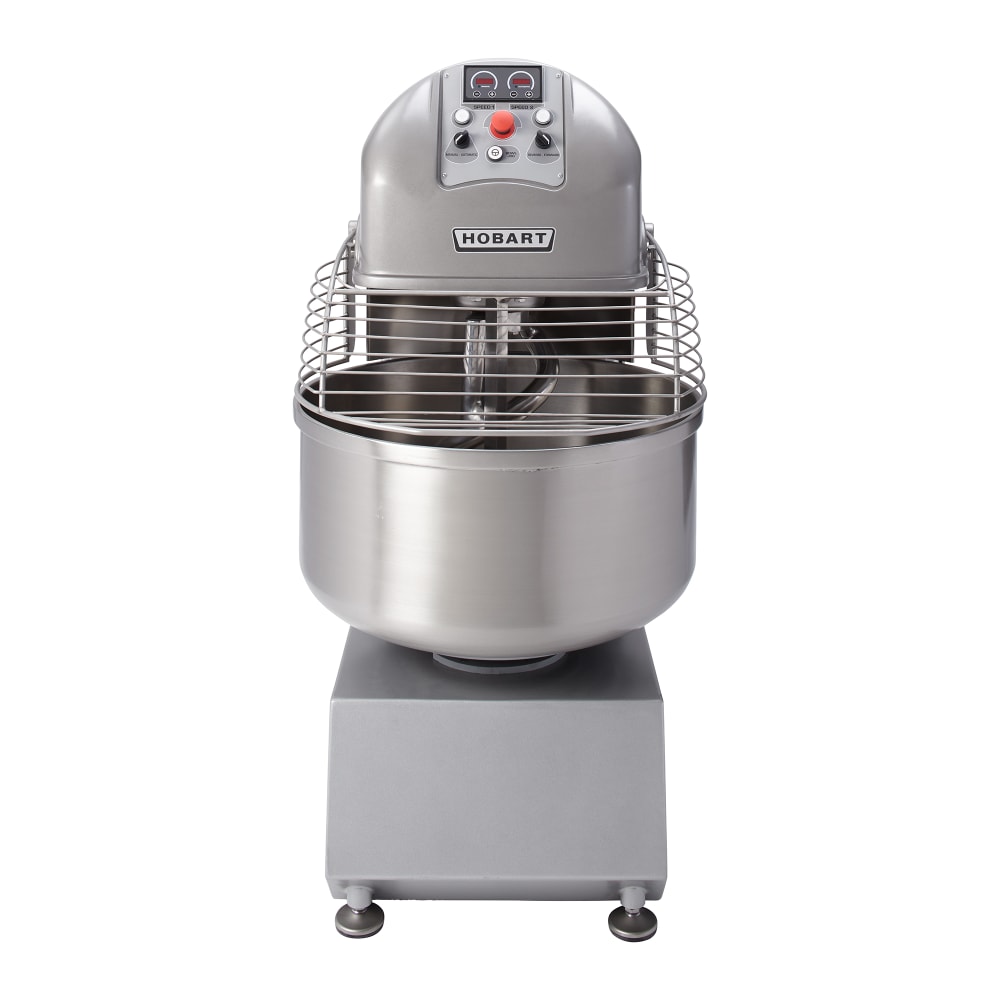

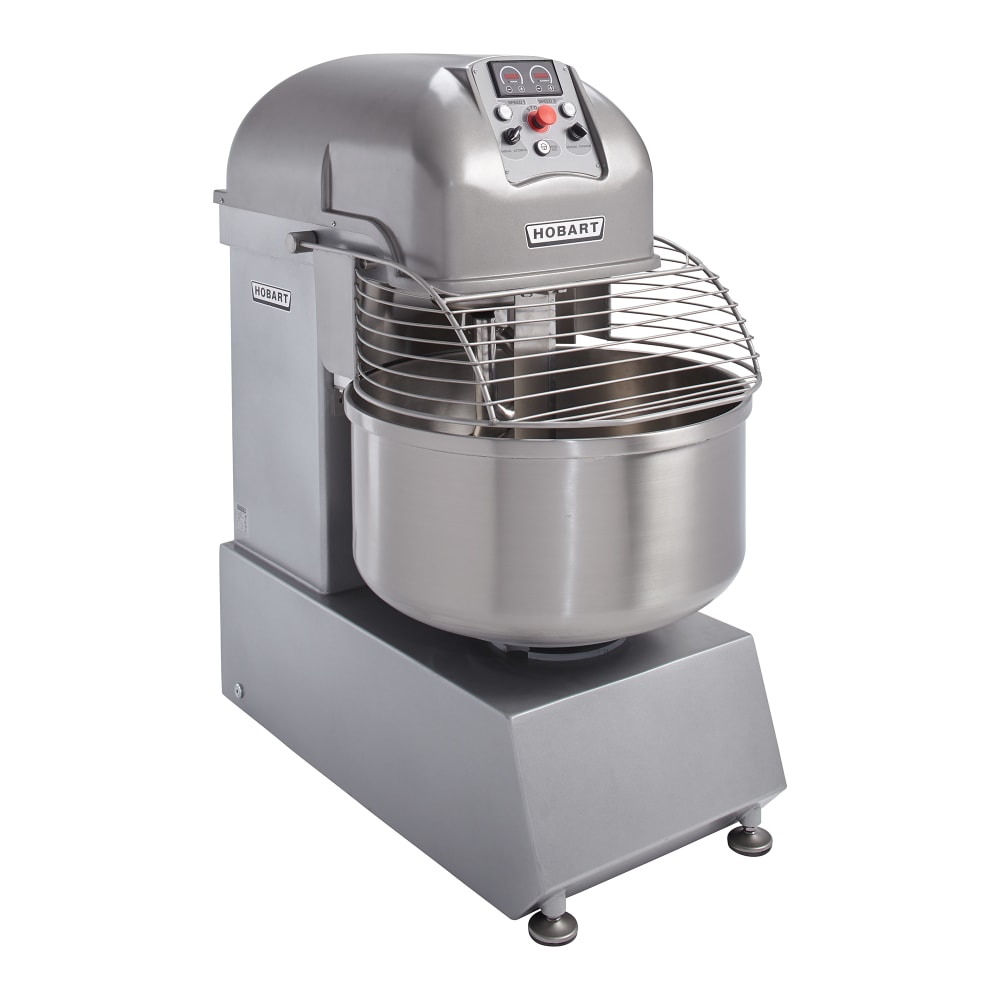

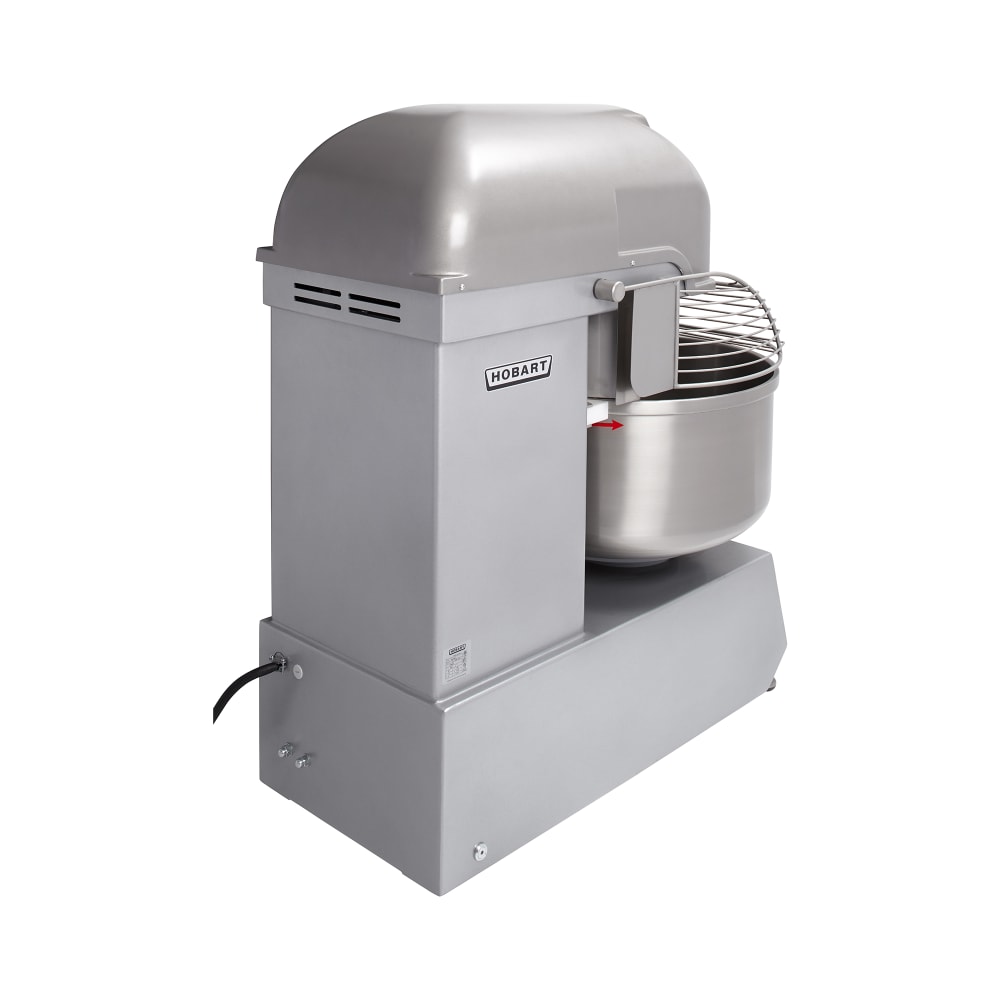

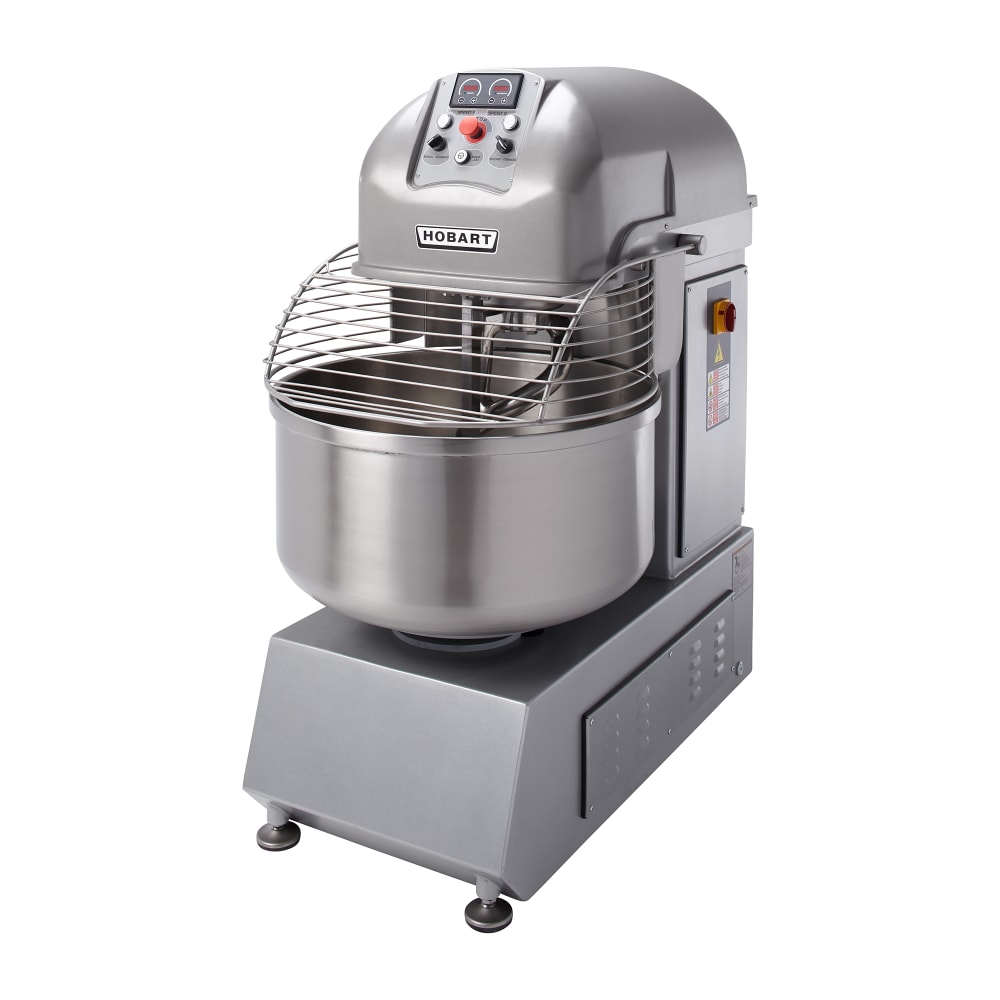

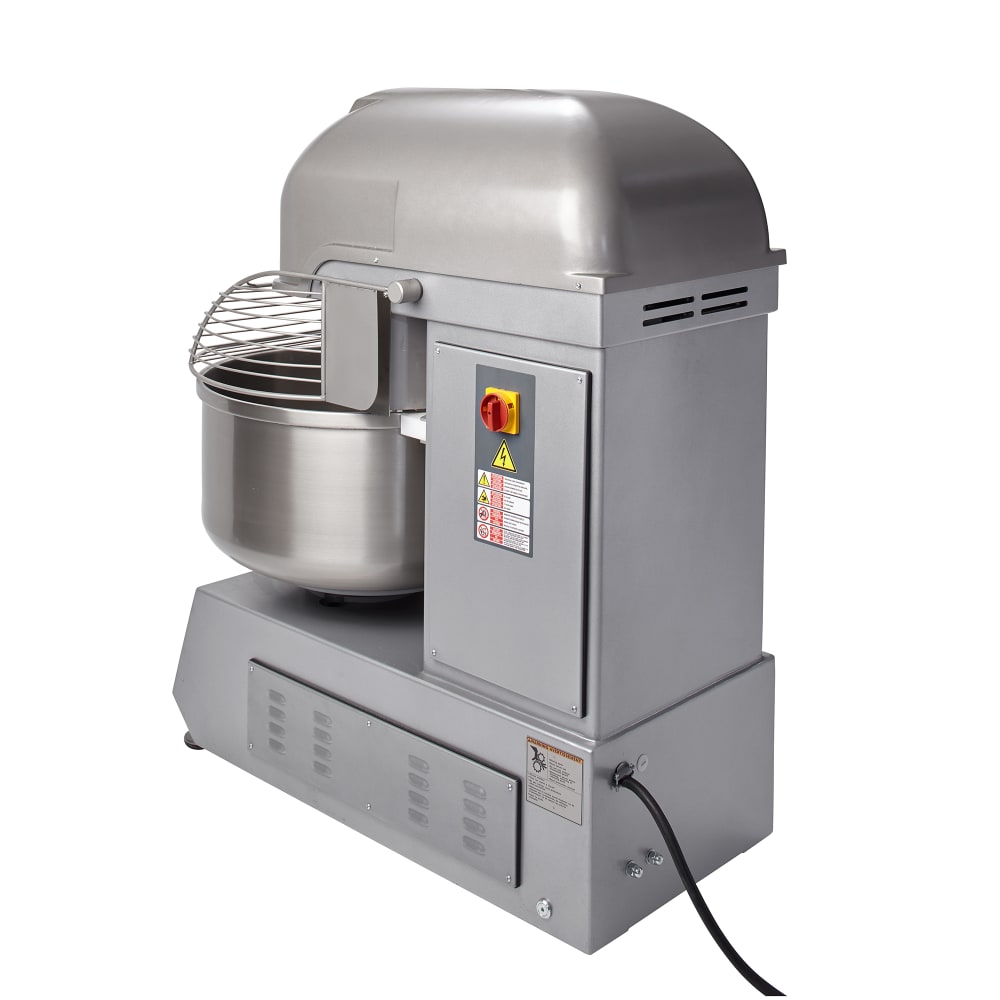

Hobart HSL220-1 Description


The Hobart HSL220-1 spiral floor mixer can hold up to 220 pounds of dough. The bowl is completely constructed from stainless steel, which allows for long-term use and heavy-duty conditions. The bowl is surrounded by a wireform bowl guard interlock that prevents spiral arm operation when the guard is out of position. The wireform guard makes it possible to observe the mixer while it is in progress and add ingredients without stopping the mixing process.

The dual electronic timer control allows the mixer to shift automatically from the low to the high speed when set by the operator. This setting can increase productivity and be set between 0 and 20 minutes. This Hobart HSL220-1 spiral mixer has adjustable front feet to stabilize the unit. This model also includes front and rear casters, which provide easier mobility of this large unit.

Product Details

  • Perfect for mixing doughs for bakeries and pizzerias
  • 220 lb. capacity
  • Stainless steel bowl resists scratches
  • Two speed options
  • Automatic transition from the first speed to the second with dual electronic timer controls
  • Bowl drive rides on ball bearings for extra stability
  • Reversible bowl drive helps with high production
  • Bowl jog control makes it easy to unload and allows for quicker batch turnaround
  • Stainless steel wireform bowl guard keeps ingredients from flying out
  • Durable aluminum cast cover and steel body frame for commercial use
  • Front and rear casters make moving the mixer easier
  • Adjustable front feet stabilize unit
  • 208 V/60 Hz/3 ph, 34 A
  • Overall Dimensions: 28.74 in. W x 48.03 in. D x 70.08 in. H
  • cETLus and ETL-Sanitation listed

Hobart Spiral Mixer, 6.0 HP spiral motor & .75 HP bowl motor, 220-pound capacity, two fixed speeds with dual 20 minute timers plus a reverse speed & Jog Control feature. Has an extra pulley & strong SS spiral dough hook, 208v/60/3

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hobart HSL220-1 Specifications

PDF Spec Sheet
Manufacturer Hobart
Warranty 1 year parts & labor
Color Gray
Cord Attached No
Design Floor Model
Dough Capacity (lb) 220
Hertz 60
HP 6
Type Spiral Mixer (Dough & Pizza)
Voltage 208
Transmission Belt Driven
Phase 3
Product Mixer
Made in USA Yes
Product Type Food Prep Equipment
Bowl Capacity (qts) 170
Controls Digital
Flour Capacity (lb) 120
Bowl hp 3/4
Special Features Includes Accessories
Special Features Safety Guard
Special Features Timer
No. of Speeds 2
Weight 1446.00
