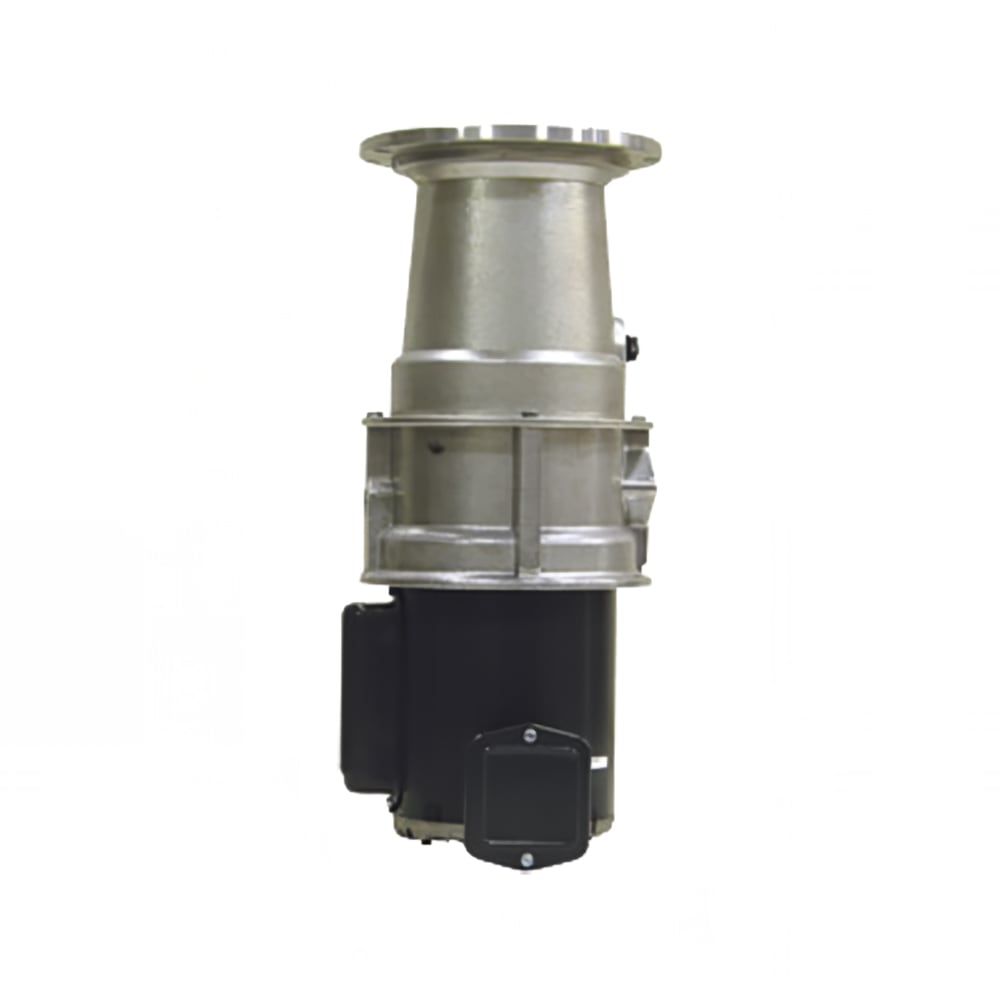

Hobart FD4/75-3 Garbage Disposer w/ Short Upper Housing - 3/4 HP, 120/208-240v/1ph
Retail Price: $2,703.00
$1,669.91 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Attention: Order by 06-01-2025 to save before the price increases!
Hobart FD4/75-3 Description
For long-term durability through high-volume settings, the Hobart FD4/75-3 commercial garbage disposal's grind and discharge housings are made of heavy aluminum. Its continuous-duty motor features a manual-reset thermal overload inherent protector to prevent damage, while its permanently lubricated ball bearings improve performance. This unit can be mounted to a 7-inch I.D. throat-opening cone and features a vinyl isolating ring that prevents metal-to-metal contact.
The Hobart FD4/75-3 garbage disposal unit's stationary shredder ring features four machine-ground primary-action breaker bars and 42 secondary-action grinding teeth, ensuring food waste is effectively ground into drainable particles. Its flywheel has a center-mounted breaker blade and measures 63⁄16 inches in diameter. This piece also includes two hardened ductile stainless steel cutter blocks that can be removed and replaced when needed. Overall, this unit measures 11 inches in diameter by 215⁄8 inches high.
Product Details

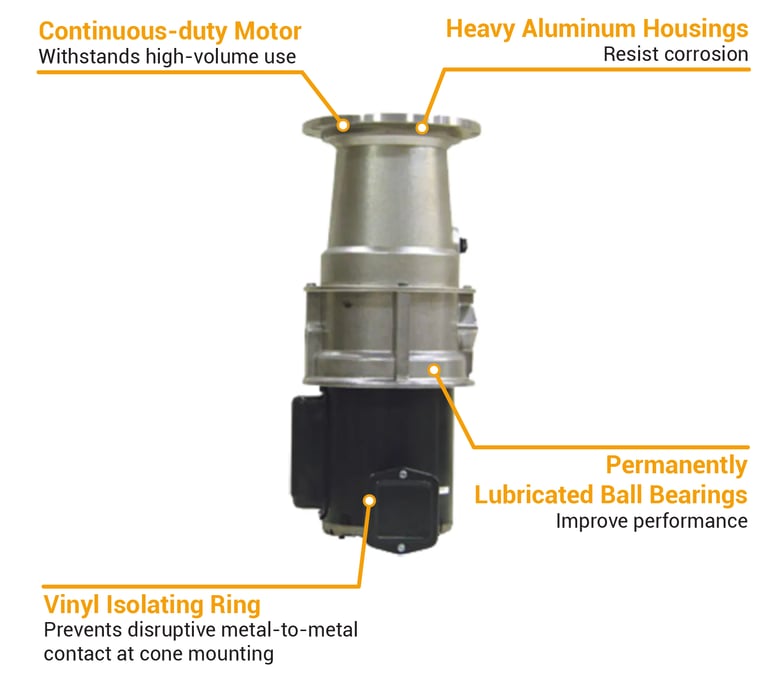

- Heavy aluminum grind and discharge housings
- Continuous-duty motor with manual-reset thermal overload inherent protector
- Permanently lubricated upper and lower shaft support ball bearings
- Stationary shredder ring with 4 machine-ground primary-action breaker bars and 42 secondary-action grinding teeth
- Motor shaft seal
- Dual-directional grinding mechanism
- 63⁄16-in.-diameter flywheel with center-mounted breaker blade
- Fastens to 7-in. I.D. cone (sold separately)
- Vinyl isolating ring prevents metal-to-metal contact at cone mounting
- 2 replaceable hardened ductile stainless steel cutter blocks
- Chrome-plated brass tailpiece enables connection to 11⁄2-in. standard drain trap
Dimensions & Utilities
- 11 in. dia. x 215⁄8 in. H
- 6.3/3.15 A, 3⁄4 HP
- 120/208-240 V/60 Hz/1 ph
Product Features
*Free shipping on Hobart FD4/75-3 within the 48 contiguous states.
From The Manufacturer
Disposer, basic unit only, 3/4 HP motor, aluminum housings
*Image may not depict product color, inclusions or accessories.
Hobart FD4/75-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Hertz | 60 |
| HP | 0.75 |
| Phase | 1 |
| Product | Garbage Disposals |
| Product Type | Commercial Sinks |
| Type | Sink |
| Unit Type | Basic |
| Usage Level | Light Duty |
| Voltage | 120/208/240 |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 72.00 |
