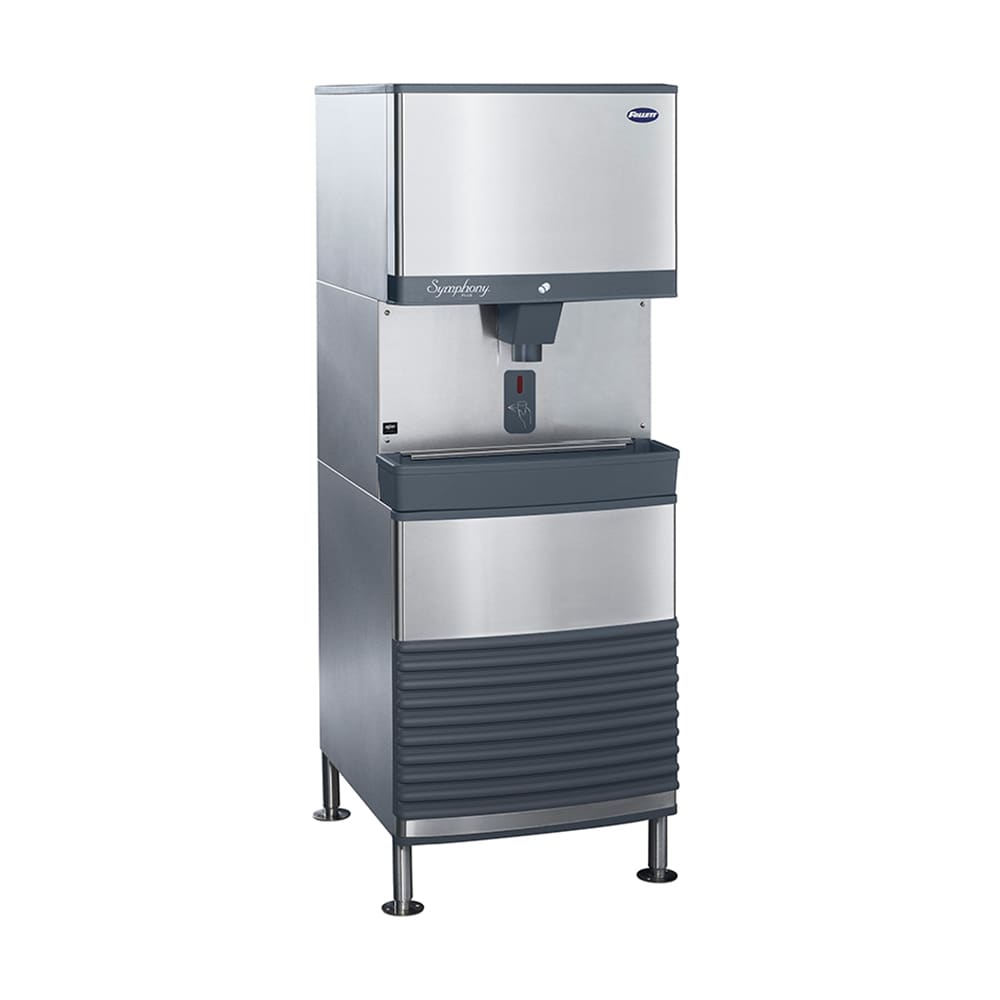

Follett 110FB414A-SI 425 lb Freestanding Nugget Ice Dispenser - 90 lb Storage, Cup Fill, 115v

The Follet 110FB414A-SI freestanding nugget ice dispenser has the capacity to store 90 pounds of ice. This air-cooled unit produces 425 pounds of soft, chewable ice per 24 hours, a form of ice great optimal for patient care. When the dispenser is idle, its Quiet Night™ sleep mode is activated, and the machine is turned off. To remove impurities, this unit automatically self-flushes, and for additional protection of food zone components from drain line contamination, the drain cup features an internal air gap. Agion® silver-based antimicrobial protects key water and ice contact components, and the dispenser can be completely cleaned and sanitized in just 1 hour.

To simplify maintenance, the Follet 110FB414A-SI Symphony Plus™ ice dispenser is equipped with an LED control board that provides status updates. Operators can remove the dispenser's panels for easy access to all its components, and replacement parts are common across all units in the series, facilitating repairs. Extending service life, the dispenser's evaporator and auger are constructed of durable stainless steel. This unit runs on eco-friendly R290 refrigerant, and it's designed with a continuous ice-making process that lowers electricity and water use. The dispenser's cabinet is made of stainless steel with an accent trim.

Product Details

• Part of the Symphony Plus series
• 90-lb. storage capacity
• Freestanding
• 425-lb. maximum daily ice production
• Produces compressed nugget ice
• Quiet Night sleep mode
• Automatic self-flushing configuration
• Drain cup with internal air gap
• Agion silver-based antimicrobial protection
• SensorSAFE™ infrared ice dispense
• LED control board
• Removable panels facilitate component access
• Stainless steel auger and evaporator
• R290 refrigerant
• Continuous ice-making process with low electricity and water use
• Stainless steel cabinet
• Accent trim
• Corrosion-resistant poly drain pan, grille, and dispenser lid
• Secured top lid
• Comes fully assembled
• Installs with electric, water, and drain connections
• Consumes 12 gal. of potable water per 100 lbs. of ice
• Dispense height clearance: 7.75 in.
• 4-in. rear ventilation clearance
• 12-in. top service clearance
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Potable water pressure: 10-70 psi
• Condenser water pressure: 10-125 psi
• 5000-BTU heat transfer capacity

Dimensions & Utilities

• Overall: 26.25 in. W x 29.44 in. D x 68.12 in. H
• Drain pan depth: 7 in.
• ³⁄₈-in. FPT potable water inlet
• ³⁄₄-in. MPT drain dispenser
• ³⁄₄-in. MPT ice machine drain
• 11 A, 0.8 kW
• 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15 hospital-grade plug

*Free shipping on Follett 110FB414A-SI within the 48 contiguous states.

From The Manufacturer

Symphony Plus™ ice-only dispenser, freestanding with SensorSAFE™ dispense, removable air-cooled icemaker, up to 425 lb. production of Chewblet® nugget ice in 24 hours, 90 lb. storage capacity, Agion® silver-based antimicrobial protection, stainless steel cabinet with accent trim, 115v/60/1-ph

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor Parts

Follett 110FB414A-SI Specifications

Based in Pennsylvania, Follet manufactures ice machines and beverage dispensers and specializes in front-of-house ice and water dispensers. Its products include features like RIDE®️ technology, which allows ice to be delivered into dispensers from up to 75 feet away. A Middleby company, Follett has been creating innovative products since 1948.

Documents

Spec Sheet

Installation Guide
