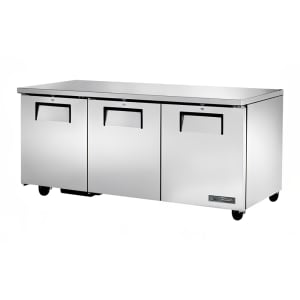

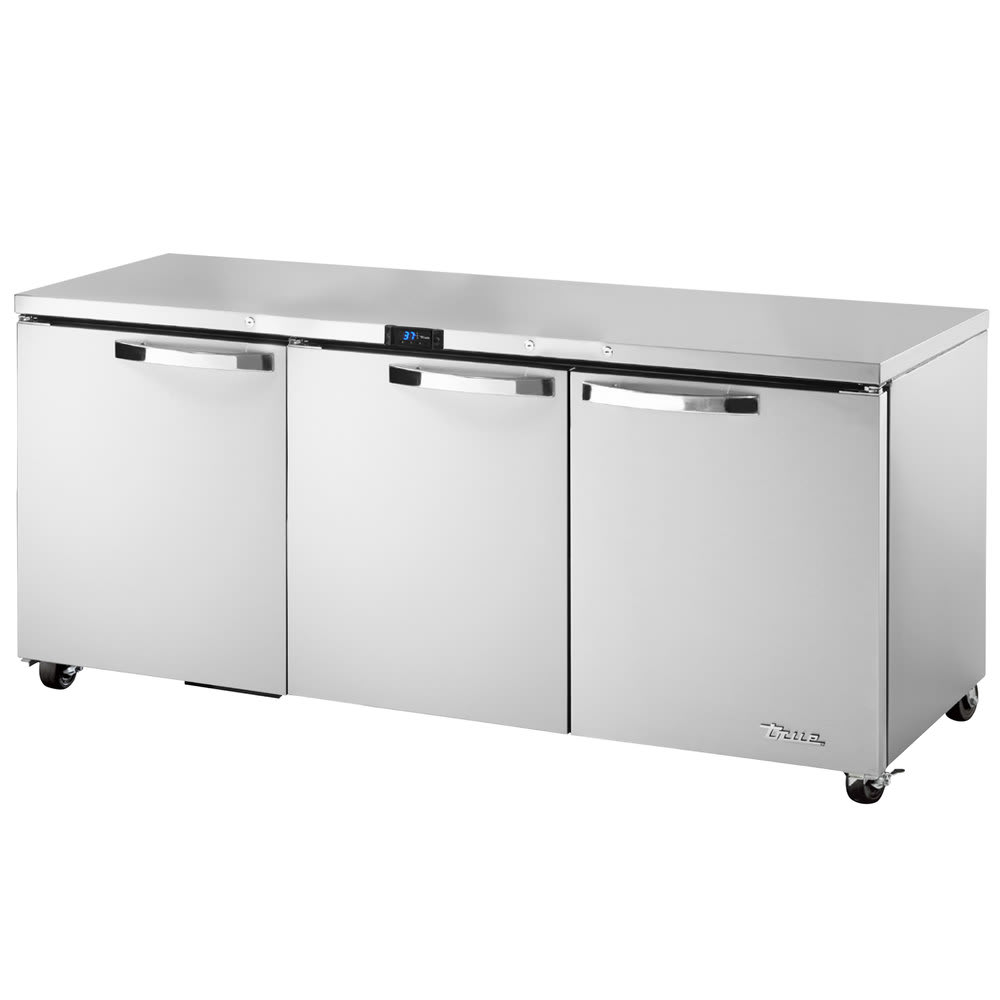

True TUC-72-HC~SPEC3 ADA 72" W Undercounter Refrigerator w/ (3) Sections & (3) Doors, 115v

Made of PVC-coated wire, the six shelves inside the True TUC-72-HC~SPEC3 Spec Series® undercounter refrigerator are adjustable in ¹⁄₂-inch increments, and with maximum storage space, each shelf comes with four chrome-plated clips. The oversized, factory-balanced refrigerator has an extra-large, epoxy-coated evaporator coil balanced with a high-horsepower compressor and large condenser—a design that enables the unit to maintain a set temperature between 33 and 38 degrees Fahrenheit. Its sealed, self-lubricating fan motors and large blade provide efficient, low-velocity airflow. Intended for heavy use in busy restaurants, this product ensures fast temperature recovery and short runtimes, and it uses environmentally friendly R134A refrigerant.

When the compressor turns on, the condensing fan motor blows in an opposite direction for 20 seconds to help remove settled dirt and dust from the condensing coil. Though this automatic mechanism helps improve coil performance, regular preventive maintenance is still required to ensure the coil is operating correctly.

The True TUC-72-HC~SPEC3 stainless steel refrigerator has a 34-inch work surface height and 3-inch-diameter stem castors for movement. Its entire cabinet and solid doors are foamed in place using polyurethane insulation, while the lockable, self-closing doors have a clear-coated aluminum liner that matches the cabinet interior. To facilitate stocking, the doors stay open past 90 degrees, but they can also close on their own to contain cold air. This unit features an electronic temperature control with a digital display.

Product Details

• Part of the Spec Series
• Extra-large evaporator coil and high-horsepower compressor
• Operating temperature range: 33-38 degrees F
• Uses R134A refrigerant with guided airflow technology to provide uniform temperatures
• Epoxy-coated evaporator fan motors are sealed, cast iron, and self-lubricating
• Large fan blades provide low velocity, high volume, short run times, and quick temperature recovery
• Automatic condensing fan motor technology blows dust off condensing coil

• Condensing unit in back of cabinet for convenient access
• Stainless steel cabinet and doors
• Doors are lined with clear-coated aluminum
• Cabinet and doors are foamed in place with polyurethane insulation
• 3-in.-diameter stem castors
• 34-in. work surface height
• Positive-seal doors are self-closing, lockable, and swing within cabinet dimensions
• Doors have 90-degree, stay-open feature and magnetic gaskets that are removable without tools
• 6 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• 4 chrome-plated clips included per shelf
• Electronic temperature control with digital display
• Countertop front is flush with front of doors
• Heavy-duty, 16-ga. top
• 20-ga. doors

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 8.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-72-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (3) heavy-duty stainless steel doors, steel handles, door lock standard, (6) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
