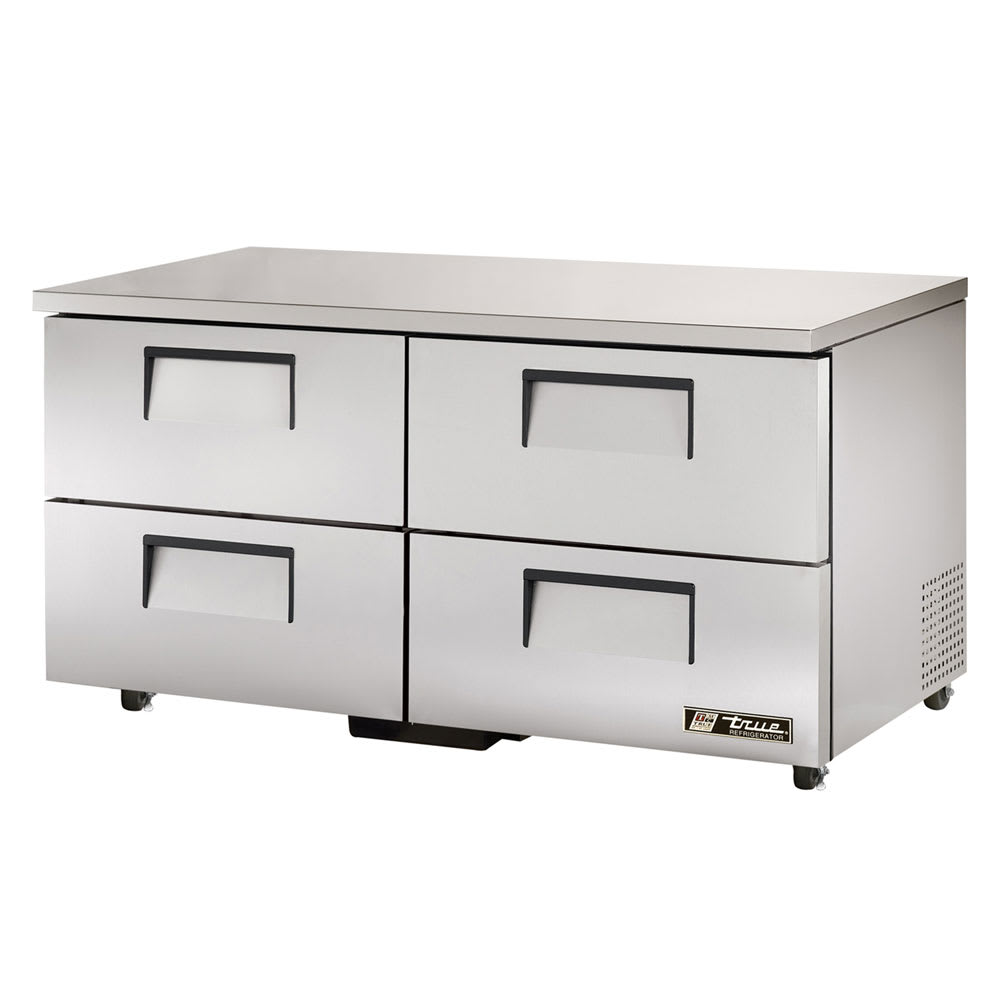

True TUC-60D-4-HC ADA 60" W Undercounter Refrigerator w/ (2) Sections & (4) Drawers, 115v

The True TUC-60D-4-HC undercounter refrigerator has four stainless steel drawers fitted with 12-inch-long, recessed handles that are kept in place with a sheet metal interlock. Each drawer can hold numerous small pans when pan divider bars are added or one full-size pan. To minimize cold-air leaks, the drawers have magnetic gaskets that can be removed for cleaning or replacement. Furnished with a stainless steel top, front, and ends, this unit is durable and resists corrosion, while its GalFan-coated steel back can be quickly wiped down. Its high-density polyurethane insulation has zero global warming potential and improves the cabinet's structure.

Maintaining a set temperature from 33 to 38 degrees Fahrenheit, this True TUC-60D-4-HC undercounter refrigerator has a capillary tube system that uses R290 hydrocarbon refrigerant. Its electronically commutated evaporator and condenser fan motors reduce energy consumption and heat production. Accessible from the back, the condensing unit slides out and can be cleaned efficiently. This unit features a digital temperature display and an epoxy-coated evaporator to fight corrosion.

To maintain a clean condensing coil that performs optimally over time, the compressor’s fan motor features a self-cleaning function. Each time it starts up, it reverses for a 20-second to blow away settled dirt and dust from the coil. This mechanism, when combined with regular preventive maintenance, can improve efficiency and lengthen the unit’s lifespan.

Product Details

• 34-in. work surface height, complying with ADA requirements
• Cabinets made of stainless steel front, top, and ends with a GalFan-coated steel back
• Insulated with foamed-in-place polyurethane to retain cold air
• 3-in.-diameter stem castors
• Temperature holding range: 33-38 degrees F
• Evaporator and condenser fan motors provide great reliability
• Reversing compressor fan motor cleans condensing coil for 20 seconds each cycle

• Capillary tube system uses R290 hydrocarbon refrigerant
• Balanced refrigeration system for uniform airflow
• Rear-accessible condensing unit streamlines cleaning
• 4 drawers have magnetic gaskets and 12-in.-long, recessed handles with a sheet metal interlock
• Stainless steel drawer slides and rollers
• Drawers accommodate 1 full-size food pan (sold separately) as well as pan divider bars for fitting various other sizes
• Exterior digital temperature display
• Evaporator is epoxy coated to eliminate corrosion

Dimensions & Utilities

• 60³⁄₈ in. W x 31¹⁄₁₆ in. D x 33¹¹⁄₁₆ in. H
• 4 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-60D-4-HC ADA within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator, 34" working height, 33 - 38°F, (4) drawers each, accommodates (1) 12" x 20" x 6" food pan (NOT included), stainless steel top & sides, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
