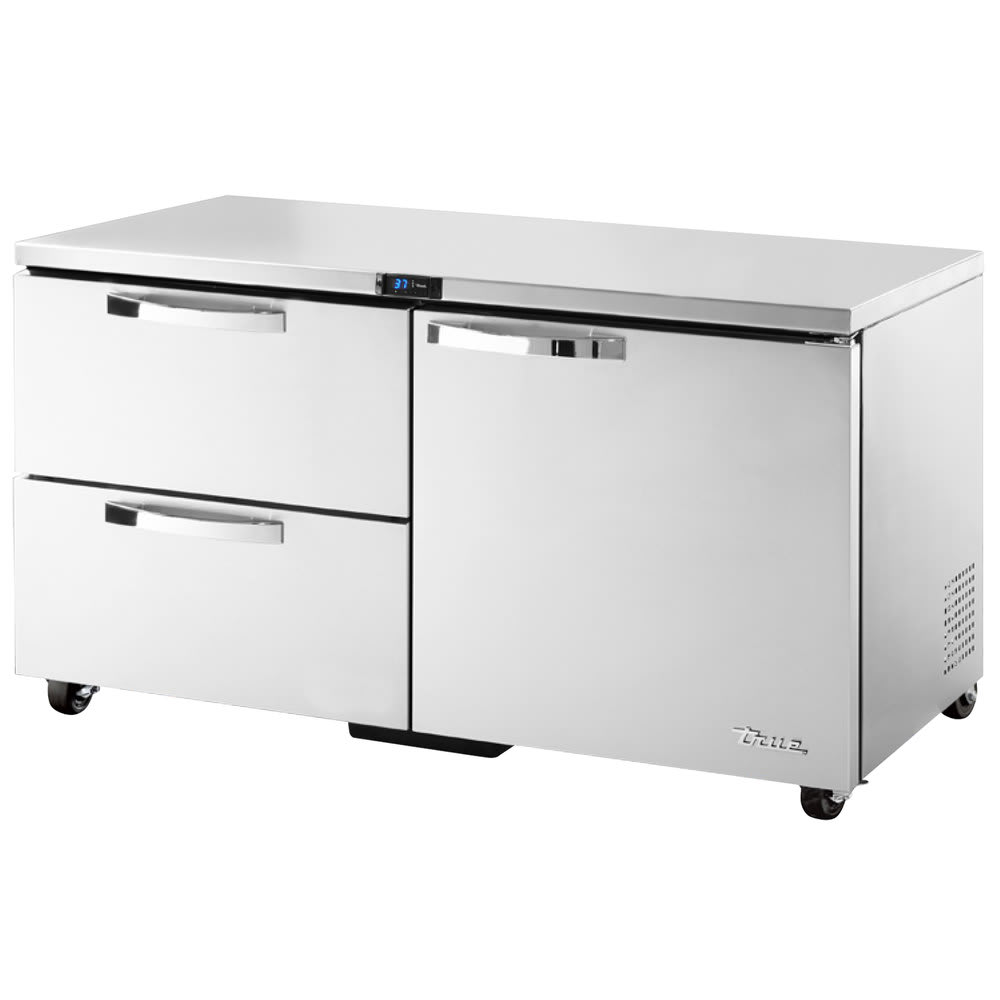

True TUC-60D-2-HC~SPEC3 ADA 60" W Undercounter Refrigerator w/ (2) Sections, (1) Door & (2) Drawers, 115v

The True TUC-60D-2-HC~SPEC3 Spec Series® undercounter refrigerator includes two PVC-coated shelves, each of which has four chrome-plated shelf clips and shelf support pilasters that match the cabint interior. Users can adjust the shelves on ¹⁄₂-inch increments to fit the items they need. The 16-gauge countertop front is flush with the front of the 20-gauge door and drawers, and the operator can check the temperature with the digital display on the front. Operators can set the temperatures on the electronic controller.

Optimizing performance as well as lowering energy consumption, the compressor’s fan motor blows air in reverse for 20 seconds every cycle; this function removes any dirt that’s settled on the condensing coil. Intended to be employed alongside routine preventive maintenance, this self-cleaning feature helps improve efficiency and lengthen the lifespan of the unit.

High-density, polyurethane insulates the solid door, cabinet structure, and drawer facings, while the True TUC-60D-2-HC~SPEC3 undercounter refrigerator has 3-inch diameter stem castors and a 34-inch-tall work surface that is compliant with Americans with Disabilities Act requirements. In the cabinet is a coved stainless steel floor and stainless steel liner that simplify cleaning. To withstand heavy use, stainless steel makes up the front, top, sides, and back of the cabinet exterior.

Product Details

• Part of the Spec Series
• Each shelf has 4 chrome-plated shelf clips
• Same material that constructs the cabinet interior is used for the shelf support pilasters
• Shelves can be adjusted by users on ¹⁄₂-in. increments
• Countertop front is flush with front of drawers and door
• Electronic temperature control is equipped with digital display
• 16-ga. top and 20-ga. door
• High-density, polyurethane insulates door, cabinet, and drawer facings
• Coved stainless steel floor and stainless steel liner inside cabinet
• Heavy-duty stainless steel front, top, sides, and back
• Door section locks
• Tool-free removal feature simplifies drawer and door gasket cleaning
• 1-piece gaskets
• Cabinet construction matches door construction
• Stainless steel drawer frames, facings, liners, slides, and rollers
• Tool-free removal feature on slides and rollers
• Each drawer accommodates 1 full-size 12-in. L x 20-in. W x 6-in. D food pan (sold separately)
• Varying size pan configurations with pan divider bars are supported by drawer (pans and divider bars sold separately)
• 90-degree stay-open door swings within cabinet dimensions
• Door has positive-seal and self-closing features
• Drawers and door are fitted with all-metal handle
• Equipped with 3-in.-diameter stem castors
• 34-in. tall work surface is compliant with ADA requirements

Refrigeration System

• Evaporator is epoxy coated to resist corrosion
• Energy-efficient, balanced system provides uniform product temperatures
• Slide-out condensing unit is accessible in the back of the cabinet
• Electronically commutated motors are more reliable and energy efficient than prior models
• Reversing compressor fan motor blows dirt off condensing coil each cycle

• Temperature holding range: 33-38 degrees F
• Capillary tube system is self-contained
• Uses R290 hydrocarbon refrigerant

Dimensions & Utilities

• Shelves: 27¹⁄₂ in. L x 16 in. D
• Overall: 60³⁄₈ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 4 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-60D-2-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (1) heavy-duty stainless steel door with lock, (2) PVC coated adjustable wire shelves, (2) drawers each, accommodates (1) 12" x 20" x 6" food pan (NOT included), steel handles, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
