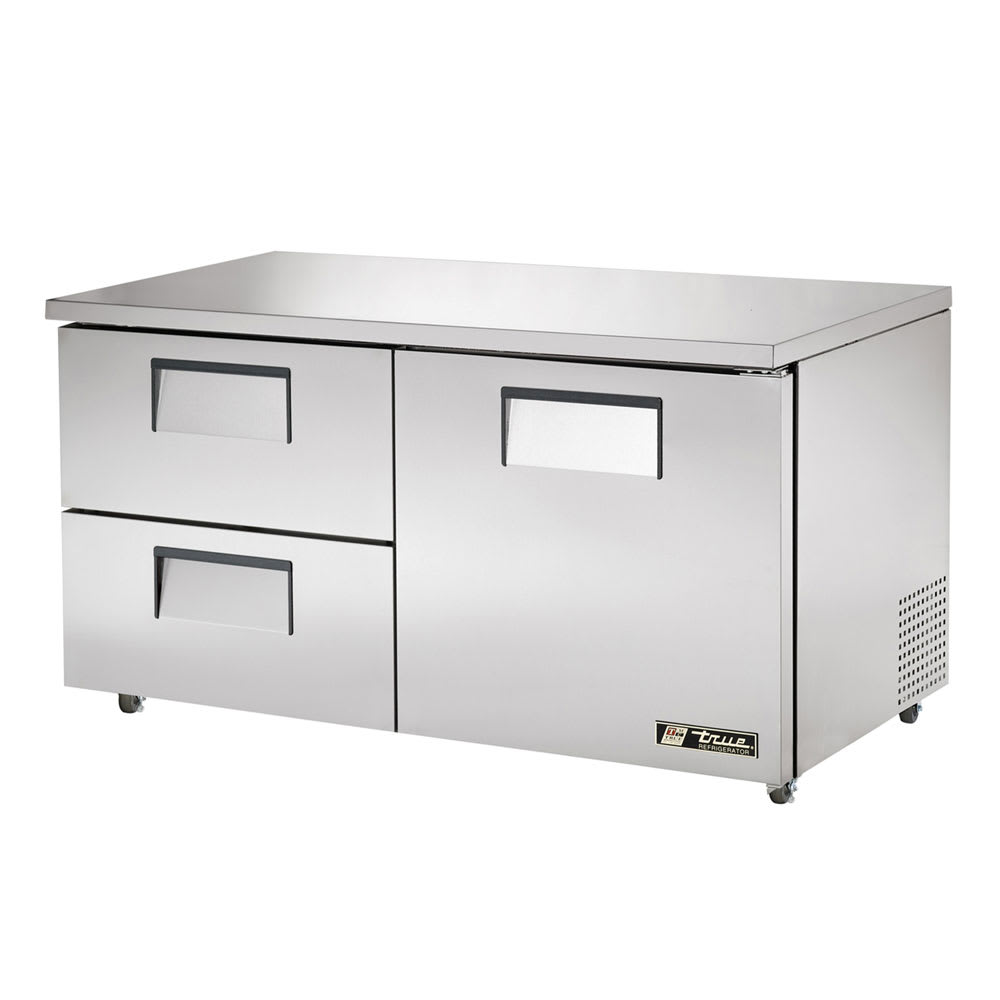

True TUC-60D-2-HC ADA 60" W Undercounter Refrigerator w/ (2) Sections, (1) Door & (2) Drawers, 115v

The fan motors in the True TUC-60D-2-HC undercounter refrigerator produce minimal heat by moving a consistent volume of air through the interior, as this guided airflow provides uniform product temperatures, which are adjustable from 33 to 38 degrees Fahrenheit. To reduce maintenance needs, an epoxy coating on the evaporator lowers corrosion risks.

The compressor’s fan motor runs in reverse for 20 seconds each time it starts up; this function blows away buildup and dirt from the condensing coil.  Though this feature improves efficiency, reduces energy consumption, and lengthens the unit’s lifespan, regular preventive maintenance will still need to be carried out.

Stainless steel construction on the front, top, and ends of the True TUC-60D-2-HC undercounter refrigerator, as well as the drawer facings, liners, and frames. Its stainless steel drawer slides and rollers have a tool-free removal feature to ease cleanup. Each drawer can accommodate one full-size 12-inch by 20-inch by 6-inch food pan, or various pan configurations with divider bars. With self-closing, positive-seal, and 90-degree stay-open features, the door swings within the dimensions of the cabinet. Inside the door, product can sit on the floor and two wire shelves, which are adjustable in ¹⁄₂-inch increments to hold short or tall items.

Product Details

• Door constructed of stainless steel on the exterior and clear aluminum on the interior to match the cabinet construction
• Stainless steel facings, liners, and frames on the drawers
• Drawer and door gaskets have a tool-free removal feature
• Door swings within the dimensions of the cabinet
• Self-closing door has positive-seal and 90-degree stay-open features
• Stainless steel drawer slides and rollers have tool-free removal feature
• Each drawer can accommodate 1 full-size 12-in. L x 20-in. W x 6-in. D food pan (sold separately)
• Drawer will support pan divider bars with various pan size configurations
• Door and drawers are fitted with a 12-in.-long recessed handle
• High-density, polyurethane foams in place cabinet, door, and drawer facings
• Corrosion-resistant exterior has stainless steel front, top, and ends with GalFan-coated steel back
• Attractive, clear-coated aluminum lines the interior
• Coved stainless steel floor does not have sharp corners that trap food
2 PVC-coated wire shelves
• 4 chrome-plated shelf clips come with each shelf
• Shelf placement can be adjusted in ¹⁄₂-in. increments
• Pilasters provide shelf support and are made of the same material of the cabinet interior
• Stem castors have 3-in. diameter
• 34-in. working height complies with ADA requirements

Refrigeration System

• Electronically commutated motors produce minimal heat by moving a consistent volume of air
• Fan compressor’s 20-second reversal mechanism keeps condensing coil clean

• Energy-efficient system and guided airflow provide uniform product temperatures
• Epoxy evaporator coating reduces corrosion potential
• Temperature holding range: 33-38 degrees F
• Condensing unit simplifies maintenance with back-of-cabinet slide-out feature
• Self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant

Dimensions & Utilities

• Shelves: 27¹⁄₂ in. L x 16 in. D
• Overall: 60³⁄₈ in. W x 31¹⁄₁₆ in. D x 33¹¹⁄₁₆ in. H
• 4.0 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-60D-2-HC ADA within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator, 34" working height, 33 - 38°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, (2) drawers each, accommodates (1) 12" x 20" x 6" food pan (NOT included), stainless steel front, top & sides, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-60D-2-HC ADA Specifications
