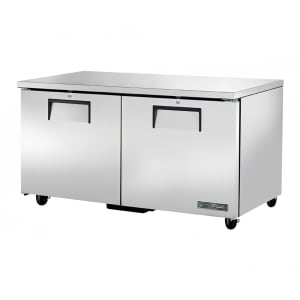

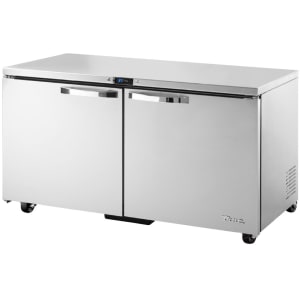

True TUC-60-HC~SPEC3 ADA 60" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

The True TUC-60-HC~SPEC3 undercounter refrigerator has a rear-accessible condensing unit that slides out for maintenance. Its capillary tube system has a self-contained design and uses environmentally friendly R290 hydrocarbon refrigerant. Because they have high peak capacities, the fan motors reduce heat production and energy consumption.

Though it isn’t a substitute for regular preventive maintenance, the fan compressor’s self-cleaning feature helps lower energy consumption and improve operating performance. Each time it cycles on, the compressor’s fan motor reverses for period of 20 seconds, effectively blowing away any dirt or debris that’s settled on the condensing coil.

This True TUC-60-HC~SPEC3 Spec Series® undercounter refrigerator has a countertop front lined with the front of the doors, while the 16-gauge top and the 20-gauge doors are both durable. The unit's front, top, sides, and back are constructed of stainless steel, while high-density, polyurethane insulation reinforces the cabinet structure and solid doors. Stem castors measure 3 inches diameter to create a work surface height of 34 inches to comply with Americans with Disabilities Act requirements. The cabinet interior is lined with stainless steel for rust resistance, and to facilitate cleaning, its floor has rounded corners .

Product Details

• Part of the Spec Series
• Countertop front lines up with door fronts
• Digital display and electronic temperature control
• Sturdy 16-ga. top and 20-ga. doors
• Front, top, sides, and back are stainless steel
• Stem castors with a 3-in. diameter
• High density, polyurethane insulation is used to foam cabinet structure and solid doors in place
• Stainless steel interior and coved floor simplify cleaning
• Standard door locks
• All-metal door handles
• 1-piece door gaskets feature tool-free removal
• Positive-seal, self-closing doors swing within cabinet dimensions
• Doors stay open at 90 degrees for interior cleaning
• Includes 4 chrome-plated shelf clips per shelf
• Shelf supports and cabinet interior are made of the same material
• Shelves are adjustable in ¹⁄₂-in. increments
• 34-in. working height is compliant with ADA requirements

Refrigeration System

• Back of cabinet has slide-out condensing unit access to ease cleaning and maintenance
• Temperature holding range: 33-38 degrees F
• Capillary tube system is self-contained to speed up servicing
• System uses environmentally friendly R290 hydrocarbon refrigerant
• Electronically commutated motors reduce heat production and energy consumption compared to traditional motors
• Compressor fan motor reverses at start of each cycle to blow dirt off condensing coil

• Guided airflow provides uniform product temperatures
• Epoxy evaporator coating lowers the risks of corrosion

Dimensions & Utilities

• Shelves: 27¹⁄₂ in. L x 16 in. D
• Overall: 60³⁄₈ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 4.0 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-60-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (2) heavy-duty stainless steel doors, steel handles, door lock standard, (4) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel sides & back, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
