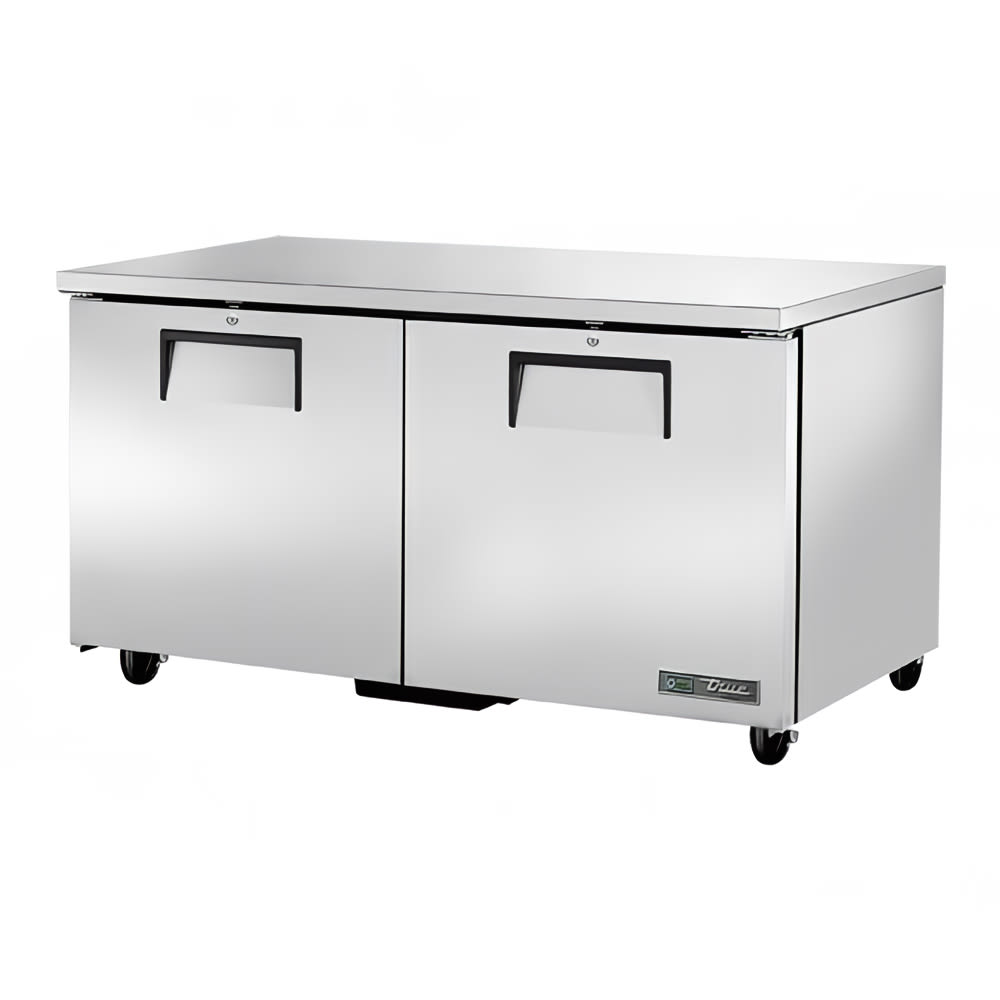

True TUC-60-HC ADA 60" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

The True TUC-60-HC undercounter refrigerator is ADA compliant with a 34-inch-high work surface. It gets structure and cold air retention from its foamed-in-place polyurethane insulation. Strength and corrosion resistance are provided by its stainless and GalFan-coated steel exterior. The two doors have 12-inch recessed handles to make accessing the cabinet interior simple. Products sit on four adjustable shelves, and the interior is easy to clean with its aluminum clear coat and coved corners.

The refrigeration system is accessible from the back for maintenance. Its evaporator is protected by its epoxy coating. A consistent amount of air is moved with the condenser and evaporator fan motors. The True TUC-60-HC undercounter refrigerator uses R290 hydrocarbon refrigerant to keep temperatures between 33 and 38 degrees Fahrenheit. The refrigerant runs through a capillary tube system.

Upon the start of each cycle, the compressor’s fan motor blows in reverse for a 20-second period to remove built-up debris from the condensing coil. Maintaining a clean condensing coil helps improve performance and lengthens the unit’s lifespan. This self-cleaning function works best when combined with regular preventive maintenance.

Product Details

• ADA-compliant, 34-in. work surface height
• Stainless steel top, ends, and front resist scratches and dents
• GalFan-coated steel exterior back withstands heavy use
• Aluminum interior liner resists corrosion
• Interior coved corners simplify cleaning
• Structure and cold air retention are provided by the foamed-in-place polyurethane insulation
• 3-in. castors provide mobility
• 12-in. recessed handles on the 2 doors
• Doors stay open past 90 degrees for loading and unloading product
• Keep cold air from leaking with magnetic door gaskets
• Product sits on 4 PVC-coated shelves
• Compliant to hold open food product
• 4 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
• Top shelves dimensions: 27¹⁄₂ in. W x 16 in. D
• Bottom shelves dimensions: 27¹⁄₂ in. x 13³⁄₄ in. D
• Overall dimensions: 60³⁄₈ in. W x 31¹⁄₈ in. D x 33³⁄₄ in. H

Product Features

Self-contained Refrigeration System

• R290 hydrocarbon refrigerant is used by the capillary tube system
• Temperature range: 33-38 degrees F
• Uniform amount of air is moved by the condenser and evaporator fan motors
• Self-cleaning compressor fan motor improves performance by blowing dust from condensing coil each cycle

• Rear refrigeration system access
• Corrosion-resistant evaporator is coated in epoxy

*Free shipping on True Refrigeration TUC-60-HC ADA within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator, 34" working height, 33 - 38°F, (2) stainless steel doors, (4) PVC coated adjustable wire shelves, stainless steel top & sides, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-60-HC ADA Specifications

Documents

Spec Sheet

Warranty
