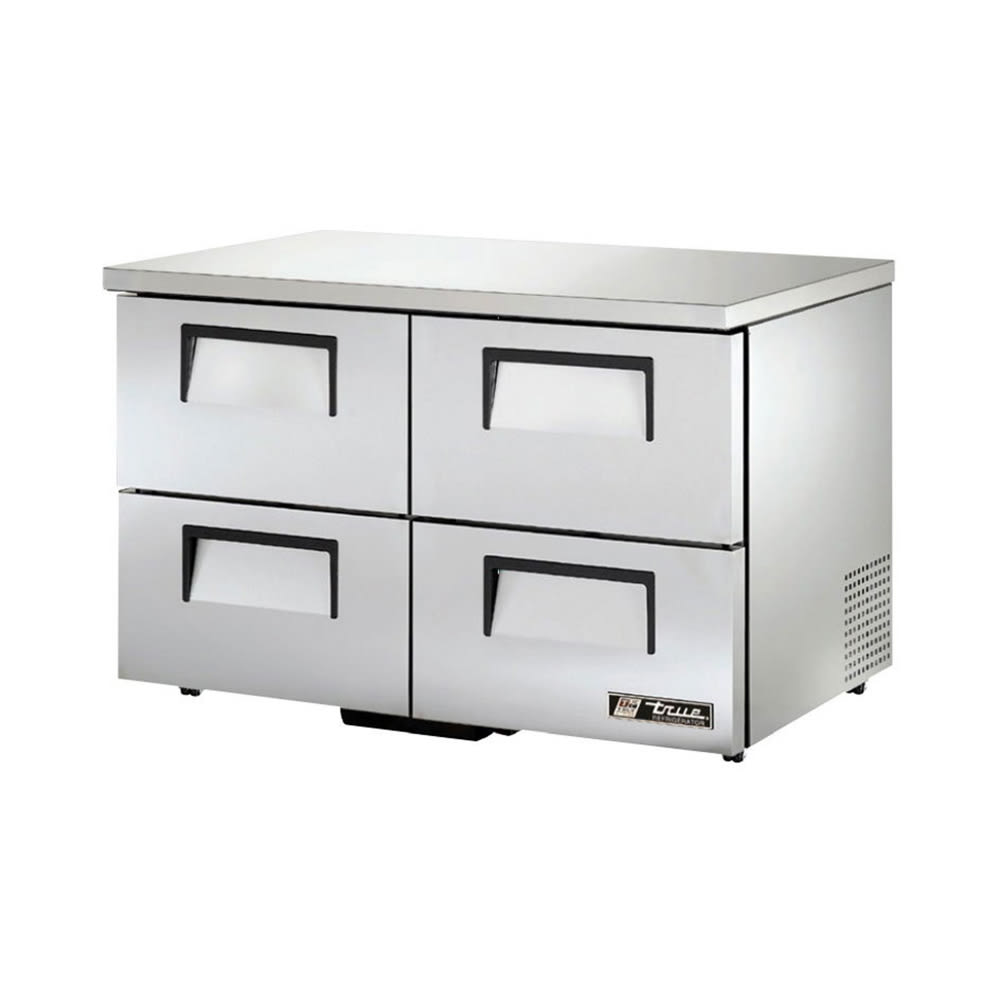

True TUC-48D-4-HC-LP 48" W Undercounter Refrigerator w/ (2) Sections & (4) Drawers, 115v

For corrosion resistance and a simplified cleaning process, the True TUC-48D-4-HC-LP undercounter refrigerator has a stainless steel floor with coved corners and a clear-coated aluminum interior. A GalFan coating on the steel exterior back also offers corrosion resistance, while the stainless steel front, top, and ends increase strength and facilitate cleanup. There are four drawers in this unit, and each one can hold one full-size storage box, which is sold separately. Equipped with 1¹⁄₂-inch-diameter dual swivel castors, this unit has a low-profile work surface height of 31⁷⁄₈ inches.

High-density polyurethane insulation foams the cabinet structure and drawer facings of the True TUC-48D-4-HC-LP undercounter refrigerator, keeping cold air around the stored items. Operators can set and adjust the temperature between 33 and 38 degrees Fahrenheit, while the refrigeration system uses a guided airflow system to evenly move cold air throughout the cabinet, ensuring all products are uniformly cooled. For efficient operation, the fan motors in the unit are electronically commutated, and they run consistently without generating a lot of heat.

When the compressor cycles on, the fan motor reverses for 20 seconds to blow away debris, buildup, and settled dust from the condensing coil. Maintaining a clean condensing coil helps the unit performs more efficiently; this self-cleaning function can also lengthen its overall lifespan. However, users should still carry out preventive maintenance on a routine basis.

Product Details

• Low-profile design with a 31⁷⁄₈-in. work surface height
• 1¹⁄₂-in.-diameter dual swivel castors
• 4 drawers each hold 1 full-size, 12-in. L x 18-in. W x 6-in. D food storage box or 1 half-size and 1 third-size pan (sold separately)
• Aluminum interior liner has a clear coating to simplify cleaning
• Stainless steel floor has coved corners to eliminate hard-to-clean cracks and crevices
• Corrosion-resistant GalFan coats the steel exterior back
• Heavy-duty stainless steel for the front, top, and ends
• Foamed-in-place, high-density polyurethane insulation holds cold air inside the drawers
• Drawer frames, facings, and liners are constructed of stainless steel
• 1-piece, magnetic drawer gaskets are detachable to simplify cleaning
• Drawer slides and rollers are constructed of heavy-duty stainless steel and removable without tools

Refrigeration System

• Access to slide-out condensing unit is located in back of cabinet
• Airflow is guided by oversized, factory-balanced system to provide uniform product temperatures
• Fan motors are electronically commutated, efficiently moving cold air without increasing heat production or energy use
• Compressor fan motor reverses for 20 seconds when it starts up, regularly blowing dust and debris off condenser coil
• Epoxy coating on evaporator provides corrosion resistance
• Temperature holding range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant

Dimensions & Utilities

• 48⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 31⁷⁄₈ in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-48D-4-HC-LP within the 48 contiguous states.

From The Manufacturer

Low Profile Undercounter Refrigerator, 31-7/8" counter height, 33 - 38°F, (4) drawers each, accommodates (1) 12" x 18" x 6" food pan (NOT included), stainless steel top & sides, clear coated aluminum interior with stainless steel floor, 1-1/2" dual swivel castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-48D-4-HC-LP Specifications

Documents

Spec Sheet

Warranty

Product Info
