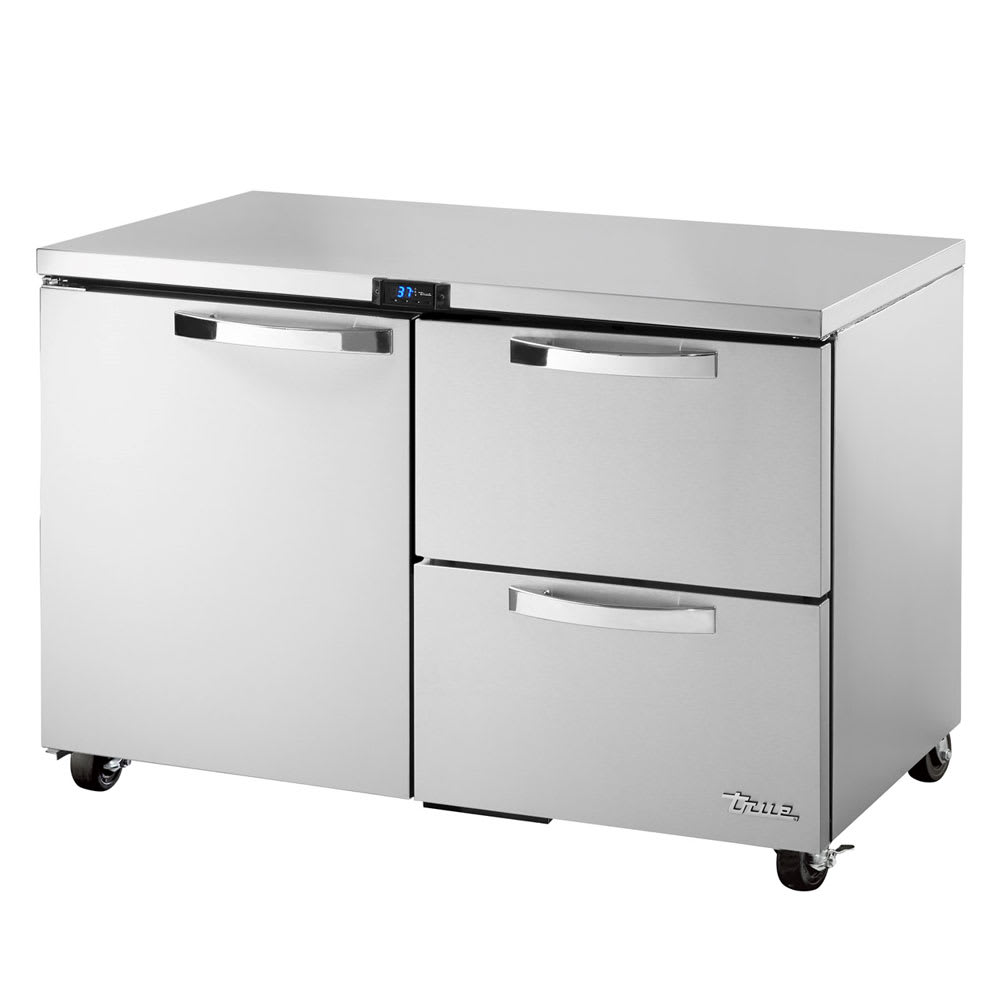

True TUC-48D-2-HC~SPEC3 ADA 48" W Undercounter Refrigerator w/ (2) Sections, (2) Drawers & (1) Door, 115v

The True TUC-48D-2-HC~SPEC3 undercounter refrigerator provides cold storage in a door section and two drawers. The unit has a positive-seal, self-closing door with a 90-degree stay-open feature that enables users to conveniently stock and clean the interior. Each door and drawer is fitted with a heavy-duty, all-metal handle. Locks are unavailable for the drawers but there is a provided lock for the door section. No tools are needed to remove the one-piece, magnetic drawer and door gaskets.

Each drawer can hold a 12-inch by 18-inch by 6-inch pan. Divider bars are available for the True TUC-48D-2-HC~SPEC3 undercounter refrigerator if operators want to hold different pan sizes. The heavy-duty drawer rollers and slides are constructed of stainless steel and are removable without tools. It has stainless steel exterior facings and liners with stainless steel frames on each drawer. The door is made of a stainless steel exterior with a clear-coated aluminum liner, matching the cabinet interior.

The unit's compressor fan motor utilizes a self-cleaning mechanism that removes settled dirt and debris from the condensing coil. Each time the compressor starts up the fan directs air in reverse for 20 seconds to blow buildup off the coil. Designed to be paired with routine preventative maintenance, this feature lengthens the unit’s lifespan and optimizes performance.

Product Details

• Part of the Spec Series
• ADA-compliant, 34-in. work surface height
• 2 drawers and a door section
• Each drawer can accommodate (1) 12-inch by 18-inch by 6-inch pan box or 1 third-size and 1 half-size pan (items not included)
• Door section houses 2 adjustable, PVC-coated shelves
• 20-ga. door self-closes to retain cold air
• Door has a 90-degree stay-open feature for cabinet loading and cleaning
• Each door and drawer is fitted with an all-metal handle
• Door lock secures product in the cabinet
• Divider bars available
• Drawers support various incremental pan size configurations
• Heavy-duty, stainless steel drawer slides and rollers are removable without tools
• Stainless steel exterior facings and liners with stainless steel frames on each drawer
• Door has a stainless steel exterior and a clear coated aluminum liner to match the cabinet interior
• 1-piece, magnetic gaskets in the door and drawers require no tools to be removed
• Cabinet, solid door, and drawer facings are foamed in place using high-density polyurethane insulation
• 3-in.-diameter stem castors
• Stainless steel front, top, sides, and back exterior
• Stainless steel liner and floor with coved corners in the interior
• Front of the door and drawers flush with the countertop front

Refrigeration System

• Condensing unit is accessed behind the cabinet and slides out for maintenance
• Temperature holding range: 33-38 degrees F
• Electronic temperature control with a digital display
• Evaporator and condenser fan motors reduce energy consumption by moving consistent air volumes
• Fan motor reverses for 20 seconds at start up to blow dust off condenser coil
• R290 hydrocarbon refrigerant
• Corrosion-resistant coating on the evaporator

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48³⁄₈ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-48D-2-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (1) heavy-duty stainless steel door, (2) PVC coated adjustable wire shelves, (2) drawers each, accommodates (1) 12" x 18" x 6" food pan (NOT included), steel handles, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, 3" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, CE, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-48D-2-HC~SPEC3 ADA Specifications
