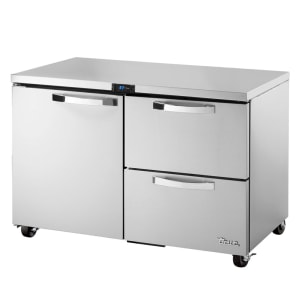

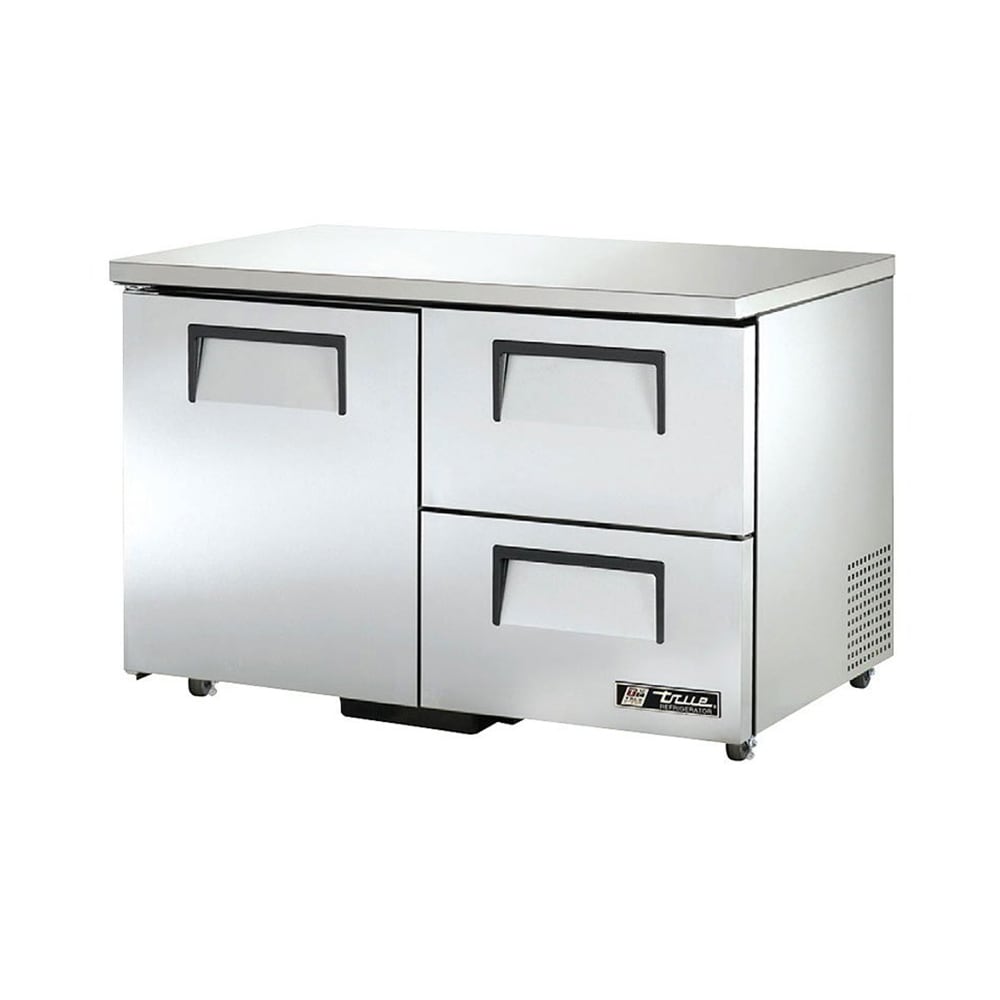

True TUC-48D-2-HC ADA 48" W Undercounter Refrigerator w/ (2) Sections, (2) Drawers & (1) Door, 115v

The refrigeration system in the True TUC-48D-2-HC undercounter refrigerator has electronically commutated evaporator and condenser fan motors that move consistent volumes of air. The factory-balanced refrigeration system maintains cabinet temperatures of 33 to 38 degrees Fahrenheit. Operators can set the temperature level to suit their application.

The cabinet rear slides out for simple maintenance of the condensing unit. Shelves in the cabinet measure 21⁹⁄₁₆ inches in length by 16 inches in depth and are constructed of heavy duty, PVC-coated wire. These shelves are adjustable in ¹⁄₂-inch increments.

The self-contained capillary tube system of this True TUC-48D-2-HC undercounter refrigerator uses environmentally friendly R290 hydrocarbon refrigerant. The guided airflow from this factory-balanced, oversized refrigeration system provides uniform temperatures to the product. To maintain a clean, optimally performing condensing coil over time, the compressor’s fan motor utilizes a self-cleaning function. Each time it starts up, it runs in reverse to blow away settled dirt and debris from the coil. This feature, when combined with regular preventive maintenance, can lower energy consumption and lengthen the unit’s lifespan.

Product Details

• ADA-compliant, 34-in. work surface height
• 3-in. stem castors
• Each drawer holds (1) 12-in.-long by 18-in.-wide by 6-in.-deep box, or 1 third-size and 1 half-size pan (items sold separately)
• 2 adjustable shelves in the cabinet section
• Interior has a stainless steel floor with coved corners and a clear-coated aluminum liner
• Stainless steel exterior front, top, and ends
• GalFan-coated steel back resists corrosion
• 1-piece, formed top and backsplash
• Bacteria and food particles are not trapped underneath as with other 2-piece worktop units
• Ecomate foams in place the entire cabinet structure, solid door, and drawer facings
• High-density polyurethane insulation retains cold air and enhances structural strength
• Magnetic drawer and door gaskets can be removed without tools
• Clear aluminum door liner matches the cabinet interior
• Stainless steel exterior facings and liners with stainless steel frames on the drawers
• Positive-seal, self-closing door stays open at 90 degrees
• 12-in. recessed handles in the door and drawer
• Heavy-duty, stainless steel drawer slides and rollers can be removed without tools

Refrigeration System

• Evaporator and condenser fan motors move air consistently and reduce energy consumption
• Self-cleaning compressor fan motor blows dust off condensing coil to improve performance

• Slide-out condenser is accessible at the back of the cabinet
• Temperature holding range: 33-38 degrees F
• Environmentally friendly R290 hydrocarbon refrigerant
• Guided airflow circulates cold air to provide uniform temperatures to product
• Evaporator is coated with corrosion-resistant epoxy

Dimensions & Utilities

• Shelves: 21⁹⁄₁₆ in. W x 16 in. D
• Overall: 48⁵⁄₁₆ in. W x 31¹⁄₁₆ in. D x 33¹¹⁄₁₆ in. H
• 3 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-48D-2-HC ADA within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator, 34" working height, 33 - 38°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, (2) drawers each, accommodates (1) 12" x 18" x 6" food pan (NOT included), stainless steel top & sides, clear coated aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
