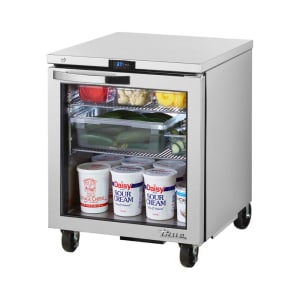

True TUC-27G-HC~SPEC3 ADA 27" W Undercounter Refrigerator w/ (1) Section & (1) Door, 115v

The True TUC-27G-HC~SPEC3 Spec Series® undercounter refrigerator measures 33³⁄₄ inches in height to comply with ADA guidelines, and its front, top, sides, and back are constructed of stainless steel. Two wire shelves are heavy duty and PVC coated, while this glass door unit comes with chrome-plated shelf clips for adjusting the shelves in ¹⁄₂-inch increments. Shelf support pilasters are made of the same material as the cabinet interior, and this refrigerator has a heavy-duty all-metal door handle. Self-closing, the glass door has a positive seal.

The True TUC-27G-HC~SPEC3 undercounter refrigerator has a slide-out condensing unit that is accessible from the back. Because the refrigeration system is self-contained, the evaporator and condenser are together, which helps speed up servicing. For lasting use, the evaporator is coated in corrosion-resistant epoxy, and the fan motors are reliable and electronically commutated. Staff members can adjust the temperature from 33 to 38 degrees Fahrenheit.

The compressor’s fan motor uses a self-cleaning function to keep the condensing oil free of buildup and debris. Each time the compressor cycles on, the fan blows dust and dirt off the condensing coil by running in reverse for 20 seconds. Intended to work in tandem with routine preventative maintenance, this feature lengthens the unit’s lifespan and improves overall performance.

Product Details

• Part of the Spec Series
• Heavy-duty door handle
• Self-closing door with a positive seal
• Door locks for security
• Magnetic door gasket is removable without tools
• Front, top, sides, and back are constructed of stainless steel
• Aluminum door frame with double-pane, thermal glass window
• Digital display has electronic temperature control
• High-density polyurethane insulation foams entire cabinet structure in place
• Heavy-duty 16-ga. top
• Countertop edge is flush with door front
• LED interior lighting is safety shielded
• Interior has stainless steel liner and floor with coved corners
• 2 PVC-coated wire shelves are heavy duty
• 4 shelf clips per shelf
• Shelves are adjustable in increments of ¹⁄₂ in.
• 3-in.-diameter stem castors
• 34-in. work surface height is compliant with ADA requirements

Refrigeration System

• Capillary tube system uses eco-friendly R290 hydrocarbon refrigerant
• Epoxy evaporator coating resists corrosion
• Back of the cabinet slides out for condensing unit maintenance
• Temperature holding range: 33-38 degrees F
• Guided airflow enables uniform product temperatures
• Electronically commutated fan motors produce less heat and use less energy than traditional motors
• Fan motor runs in reverse for 20 seconds each cycle to blow dirt off condensing coil

Dimensions & Utilities

• Shelves: 23¹⁄₄ in. L x 16 in. D
• Overall: 27⁵⁄₈ in. W x 32¹⁵⁄₁₆ in. D x 33³⁄₄ in. H
• 2.0 A, ¹⁄₆ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-27G-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Undercounter Refrigerator, 34" working height, 33 - 38°F, SPEC Package 3 includes: 16-ga. stainless steel top, (1) Low-E glass door, steel handle, door lock standard, (2) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, 3" castors, R290 Hydrocarbon refrigerant, 1/6 HP, 115v/60/1-ph, 2.0 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
