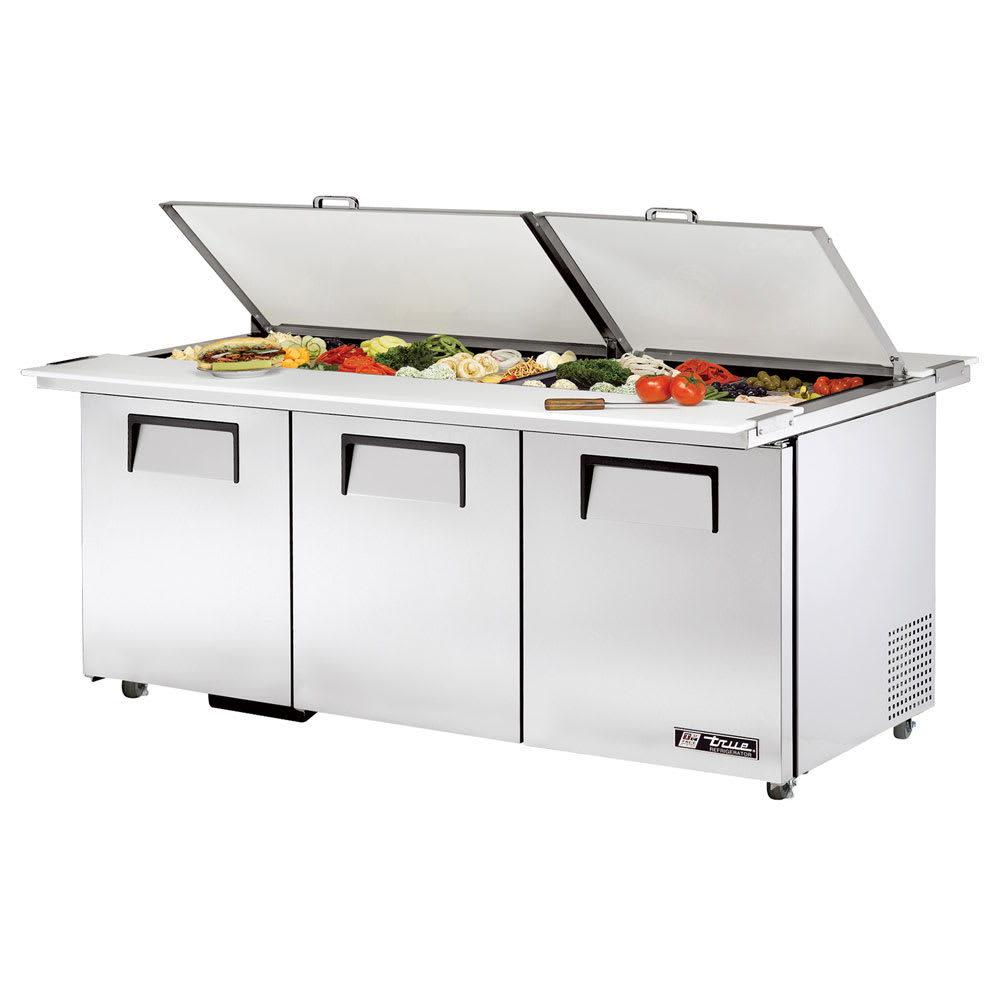

True TSSU-72-30M-B-DS-ST-HC 72" TSSU Series Mega Top Dual Sided Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

Using eco-friendly R290 hydrocarbon refrigerant, the True TSSU-72-30M-B-DS-ST-HC food prep table operates between 33 and 41 degrees Fahrenheit, and users can set the temperature to suit their application. If there is an issue in the refrigeration system, the condenser is accessible from the rear for servicing. Airflow in the unit is guided to maintain consistent temperatures in the pan area and refrigerated cabinet base.

The table's doors swing within the cabinet's dimensions, and when they close, the doors have a positive seal that prevents cold air from leaking out. Because these doors are self-closing, they retain cold air, and past 90 degrees, the doors stay open so users can stock product and clean the interior. This unit is mobile on 5-inch-diameter castors, and locks are provided on the front set for safety.

For durability and corrosion resistance, this True TSSU-72-30M-B-DS-ST-HC prep table has a stainless steel exterior on the front, top, and ends with a GalFan-coated steel back. Its one-piece door gaskets are magnetic and streamline cleaning with tool-free removal. In the top rail area, this dual-sided unit comes with 30 sixth-size, 4-inch-deep clear polycarbonate pans, which are covered by an insulated hood and lid assembly that retains cold air and preserves freshness. This unit has a reversing fan motor that activates for 20 seconds upon compressor start up; this removes dust and debris from the condenser coil to promote efficiency and reduce energy use. Despite this features cleaning efficiency, it doesn't eliminate recommendations for routine preventative maintenance.

Product Details

• Equipped with 30 sixth-size, 4-in.-deep clear polycarbonate pans
• Countertop prep area can accommodate 6-in.-deep food pans (sold separately)
• Varying size pan configurations fit in countertop pan opening with available pan divider bars (pans sold separately)
• Self-closing doors swing within cabinet dimensions
• Doors stay open past 90 degrees for convenient loading and unloading
• Single-piece, magnetic door gaskets for tool-free removal
• Stainless steel exterior on front, top, and ends with GalFan-coated, corrosion-resistant steel back
• Insulated with foamed-in-place, high-density polyurethane for cold-air retention
• Full-length, removable cutting boards measure 11³⁄₄ in. deep
• Cabinet's interior has a clear aluminum liner that resists corrosion
• Corners are coved in the stainless steel floor, eliminating crevices to ease cleaning
• 12-in.-long door handles are recessed to save aisle space
• 6 adjustable shelves are made of heavy-duty, PVC-coated wire
• Stainless steel pan compartment lids are insulated with foam to keep pan temperatures cold, lock in freshness, and minimize condensation
• Locks provided on front set of 5-in.-diameter stem castors

Factory-balanced Refrigeration System

• Slide-out condensing unit access available in back of cabinet
• Large fan blades and self-lubricating, sealed evaporator fan motor provide low-velocity, high-volume airflow
• Compressor fan motor reverses automatically for 20 seconds to knock dust off condenser coils
• Guided airflow provides uniform food pan and cabinet interior temperature
• Uses R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Evaporator is coated in epoxy to eliminate corrosion potential

Dimensions & Utilities

• Pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 2 right and 2 left shelves: 21⁹⁄₁₆ in. W x 16 in. D
• 2 center shelves: 23¹⁄₂ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 46¹⁄₂ in. D x 37¹⁄₂ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-30M-B-DS-ST-HC within the 48 contiguous states.

From The Manufacturer

Dual Side Mega Top Sandwich/Salad Unit, (30) 1/6 size (4"D) poly pans, (2) stainless steel insulated covers, 11-3/4"D cutting boards, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
