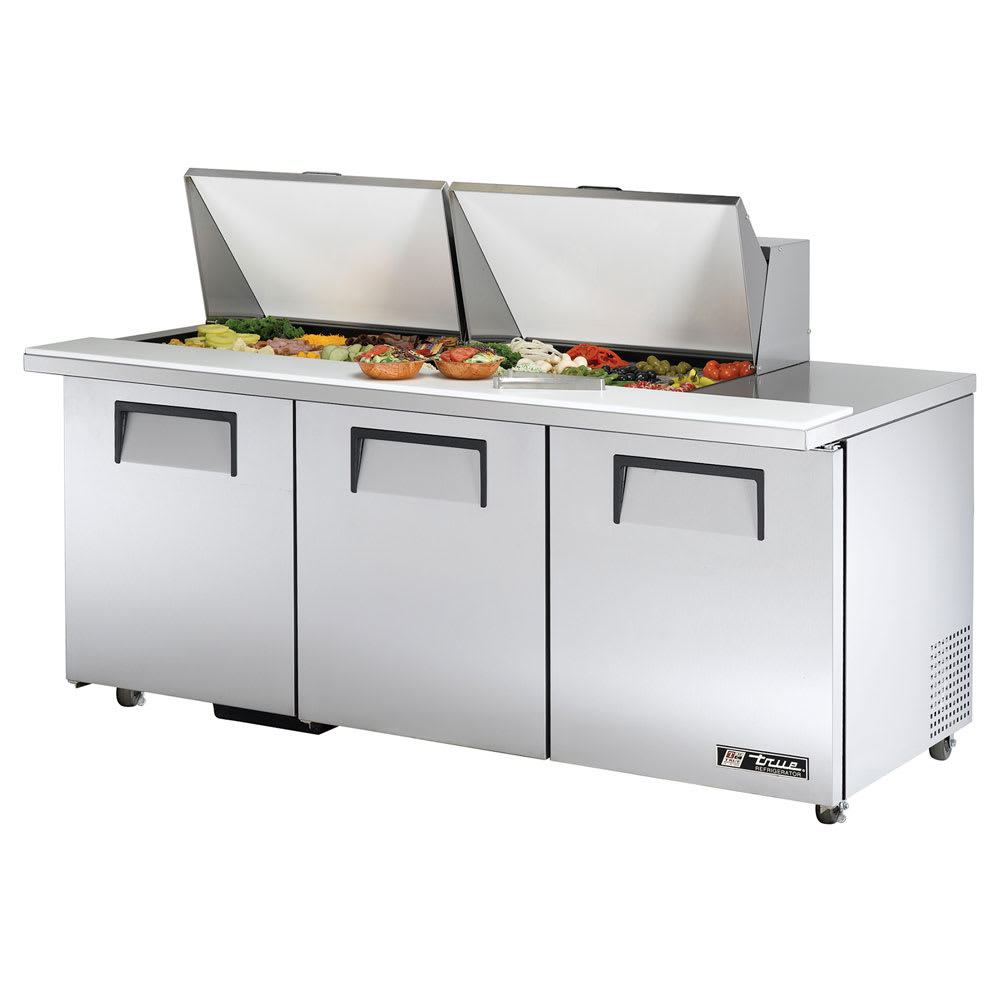

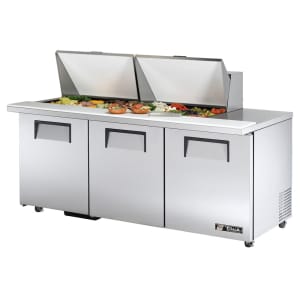

True TSSU-72-24M-B-ST-HC ADA 72" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

To maintain a set temperature between 33 and 41 degrees Fahrenheit, the factory-engineered refrigeration system in the True TSSU-72-24M-B-ST-HC food prep table has a capillary tube system that is self-contained and uses environmentally friendly R290 hydrocarbon refrigerant. Accessible from the back, its condenser slides out for maintenance, while guided airflow evenly moves cold air throughout the cabinet base and pan rail compartment.

Because this True TSSU-72-24M-B-ST-HC prep table has a 34-inch work surface height, it is compliant with ADA regulations. Users can prepare salads and sandwiches on the polyethylene cutting board, while ingredients are held in the pan compartment and additional food is stored in the base. The pan area comes with 24 sixth-size, 4-inch-deep pans, but 6-inch-deep pans are also compatible with the unit. In the base, six shelves support stored items and can be adjusted to accommodate different items.

The compressor's fan motor reverses for 20 seconds upon start up to blow debris and dust off the condensing coil. With this routine, automatic condenser cleaning, the unit runs efficiently and reduces energy consumption. Even though the cleaning feature improves standard compressor run times and prolongs the lifespan of the unit, it doesn't eliminate maintenance recommendations.

Product Details

• ADA-compliant, 34-in. work surface height
• Includes 24 sixth-size, 4-in.-deep food pans
• 6-in.-deep food pans also fit in countertop prep area (sold separately)
• Countertop pan opening can accommodate various size pan configurations and available pan divider bars (sold separately)
• Foam-insulated stainless steel lids and hoods ensure cold temperatures, minimize condensation, and lock in freshness
• Cabinet interior is lined with corrosion-resistant, clear-coated aluminum
• Stainless steel interior floor does not have hard-to-clean crevices
• Includes full-length, removable cutting board for prepping ingredients and building sandwiches
• Self-closing, positive-seal doors have a stay-open feature at 90 degrees so users can load the cabinet
• 12-in.-long, recessed handles on the doors
• Stainless steel exterior with corrosion-resistant, GalFan-coated steel back
• Foamed-in-place, high-density polyurethane insulation retains cold air
• 6 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments to increase storage flexibility
• Support pilasters and cabinet interior are constructed of same material
• Magnetic, seamless door gaskets are removable without tools to simplify cleaning
• Potential for corrosion is eliminated with epoxy coating on evaporator
• Exterior is constructed of stainless steel with clear aluminum liner to match with cabinet interior
• 3-in.-diameter stem castors

Factory-engineered Refrigeration System

• Eco-friendly R290 hydrocarbon refrigerant
• Condensing unit slides out from the back for component access
• Guided airflow ensures uniform temperatures in food pans and cabinet interior
• Temperature holding range: 33-41 degrees F
• Low-velocity, high-volume airflow is provided by sealed, self-lubricating evaporator fan motor and large fan blades
• Compressor fan motor has a reversing design that eliminates dust buildup on condensing coil

Dimensions & Utilities

• Pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• 2 right and 2 left shelves: 21⁹⁄₁₆ in. W x 16 in. D
• 2 center shelves: 23¹⁄₂ in. W x 16 in. D
• Overall: 72⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 44⁷⁄₃₂ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-24M-B-ST-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (24) 1/6 (4"D) poly pans, (2) stainless steel covers, 8-7/8"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top, front & sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-24M-B-ST-HC ADA Specifications
