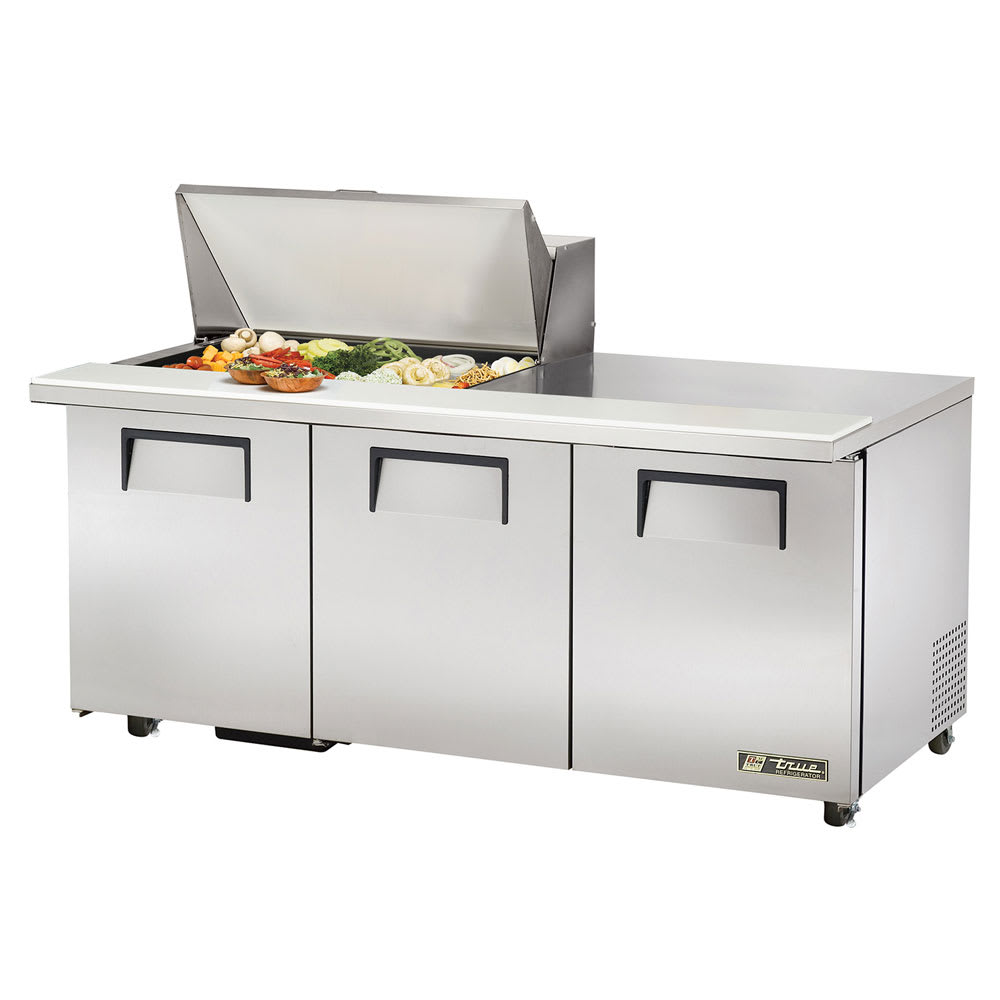

True TSSU-72-15M-B-HC 72" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-15M-B-HC mega-top food prep table has a patented refrigeration system. Its 33 to 41 degrees Fahrenheit product temperature is maintained by the forced-air design, which complies with and is listed under ANSI/NSF-7 standards. Condensing unit access is located in the back of the cabinet, where it slides out for maintenance. This unit has an effective airflow design due to its sealed, self-lubricating evaporator fan motor and large fan blades. Upon fan motor start up, it reverses for 20 seconds to blow debris, dirt, and dust off the condenser coil. Because the coil has an automatic cleaning feature, the unit runs more efficiently and reduces energy consumption compared to systems with grimy parts. Although this reversing prolongs the unit's lifespan, routine preventative maintenance is still recommended.

It has a factory-balanced refrigeration system designed with guided airflow to provide food pans and the cabinet interior with uniform temperatures. Environmentally friendly R290 hydrocarbon refrigerant runs through the factory-engineered, self-contained capillary tube system. This unit is constructed of stainless steel with a GalFan-coated steel back.

Product Details

• GalFan-coated steel back to resist corrosion and stainless steel front, top, and sides for durability
• Interior composed of a clear-coated aluminum liner with a stainless steel floor
• Coved corners on the floor help with cleaning since they do not gather debris
• Polyurethane insulation foamed-in-place for cold-air retention
• Positive-seal, self-closing doors feature 90-degree, stay-open feature for product loading
• 12-in.-long recessed handle foamed-in-place on each door with sheet metal interlock to ensure permanence
• Tools not necessary to remove magnetic door gaskets from 1-piece construction
• 6 PVC-coated shelves adjustable in increments of ¹⁄₂ in., shelf support pilasters and cabinet interior constructed of same material
• Equipped with 15 sixth-size food pans made of durable polycarbonate
• Stainless steel, foam-insulated lid and hood removable for cleaning and keeping pans at appropriate temperatures
• Alternate pan configurations with pan divider bars fit countertop pan opening (pans sold separately)
• Comes with full-length, removable cutting board that measures 8⁷⁄₈ in. deep and ¹⁄₂ in. thick
• 5-in.-diameter stem castors
• 36-in. work surface height

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Slide-out condensing unit access in back of cabinet
• Low-velocity, high-volume airflow design with a sealed, self-lubricating evaporator fan motor and larger fan blades
• Compressor fan motor automatically reverses for 20 seconds upon start up to clean condenser coil
• Factory-balanced refrigeration system designed with energy efficiency and guided airflow to provide food pans and cabinet interior with uniform temperature
• Environmentally friendly R290 hydrocarbon refrigerant in factory engineered, self-contained capillary tube system
• Epoxy coats evaporator to eliminate possible corrosion

Dimensions & Utilities

• Right and left shelves: 21⁹⁄₁₆ in. L x 16 in. D
• Center shelves: 23¹⁄₂ in. L x 16 in. D
• Overall: 72³⁄₈ in. W x 35¹⁄₈ in. D x 46⁵⁄₈ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-15M-B-HC within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, (15) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, GalFan coated steel back, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
