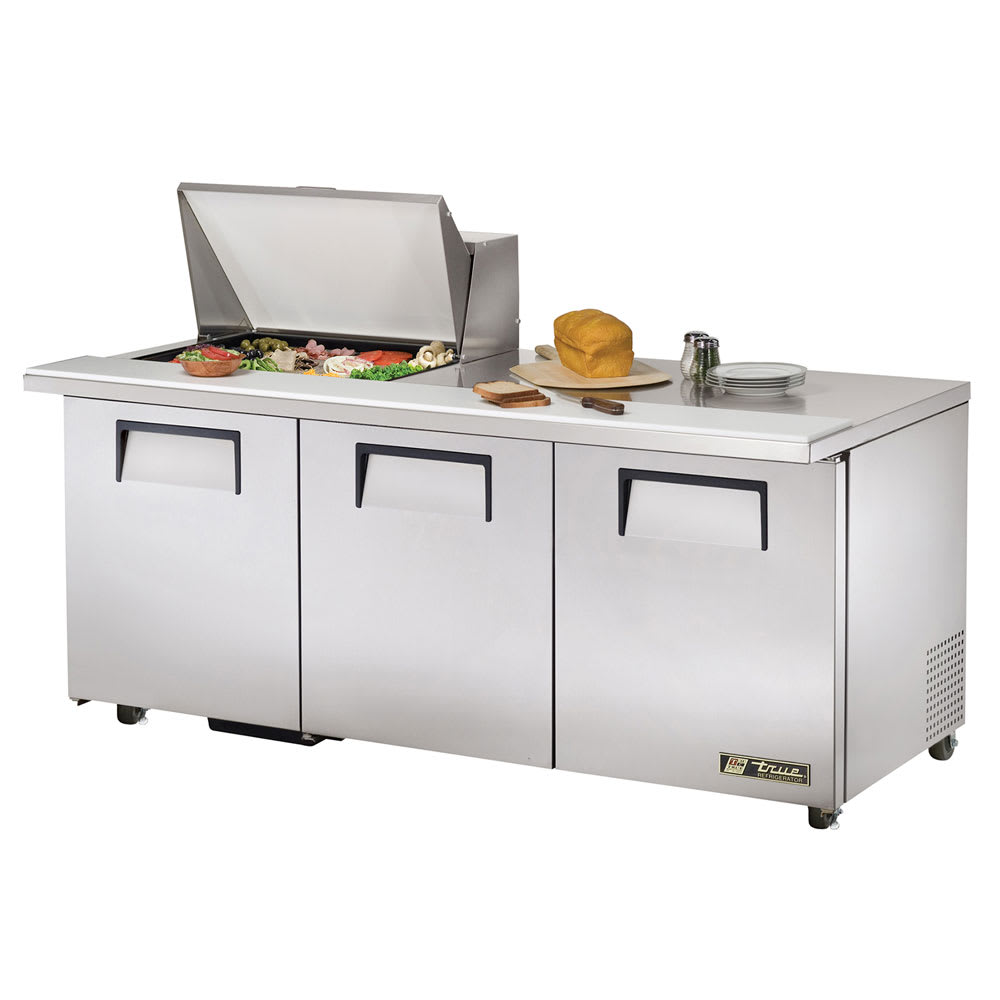

True TSSU-72-12M-B-HC ADA 72" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-12M-B-HC ADA-compliant food prep table's work surface height is 34 inches. The interior is insulated with foamed polyurethane and lined with a clear-coated aluminum liner, and for quick cleanup, the stainless steel floors have coved corners. All six shelves are adjustable in ¹⁄₂-inch increments to accommodate products of varying sizes. The exterior has a corrosion-resistant, GalFan-coated steel back and a stainless steel construction on the front, top, and ends. To supply mobility, this unit has 3-inch castors.

The True TSSU-72-12M-B-HC mega-top prep table is removable for cleaning and designed with a full-length, 8⁷⁄₈-inch-deep cutting board made from durable white polyethylene. As a mega-top unit, it is designed with an additional row of food pans in the countertop storage area, providing room for a total of 12 sixth-size food pans configured in three rows with four pans each. A self-contained capillary tube system meters R290 hydrocarbon refrigerant to help the unit hold steady temperatures between 33 and 41 degrees Fahrenheit. Upon start up, the compressor fan's motor reverses for 20 seconds to remove debris from the condensing coil. Because the coil is cleaned automatically, the unit runs efficiently and reduces energy use. Designed to prolong the system's lifespan, this cleaning feature doesn't replace the need for routine preventative maintenance.

Product Details

• 34-in. ADA-compliant work surface height
• Corrosion-resistant, GalFan-coated steel back with stainless steel front, top, and ends
• Clear-coated aluminum liner on the interior with a stainless steel floor
• Floor has coved corners that will not gather debris
• Stainless steel doors with a clear aluminum liner
• Insulated with foamed polyurethane for temperature retention
• Recessed handles on doors are 12 in. long and foamed-in-place with a sheet metal interlock
• 1-piece constructed magnetic door gaskets removable without tools
• 6 heavy-duty, PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• Pan configurations of varying sizes with available pan divider bars fit countertop pan opening design (pans sold separately)
• 3-in.-diameter steam castors

Energy-efficient Refrigeration System

• Factory-balanced design guides airflow to provide even temperatures in food pans and cabinet interior
• Condensing unit slides out from the back of the cabinet to facilitate maintenance
• Uses R290 hydrocarbon refrigeration
• Capillary tube system is self-contained
• Potential for corrosion diminished with evaporator coated in epoxy
• Temperature holding range: 33-41 degrees F
• Low-velocity, high-volume airflow provided by sealed, self-lubricating evaporator fan motor and larger fan blades

Dimensions & Utilities

• Right and left shelves: 21⁹⁄₁₆ in. L x 16 in. D
• Center shelves: 23¹⁄₂ in. L x 16 in. D
• Overall: 72³⁄₈ in. W x 35¹⁄₈ in. D x 44³⁄₈ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-12M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (12) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
