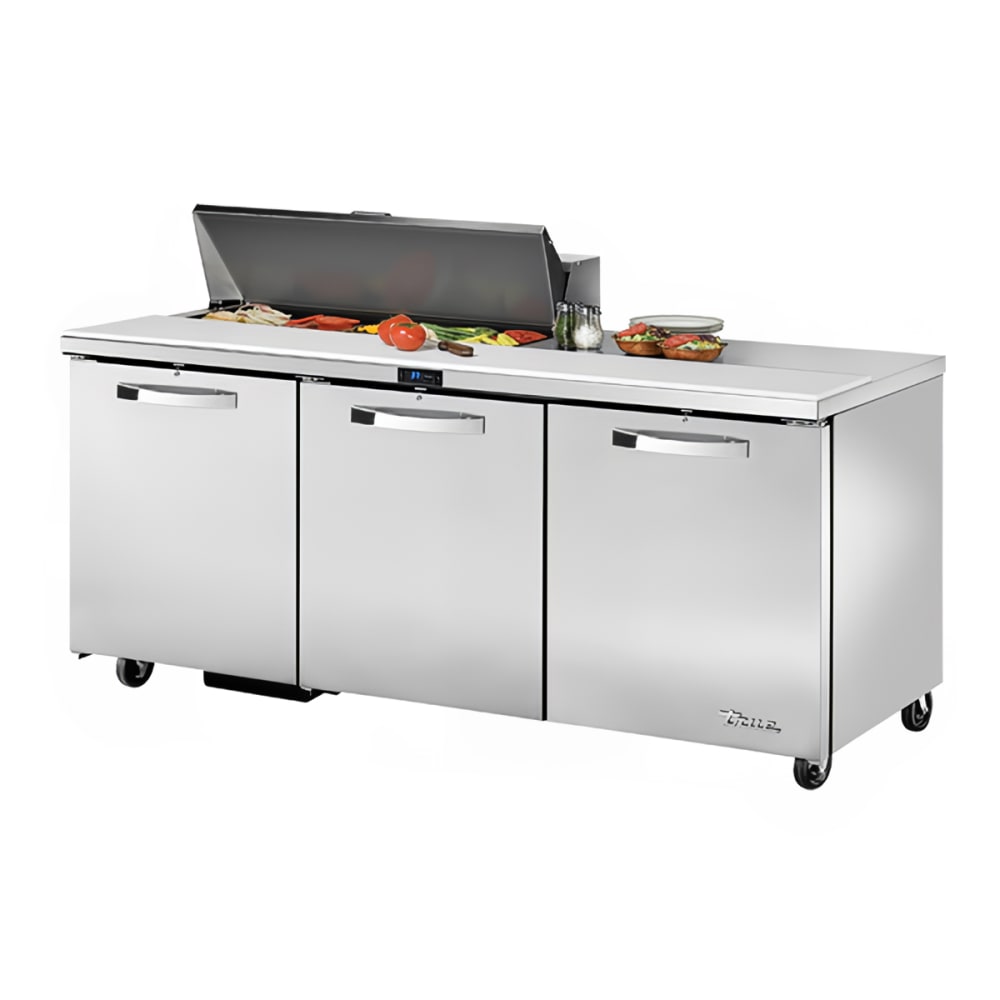

True TSSU-72-10-HC~SPEC3 ADA 72" Spec Series® Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

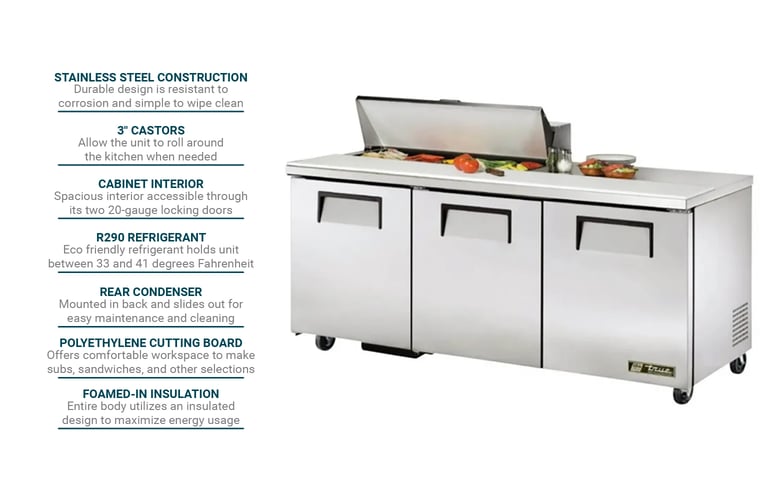

Meant for keeping deli meats, cheeses, and produce at an ideal temperature for maximum freshness, the True TSSU-72-10-HC~SPEC3 ADA prep station pulls heat out of the unit using R290 refrigerant. This refrigeration system keeps the unit at a set temperature between 33 and 41 degrees Fahrenheit. Users can monitor and adjust this temperature quickly through its front-facing digital control panel. Its evaporator is built with large fan motors designed for efficiency and features a sealed, lubricated chamber with an epoxy coating to reduce the chances of mechanical failure. Its guided airflow system evenly distributes cold air throughout the unit, while its isolated capillary tubing assists in that process. For further energy efficiency, it's insulated with a layer of polyurethane, and for quick and simple maintenance, its accessible condenser is rear mounted.

The top of the TSSU-72-10-HC~SPEC3 ADA prep area features cutouts to store 10 sixth-sized pans as well as an 11³/₄-inch-deep cutting board that can be removed as needed. Its entire body measures 72³/₈ inches wide by 30¹/₈ inches deep by 34 inches tall when measured to the top of the workstation; this enables ADA compliance. If users wish to move the unit around the kitchen, it is simple to do using 3-inch castors. The front, sides, and back of the unit feature a stainless steel construction that extends to its interior liner and rounded-corner floor. Its interior cabinet can hold up to six gray PVC shelves per section, which can be adjusted in increments of ¹/₂ an inch. This interior rests behind two 20-gauge heavy-duty doors that can be held open using its holding mechanism during stocking and item retrieval. These doors, equipped with fully metal handles, can be locked when not in use to prevent their opening during transport.

Product Details

• Comes with 10 sixth-sized polycarbonate pans
• 6 gray PVC-coated adjustable wire shelves
• Shelves are adjustable in ¹/₂-in. increments
• Front, sides, back, and insulated cover made of stainless steel
• Stainless steel interior liner and floor with coved corners
• Entire cabinet is foamed in with high-density polyurethane
• 11³/₄-in. cutting board is removable
• Cabinet interior accessible through (3) 20-ga. doors
• Feature locking component and automatic holding mechanism on doors
• Fully metal door handles
• Entire structure mounted on 3-in. castors

Refrigeration Details

• R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Digital temperature control and display on front
• Sealed, self-lubricating evaporator fan motor
• Large fan blades
• Rust-resistant, epoxy-coated evaporator
• Removable, rear-mounted condensing unit
• Guided airflow system

Dimensions & Utilities

• 72³/₈ in. W x 30¹/₈ in. D x 34 in. H (H measured to work surface)
• 7.2 A, ¹/₃ HP
• 115 V/50 Hz/1 ph, 7-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration TSSU-72-10-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Sandwich/Salad Unit, 3" castors (34" work surface height), (10) 1/6 size (4"D) poly pans, SPEC Package 3 includes: stainless steel insulated cover, 11-3/4"D cutting board, (3) full doors with locks, (6) gray PVC coated adjustable wire shelves, digital temperature control and display, stainless steel front, sides & back, stainless steel interior liner & stainless steel floor with coved corners, , R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-10-HC~SPEC3 ADA Specifications
