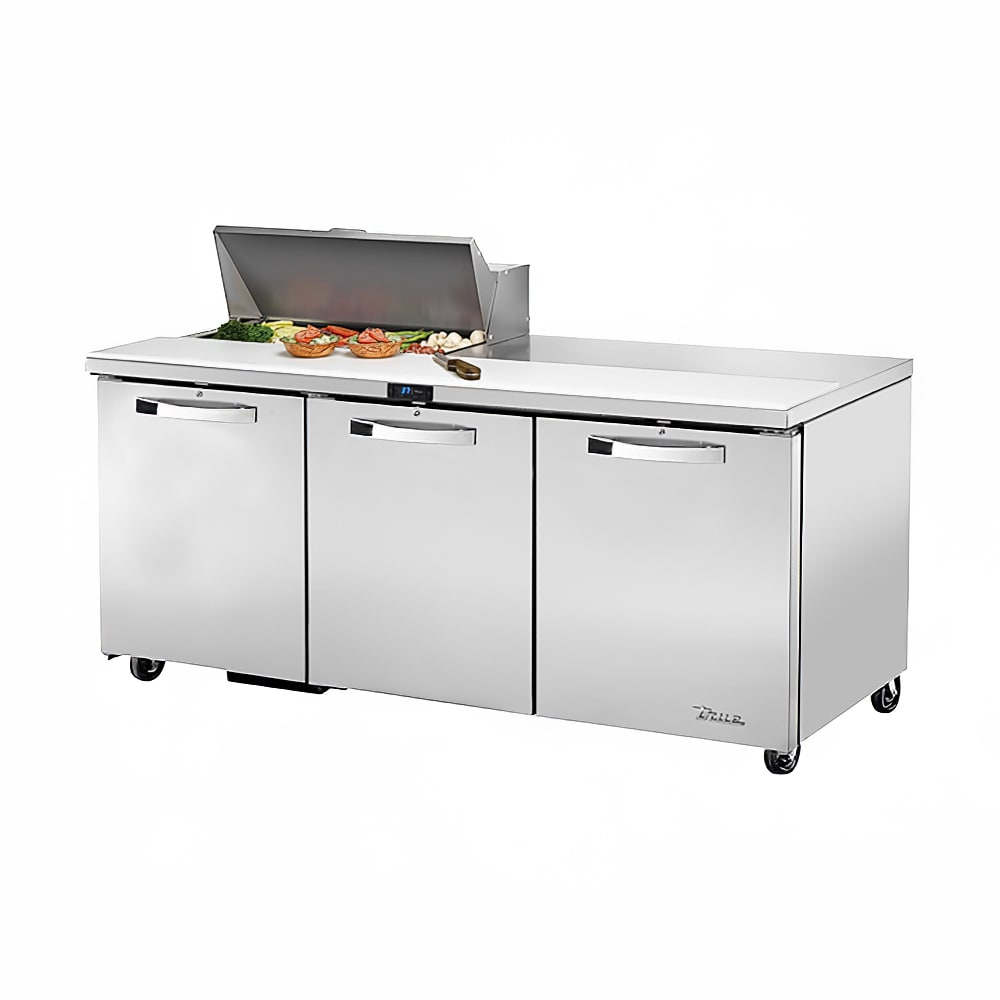

True TSSU-72-08-HC~SPEC3 ADA 72" Spec Series® Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

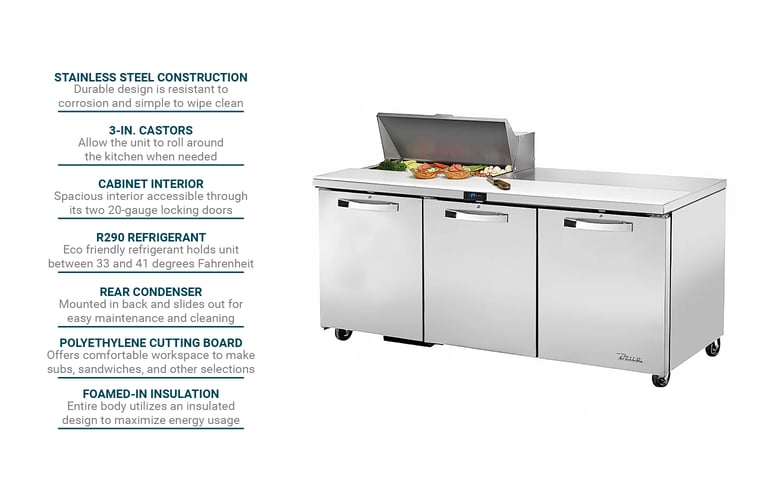

The True TSSU-72-08-HC~SPEC3 ADA prep station features a primarily stainless steel construction, ensuring its body is durable enough to withstand high-volume use in commercial kitchens. This unit measures 72³/₈ inches wide by 30¹/₈ inches deep by 34 inches tall when measured to the countertop. This height ensures the unit is accessible for ADA compliance. Its interior, which is accessible through its three 20-gauge heavy-duty metal doors, follows this trend with both its coved-corner floor and walls being made of stainless steel. The cabinet's interior can comfortably store six PVC-coated wire shelves, each of which can be adjusted in increments of ¹/₂ an inch to fit various configurations. The doors can be opened using its metal handles, and they remain open if needed due to its holding mechanism, After hours, these doors can be locked to prevent tampering. Its top can hold eight sixth-sized poly pans, and to preserve the freshness of stored onions, tomatoes, cheese, and other condiments, operators can lower its stainless steel cover over them. For an elegant workspace that's easy to clean, it features an 11³/₄-inch-deep removable polyethylene cutting board at its front. To make maneuvering simple, it rests on a series of 3-inch castors.

Designed to hold temperatures between 33 and 41 degrees Fahrenheit, the True TSSU-72-08-HC~SPEC3 ADA prep table creates cold air generated by eco-friendly R290 refrigerant and circulated using a sealed capillary tube system. Its evaporator features large fan motors for pushing the air through, while its guided air system ensures even temperature distribution. To further lock in cold air, the entire cabinet is foamed in using a layer of polyurethane insulation. Users can monitor and adjust the temperature through its front-facing control and display panel, and to protect against mechanical failure, the evaporator lubricates itself and is wrapped in epoxy for further protection. Additionally, operators and mechanics can quickly access the condenser to diagnose problems through its rear-located hatch

Product Details

• Includes 8 sixth-sized poly pans
• 6 gray PVC-coated wire shelves
• Adjustable in ¹/₂-in. increments
• Stainless steel front, sides, and back
• Stainless steel cover is insulated
• Stainless steel interior liner and floor with coved corners
• Foamed-in polyurethane cabinet
• 11³/₄-in. cutting board
• Cabinet interior accessible through (3) 20-ga. locking doors
• Doors remain open past 90 degrees
• All metal spec door handle
• Mounted on 3-in. castors

Refrigeration Details

• R290 hydrocarbon refrigerant
• Digital temperature control and display
• Temperature holding range: 33-41 degrees F
• Sealed, self-lubricating evaporator fan motor and larger fan blades
• Epoxy-coated evaporator
• Rear-mounted condensing unit slides out
• Guided airflow ensures uniform temperatures throughout unit

Dimensions & Utilities

• 72³/₈ in. W x 30¹/₈ in. D x 34 in. H (H measured to work surface)
• 7.2 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration TSSU-72-08-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Sandwich/Salad Unit, 3" castors (34" work surface height), (8) 1/6 size (4"D) poly pans, SPEC Package 3 includes: stainless steel insulated cover, 11-3/4"D cutting board, (3) full doors with locks, (6) gray PVC coated adjustable wire shelves, digital temperature control and display, stainless steel front, sides & back, stainless steel interior liner & stainless steel floor with coved corners, , R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-08-HC~SPEC3 ADA Specifications

Documents

Spec Sheet

Warranty

Installation Guide
