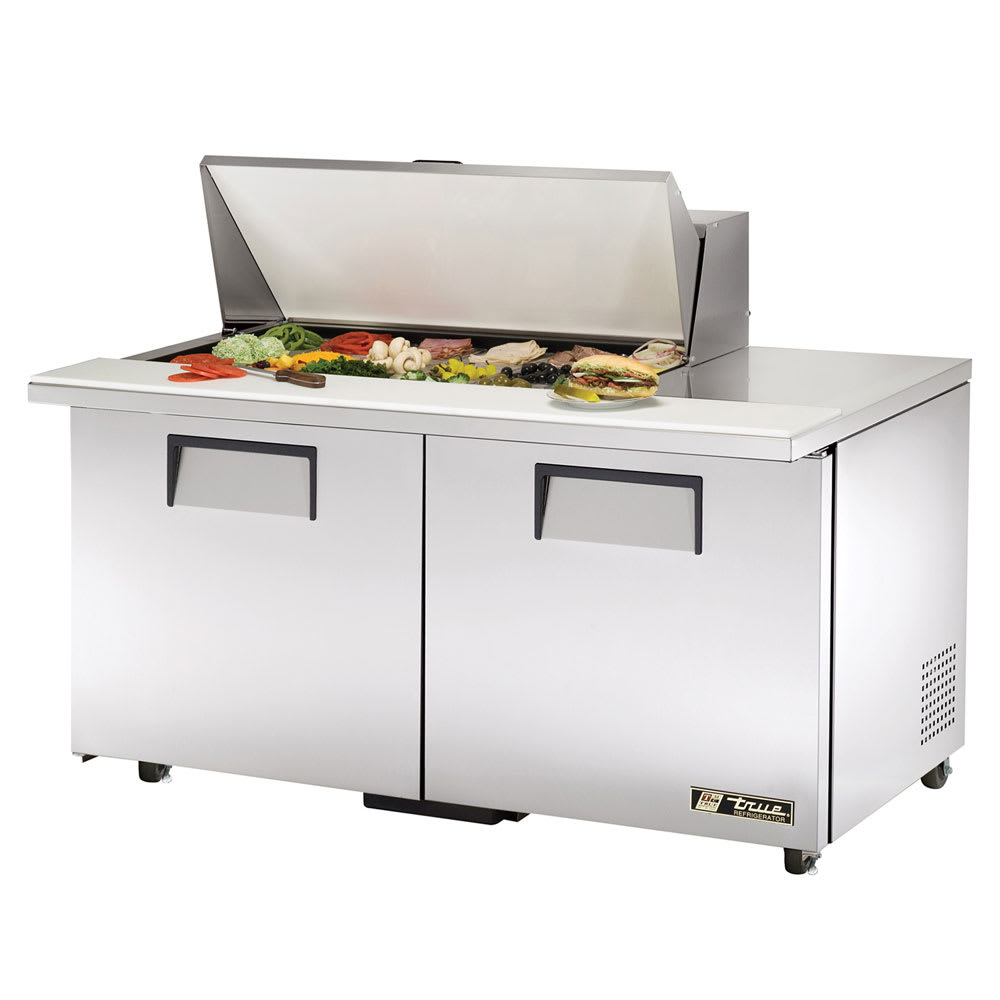

True TSSU-60-18M-B-HC ADA 60" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-60-18M-B-HC food prep table is equipped with a slide-out refrigeration system that is accessible from the rear of the cabinet for quick maintenance. To provide consistent temperatures to food pans and the cabinet interior, the factory-balanced refrigeration system has guided airflow. Its forced-air design holds steady temperatures between 33 and 41 degrees Fahrenheit.

This unit includes a self-cleaning feature that prolongs its life in a commercial setting. Upon start up of the compressor, the condensing fan motor reverses direction to blow excess dust off the condensing coil. To increase the unit's efficiency and provide proper product temperatures, users should still perform routine maintenance.

A sealed, self-lubricating evaporator fan motor and large fan blades give this True TSSU-60-18M-B-HC salad and sandwich prep table a low-velocity, high-volume airflow design. The self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant, which will not deplete the ozone layer. Its 34-inch-high work surface is compliant with ADA requirements.

Product Details

• Front, top, and ends made of durable stainless steel
• Corrosion-resistant GalFan-coated steel back
• Self-closing doors stay open past 90 degrees to facilitate product loading
• 1-piece magnetic door gaskets are removable without tools for cleaning
• 12-in.-long recessed handle is foamed-in-place with sheet metal interlock, ensuring permanence
• Equipped with 18 sixth-size pans made of clear polycarbonate
• 4 adjustable wire shelves are coated in PVC for durability
• 3-in.-diameter stem castors create an ADA-compliant, 34-in. work surface
• Stainless steel, foam-insulated hood and lid keep pan temperatures colder and lock in freshness while minimizing condensation with a removable function for cleaning

Self-contained Refrigeration System

• Evaporator is epoxy-coated, eliminating corrosion
• Rear-accessible condensing unit slides out for maintenance
• Factory-balanced refrigeration system with guided airflow to maintain pan and cabinet temperatures
• Fan motor operates in reverse for 20 seconds when the compressor starts to clean the condensing coil
• Temperature holding range: 33-41 degrees F
• Sealed, self-lubricating evaporator fan motor and larger fan blades produce high-volume, low-velocity airflow
• Capillary tube system is self-contained and uses R290 hydrocarbon refrigerant

Dimensions & Utilities

• Shelves: 27¹⁄₂ in. L x 16 in. D
• Overall: 60³⁄₈ in. W x 35¹⁄₈ in. D x 44³⁄₈ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-60-18M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (18) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-60-18M-B-HC ADA Specifications
