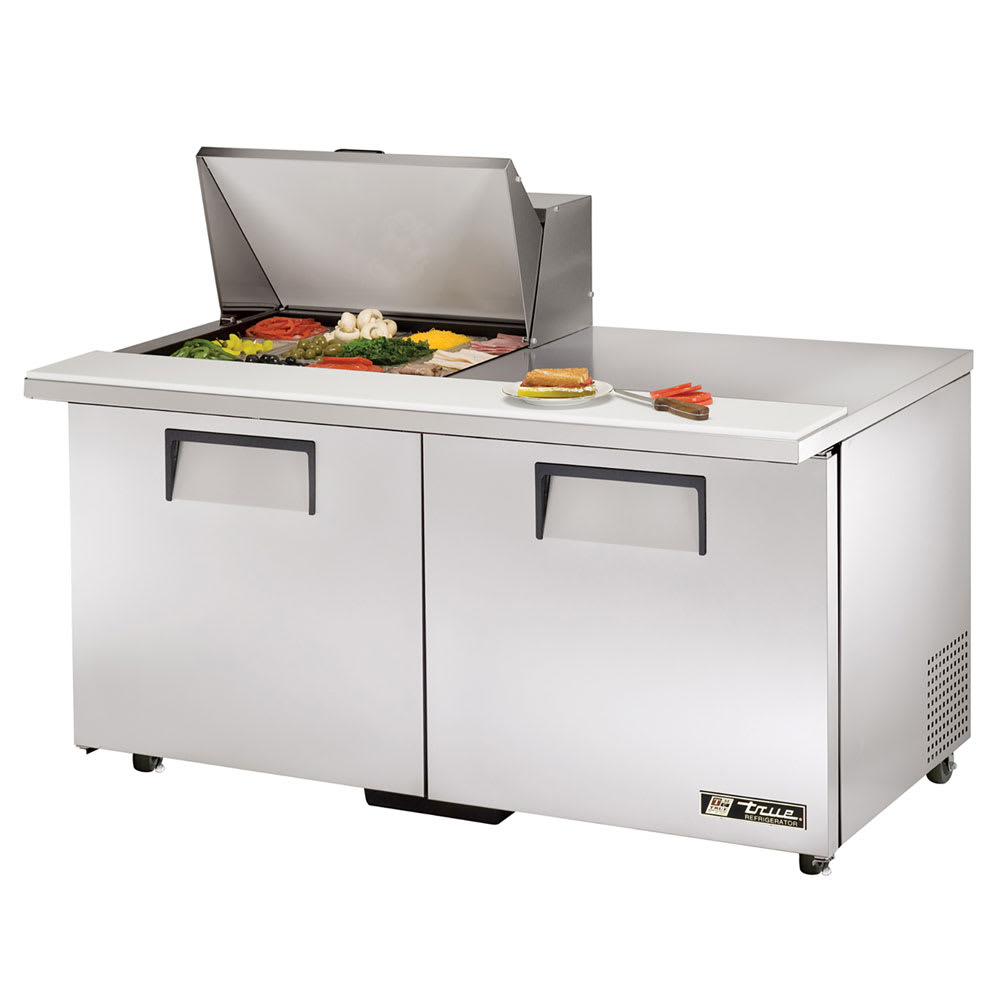

True TSSU-60-12M-B-HC ADA 60" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-60-12M-B-HC mega-top food prep table has a polyethylene cutting board that runs the length of the unit, so sandwiches and salads can move across the front as they are made. Ingredients go into 12 sixth-size food pans, which are included and made of clear polycarbonate. These pans drop into the refrigerated cutout on top, and a lid and hood cover the ingredients when not in use, protecting them from contamination. Beside the pans, an open space provides an area for sauces, dry snacks, and equipment.

Complying with ADA guidelines, this prep table has a 34-inch-high work surface, and its 3-inch-diameter castors enable the table to be moved around. This True TSSU-60-12M-B-HC prep table exterior is mostly constructed of stainless steel and lined with clear aluminum. To streamline cleanup, the interior stainless steel floor has coved corners where debris will not get stuck. Shelves help organize the cabinet storage space, which is kept at a set temperature from 33 to 41 degrees Fahrenheit. Fans move air around the interior, keeping contents evenly cooled. Its fan motors are sealed to prevent dust from falling in, and the evaporator's epoxy coating minimizes the risk of corrosion.

Optimizing the unit's operation, it includes a reverse condensing fan motor. This mechanism reverses for 20 seconds each time the compressor starts, clearing the condensing coil of dirt and dust. Using this feature as well as routine maintenance keeps the coil clean, reducing energy consumption and improving product temperatures.

Product Details

• 34-in.-high, ADA-compliant work surface
• Stainless steel exterior and GalFan-coated steel back resist denting, bending, and corroding
• Full-length, removable cutting board
• Tough preparation surface provided by the board's high-density polyethylene construction
• Comes with 12 clear polycarbonate food pans in countertop prep area
• Accommodates 6-in.-deep food pans (sold separately)
• Stainless steel, foam-insulated hood and lid
• 30²⁷⁄₃₂-in. open space for additional supplies
• 12-in.-long, recessed handle is foamed-in-place with a sheet metal interlock to ensure permanent attachment to door
• Positive-seal, self-closing doors have a 90-degree, stay-open feature
• 1-piece, magnetic door gaskets can be removed without tools for quick cleanup
• Shelf support pilasters are constructed of aluminum
• Shelves can be adjusted in ¹⁄₂-in. increments
• High-density polyurethane insulation strengthens door and cabinet structure
• Attractive interior is clear coated with an aluminum liner
• Rounded, coved corners on stainless steel floor
• 3-in. stem castors for mobility

Refrigeration System

• Self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant
• Guided airflow provides consistent temperature in cabinet interior and food pans
• Temperature holding range: 33-41 degrees F
• Slide-out condensing unit is accessible from the back for convenient maintenance
• Automatic reverse condensing fan motor keeps the condensing coil clean
• Potential corrosion is reduced with epoxy-coated evaporator
• Sealed, self-lubricating evaporator fan motor requires little maintenance

Dimensions & Utilities

• Cutting board: 60⁵⁄₁₆ in. W x 8⁷⁄₈ in. D x ¹⁄₂ in. H
• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 60⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 44⁷⁄₃₂ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-60-12M-B-HC ADA within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (12) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
