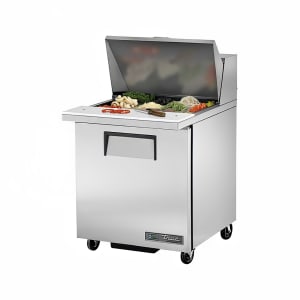

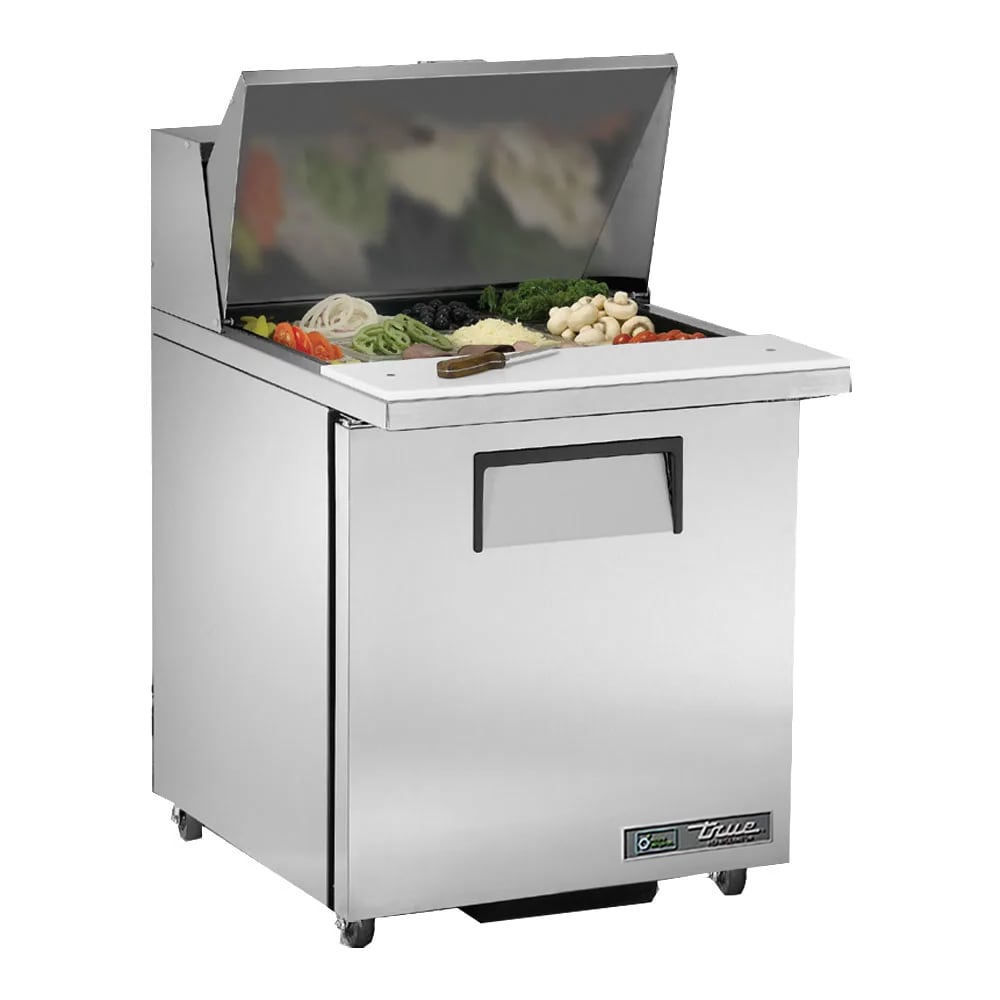

True TSSU-27-12M-B-HC ADA 27" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-27-12M-B-HC prep table has a refrigerated base with nine sixth-size pans and three ninth-size pans in the top cutout. These pans are made of clear polycarbonate, and a stainless steel, insulated lid sits over the compartment to protect ingredients when not in use. Additional product can be stored in the refrigerated base, and because of the evaporator fan motor and large fan blades, cold air is evenly distributed throughout the cabinet. Maintained by R290 hydrocarbon refrigerant in the capillary tube system, the set temperature ranges from 33 to 41 degrees Fahrenheit. When maintenance is needed, the condenser is accessible from the rear.

When implemented alongside regular maintenance, the reverse condensing fan motor ensures the unit operates at peak efficiency. This feature begins automatically each time the compressor starts up, blowing in reverse for 20 seconds to rid the condensing coil of dust and debris. When the coil is kept clean, the unit runs using less energy and improved product temperatures.

For strength and durability, the exterior is made of stainless steel, while the interior is aluminum to resist corrosion. Its stainless steel floor has coved corners to prevent food particles from getting trapped, facilitating cleanup. If the operator needs to clean under the cabinet, it can be moved because it is mounted on 3-inch-diameter castors. This True TSSU-27-12M-B-HC prep table includes a polyethylene cutting board that runs the length of the unit, providing a place where meals and ingredients can be prepared.

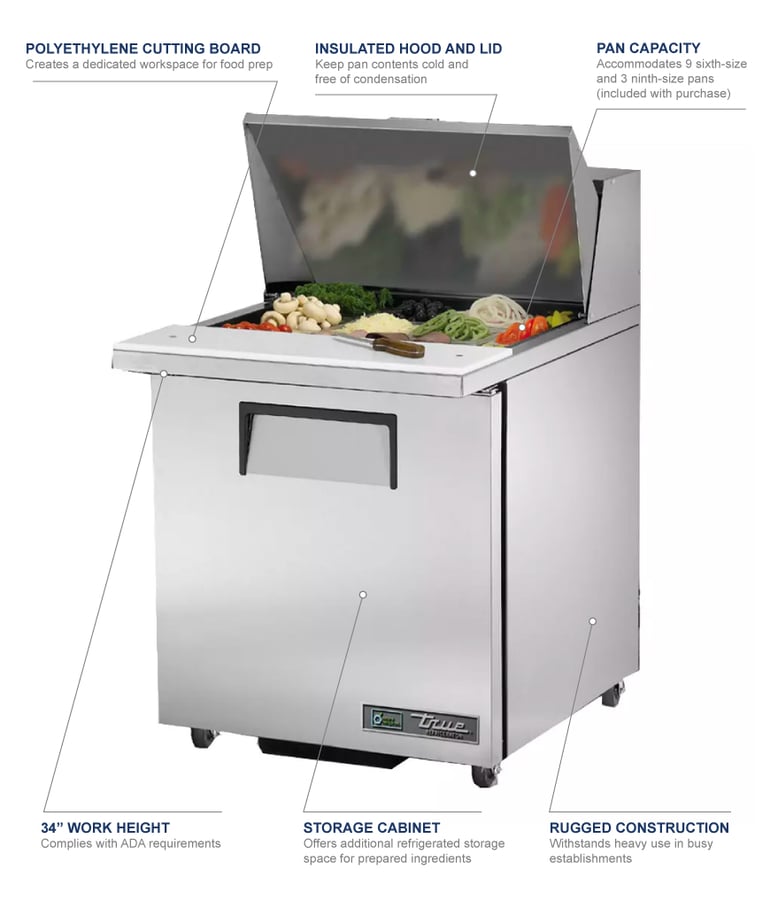

Product Details

• ADA-compliant design with a 34-in. work surface height
• Stainless steel exterior resists rust, dents, and scratches
• Aluminum interior liner withstands heavy use
• Debris rarely gets stuck in the stainless steel floor's coved corners
• Foamed-in-place polyurethane insulation creates stability and retains cold air
• Locks on 2 of the 3-in.-diameter stem castors secure the unit in place
• Left-hinged door opens from the right and has a 12-in. recessed handle
• Stainless steel door stays open past 90 degrees for loading product
• Cold air is trapped inside with magnetic gaskets around the door frame
• 2 adjustable, PVC-coated shelves hold product
• Prepare ingredients and meals on the 8⁷⁄₈-in.-wide x ¹⁄₂-in.-thick polyethylene cutting board
• Foam-insulated lid keeps cold air over pans
• 9 sixth-size and 3 ninth-size pans are included

Product Features

Self-contained Refrigeration System

• R290 hydrocarbon refrigerant runs through the capillary tube system
• Temperature holding range: 33-41 degrees F
• Condensing unit is accessible through the back
• Low-velocity, high-volume airflow is created by the evaporator fan motor and large fan blades
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Ninth-size pans: 4¹⁄₄ in. L x 6¹⁵⁄₁₆ in. W x 4 in. D
• Overall: 27¹³⁄₁₆ in. W x 35¹⁄₁₆ in. D x 44⁷⁄₃₂ in. H
• 3.5 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (9) 1/6 & (3) 1/9 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (1) door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
