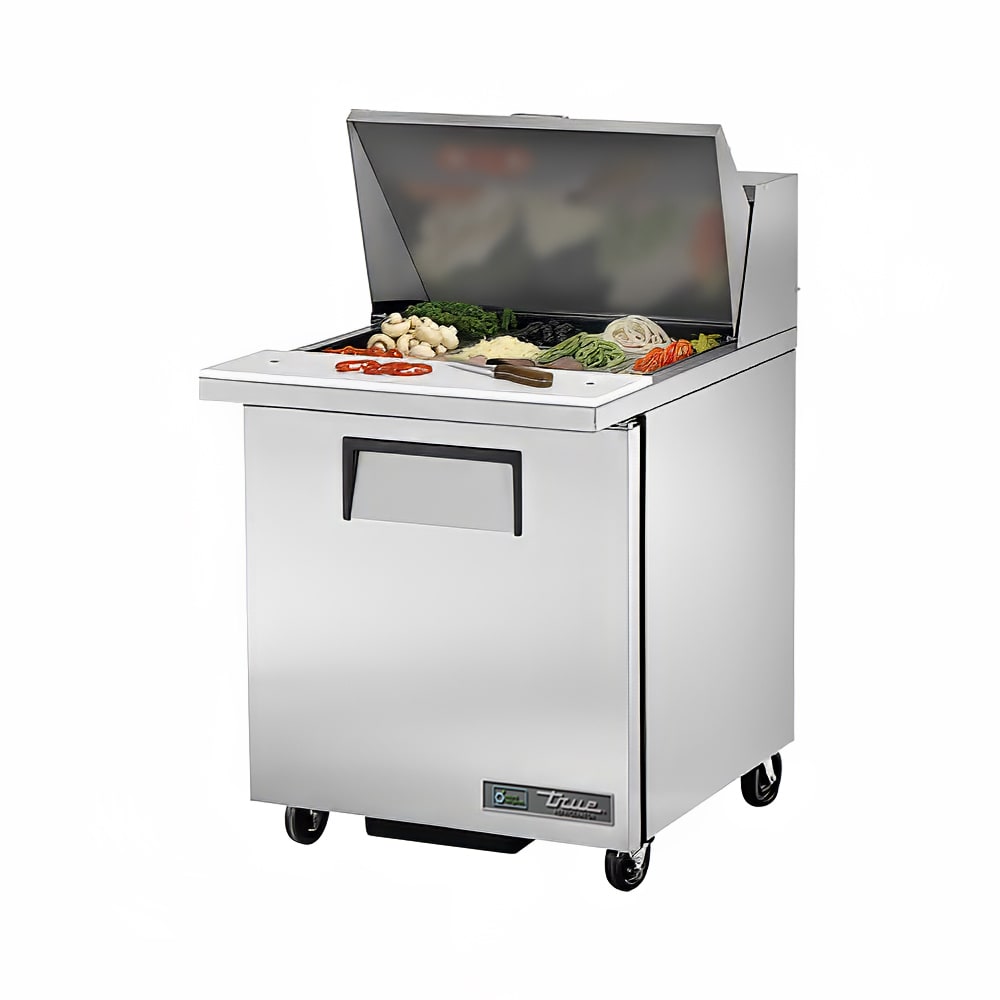

True TSSU-27-12M-B-HC ADA 27" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-27-12M-B-HC food prep table has one section, a stainless steel lid, and a solid stainless steel door, and its two PVC-coated wire shelves are adjustable in ¹⁄₂-inch increments to accommodate a variety of product sizes. In the top cutout, nine sixth-size pans and three ninth-size pans hold ingredients for pizzas and sandwiches. To accept a variety of sizes with divider bars (sold separately), the top of this unit can be adjusted.

This refrigerated prep table uses a capillary tube system and R290 hydrocarbon refrigerant to hold the cabinet and food pan temperatures to a set level between 33 and 41 degrees Fahrenheit. For moving high volumes of air through the cabinet, the sealed and self-lubricating fan motor powers large fan blades. To ensure longevity, the evaporator is coated in epoxy to resist corrosion, and the condensing unit slides out from the rear of the cabinet for maintenance for accessibility.

Improving the unit's efficiency, the condensing coil is kept clean using a reverse condensing fan motor. Upon compressor start up, it blows in reverse for 20 seconds to remove dust buildup from the coil. For optimal results, employees should perform maintenance on the coil regularly.

Product Details

• 3-in. castors come standard
• Full-length cutting board is 8⁷⁄₈-in. deep
• Includes 9 sixth-size clear polycarbonate pans and 3 ninth-size pans
• Pan openings on equipment top can be configured to varying sizes with divider bars (sold separately)
• Oversized and factory-balanced refrigeration uses R290 refrigerant
• Guided, low-velocity airflow is directed by large fan blades and powered by a sealed, self-lubricating fan motor
• Condensing fan motor reverses for 20 seconds upon compressor start up to clean the condensing coil
• Temperatures in cabinet and pans can be set between 33 and 41 degrees F
• Condenser can be accessed from the back of the unit
• 2 gray PVC-coated shelves included
• Shelves are adjustable on aluminum pilasters every ¹⁄₂-in.
• Epoxy evaporator coating resists corrosion
• 34-in. work surface is ADA compliant

Product Features

Durable Construction

• Stainless steel exterior top, front, and ends withstand heavy use
• Clear-coated aluminum liner with stainless steel floor and coved corners
• Door has stainless steel exterior and aluminum interior liner
• High-density, foamed-in-place polyurethane insulation for stability
• Lid and hood are foam insulated to help maintain temperatures and are removable for cleaning
• 12-in, recessed door handle is foamed in place for permanence
• Magnetic gaskets around the door frame prevent cold air loss

Dimensions & Utilities

• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Ninth-size pans: 4¹⁄₄ in. L x 6¹⁵⁄₁₆ in. W x 4 in. D
• Overall: 27⁵⁄₈ in. W x 35¹⁄₈ in. D x 44³⁄₈ in. H
• 3.5 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 11-ft. cord with NEMA 5-15 plug

From The Manufacturer

Mega Top Sandwich/Salad Unit, 34" work surface height, (9) 1/6 & (3) 1/9 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (1) door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 3.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-27-12M-B-HC ADA Specifications
