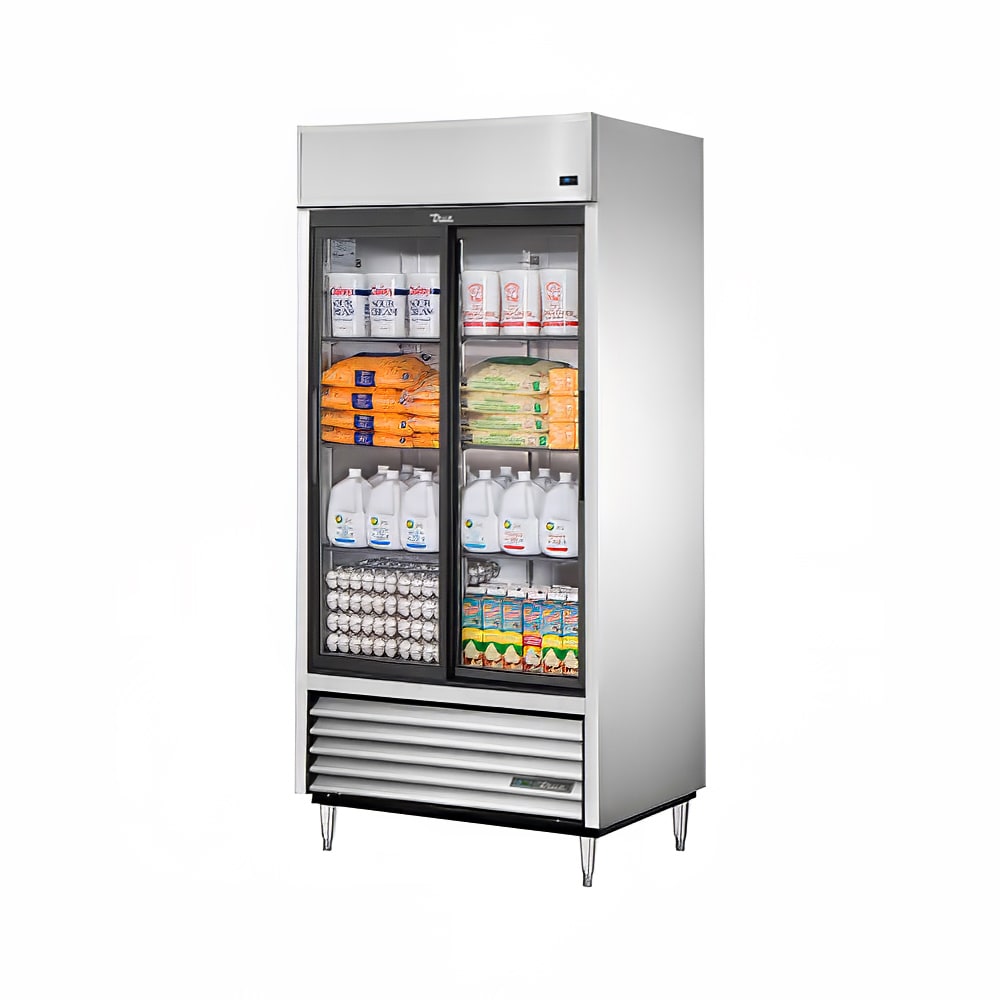

True TSD-33G-HC-LD 39 1/2" Two Section Reach In Refrigerator, (2) Sliding Glass Doors, 115v

In the True TSD-33G-HC-LD TSD series reach-in refrigerator, six adjustable, PVC-coated shelves hold products, and for visibility, LED lighting illuminates the interior, ensuring staff members can see stored items through the glass doors. These doors open with 12-inch-long handles and counterbalanced, smooth-glide designs. Made of stainless steel and thermal glass, the doors have a durable construction, and to resist corrosion, this unit has anodized aluminum sides and a GalFan-coated steel back. A heavy-duty frame rail and polyurethane insulation reinforce the structure and prevent warps. Cleanup is efficient because the stainless steel floor has rounded corners, eliminating crevices where debris could get trapped.

Operators can set the internal temperature between 33 and 38 degrees Fahrenheit, which is maintained with R290 hydrocarbon refrigerant. Mounted in the bottom, the condensing unit in this True TSD-33G-HC-LD two-section refrigerator runs in the coolest space in the kitchen, and its location elevates the interior floor to a comfortable loading and unloading height. The evaporator is epoxy coated to resist corrosion.

To maintain a clean condensing coil, the condensing fan motor blows in an opposite direction for 20 seconds when the compressor is turned on. With a consistently clean surface, the coil can operate more efficiently without using as much energy; it also helps extend the unit's lifetime. Despite the mechanism's effectiveness, it should not replace general maintenance.

Product Details

• Part of the TSD series
• 6 heavy-duty, PVC-coated wire shelves
• Shelves are adjustable in ¹⁄₂-in. increments
• LED interior lighting enhances visibility
• Stainless steel front and double-pane glass doors
• Self-closing door design prevents warm air from getting sucked into the cabinet
• Durable, anodized aluminum sides and GalFan-coated steel back
• Strong, welded frame rail
• Foamed-in-place insulation retains cold air
• Interior liner is clear-coated aluminum, while interior floor is stainless steel
• Coved floor corners do not have crevices that trap debris
• 6-in. legs elevate the unit

Bottom-mount Refrigeration System

• Temperature holding range: 33-38 degrees F
• External temperature display
• R290 hydrocarbon refrigerant is eco-friendly
• Evaporator is coated in epoxy for corrosion resistance
• Bottom mounted to keep the compressor in the coolest area of the kitchen
• Condensing coil cleaned with 20-second reverse fan motor blowing mechanism
• Interior floor is raised to create a comfortable shelf height

Dimensions & Utilities

• Shelves: 17¹⁄₄ in. W x 21¹⁄₈ in. D
• Overall: 39¹⁄₂ in. W x 30⁵⁄₁₆ in. D x 84³⁄₈ in. H
• 6.5 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSD-33G-HC-LD within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, (2) glass sliding doors, (6) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 6" legs, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSD-33G-HC-LD Specifications
