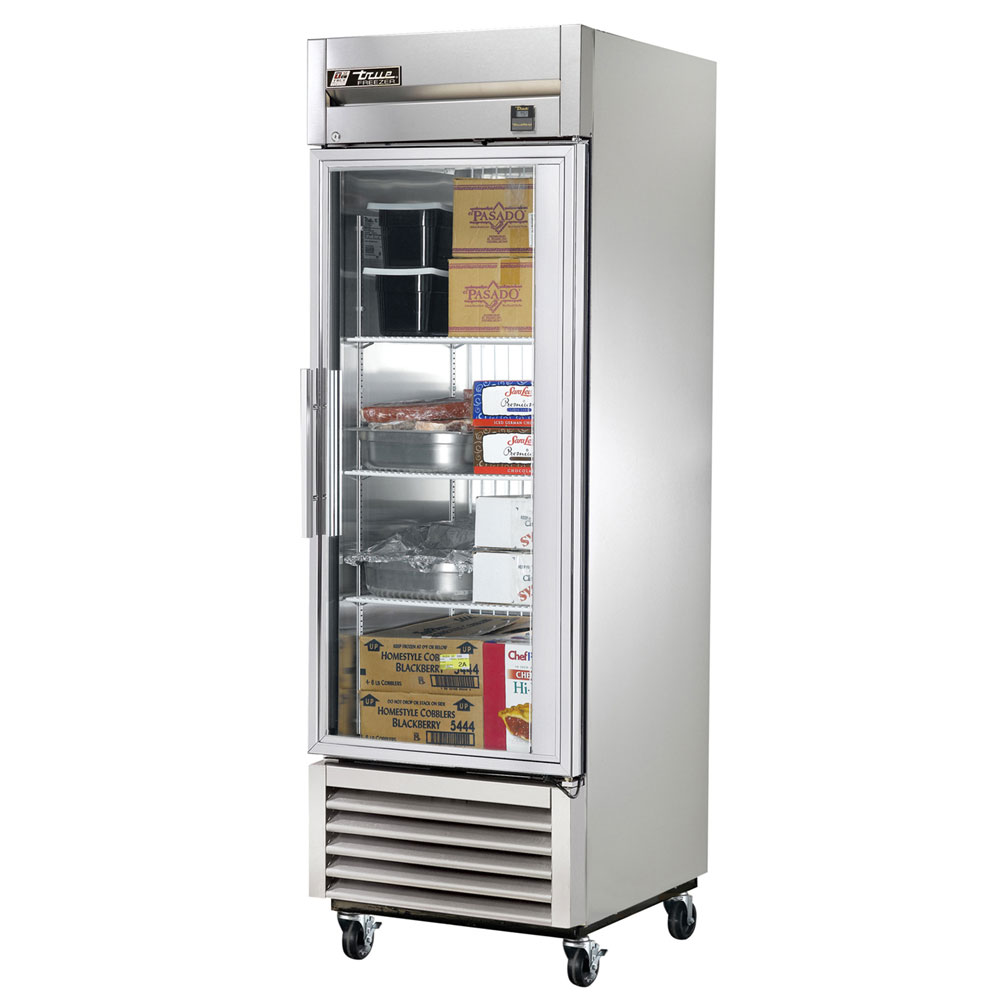

True TS-23FG-HC~FGD01 27" T Series One Section Reach In Freezer, (1) Right Hinge Glass Door, 115v

This True TS-23FG-HC~FGD01 reach-in freezer is perfect for grocery or convenience stores that want to merchandise items. Its tempered glass door provides a full view of products without needing to open the door, and LED interior lights further improve visibility into the cabinet. A door lock prevents unauthorized access, while magnetic gaskets prevent cold air from leaking out. In the cabinet, three PVC-coated shelves can be adjusted in ¹⁄₂-inch increments to accommodate various sized products.

Constructed of stainless steel, the exterior and interior of this freezer are durable and corrosion resistant. Foamed-in-place polyurethane insulation keeps cold air in the cabinet, and R290 hydrocarbon refrigerant maintains a constant temperature of -10 degrees Fahrenheit, which is ideal for ice cream and frozen foods. The refrigeration system is mounted on the bottom of the True TS-23FG-HC~FGD01 reach-in freezer, facilitating cleanup and product stocking. High-volume airflow is created by the evaporator fan motors and large blades for quick temperature recovery, while airflow guards prevent products from blocking the consistent flow of air.

To optimize the unit's performance, the condensing fan motor operates in reverse for 20 seconds each time the compressor starts. This automatic feature ensures the condensing coil remains clean, increasing the unit's lifespan and operating using less energy. This mechanism doesn't replace the need for routine preventative maintenance.

Product Details

• 3 PVC-coated shelves are adjustable in ¹⁄₂-in. increments to accommodate various products
• LED interior lights provide product visibility
• Stainless steel exterior and interior resist corrosion and are durable for commercial use
• Foamed-in-place polyurethane insulation keeps cold air in the unit
• Black powder-coated steel frame rail gives the unit stability
• 4-in.-diameter castors enable movement
• Triple-pane, thermal glass door provides full visibility while keeping cold air in the cabinet
• Standard lock prevents unauthorized access
• 15-in. extruded aluminum handle ensures opening the door is comfortable
• Magnetic gaskets create a positive seal and prevent cold-air leaks

Refrigeration System

• Bottom-mounted refrigeration system is convenient to service and clean
• R290 hydrocarbon refrigerant keeps temperatures cool
• Maintained operating temperature: -10 degrees F
• Automatic defrost system keeps the unit running properly
• Quick temperature recovery is possible because the evaporator fan motor and large blades create a high-volume airflow
• Condensing coil cleaned with a reverse condensing fan motor
• Airflow guards prevent products from blocking the flow of air
• Evaporator is coated in epoxy to resist corrosion

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 32¹⁄₃₂ in. D x 83¹¹⁄₁₆ in. H
• 6.2 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TS-23FG-HC~FGD01 within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, one-section, -10°F, framed glass door version 01, (1) glass door, (3) gray PVC coated adjustable wire shelves, LED interior lighting, stainless steel front/sides, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 6.2 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor

True Refrigeration TS-23FG-HC~FGD01 Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Product Info

Brochure

Certifications
