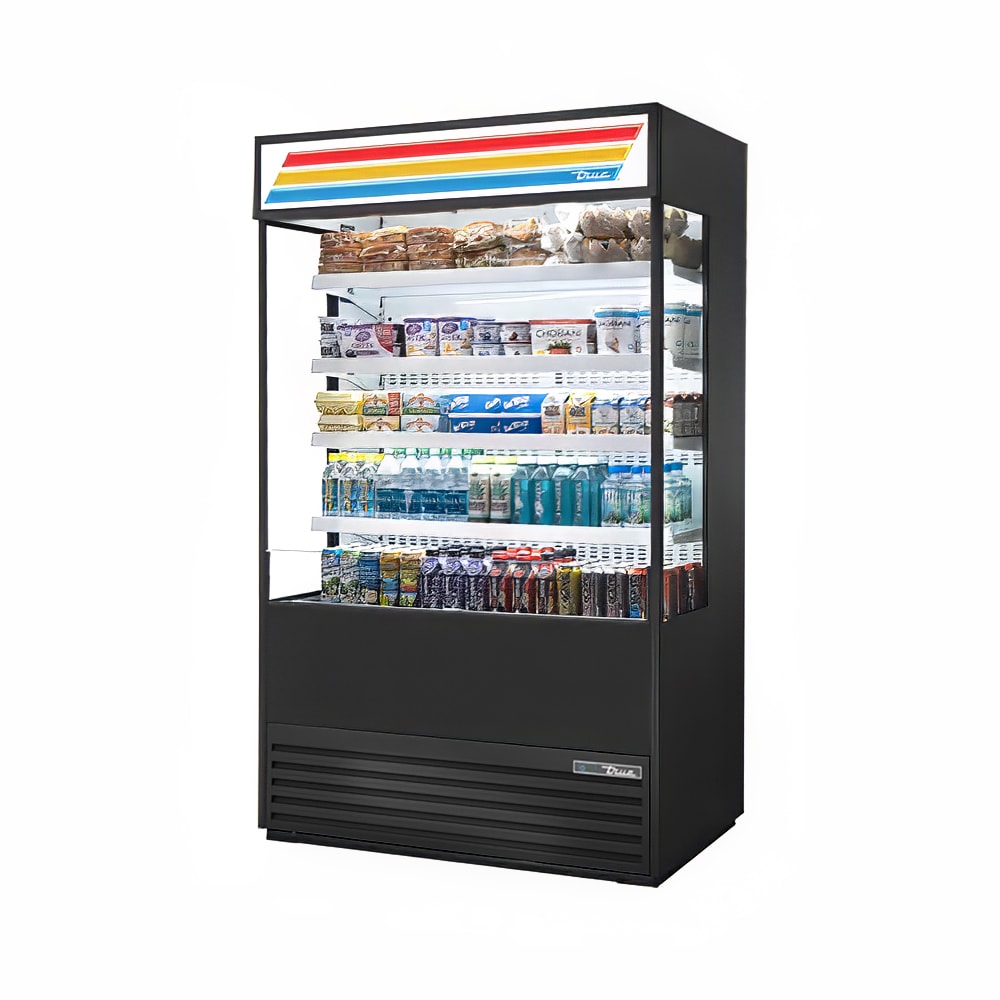

True TOAM-48GS-HC~TSL01 48" Vertical Open Air Cooler w/ (5) Levels, Black, 208-230v

For placement in gas stations, grocery stores, and convenience stores, the True TOAM-48GS-HC~TSL01 open-air cooler measures 48 inches wide by 29⁷⁄₈ inches deep by 78¹⁄₂ inches tall. Its cold-rolled steel exterior is finished with peel- and chip-resistant black powder coating to preserve its original quality through long-term use, while its top section sports the True Version 01 standard look for a vintage flair. Customers have a full view of displayed drinks, sandwiches, salads, and snacks because it's built with an open front and glass panels on its lower front and sides. To ensure stability during product insertion and removal, its welded steel frame is fitted with leg levelers.

This merchandiser is built with four tiers of white powder-coated solid cantilever shelves that can be tilted 15 degrees to enhance product display. Although the cabinet is lit with LEDs to attract customer attention, each shelf also includes an LED light strip to enhance presentation. To complement the shelves, the interior is lined with white aluminum, while the deck pans and floor are made of stainless steel.

The True TOAM-48GS-HC~TSL01 merchandiser's self-contained refrigeration system produces temperatures from 33 to 40 degrees Fahrenheit, and the cabinet is foamed in place with high-density polyurethane insulation to preserve generated temperatures. To maintain a frost-free unit, users can set specific times and temperatures to initiate and terminate defrost cycles. During non-business hours, the included night cover can be secured over the open front to minimize energy consumption. To maintain an efficient refrigeration system, the evaporator and condenser fan motors are electronically commutated (EC), moving a consistent volume of air to reduce heat production and energy usage. The condenser's fan motors reverse periodically to remove buildup of dirt, dust, and debris from the condenser coil, enhancing performance.

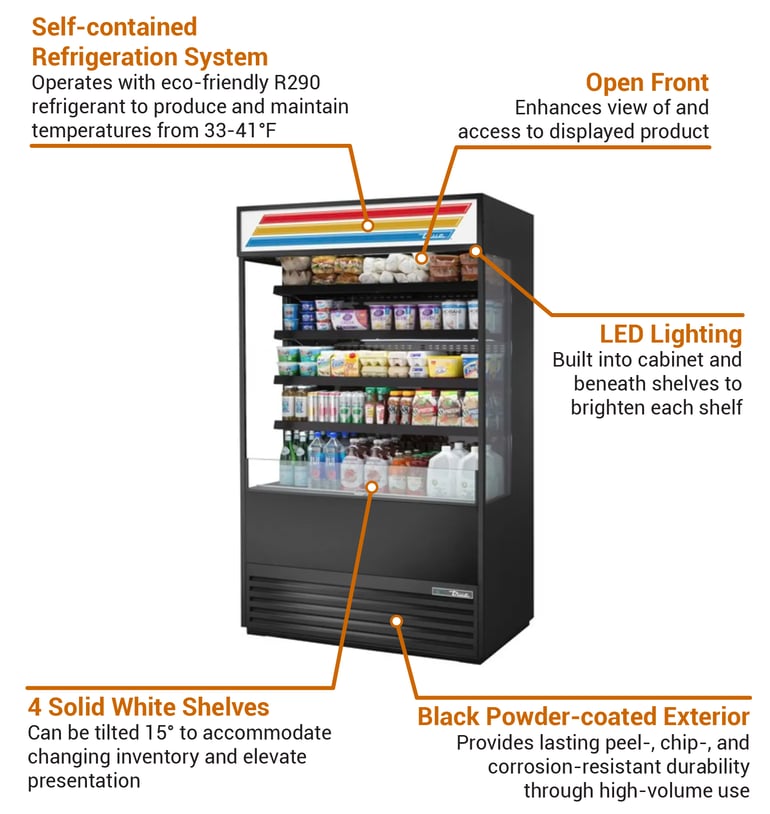

Product Details

• True standard look Version 01 configuration
• Cold-rolled steel exterior finished with peel- and chip-resistant black powder coating
• Heavy-duty welded steel frame features corrosion-resistant black powder coating
• White aluminum interior liner
• Stainless steel interior floor and deck pans
• 4 white powder-coated solid cantilever shelves can be tilted 15 degrees in 5-degree increments
• Each shelf features an LED light strip
• Glass lower front and side panels
• Foamed-in-place high-density polyurethane insulation
• Frame rail built with leg levelers
• Includes night cover
• Maximum ambient temperature: 80 degrees F
• Maximum relative humidity: 55 percent
• Not recommended for installation near HVAC vents, fans, or doorways

Refrigeration System

• Self-contained
• R290 hydrocarbon refrigerant
• Operating temperature range: 33-41 degrees F
• Defrost cycles can be set to start and end at specific times and temperatures
• EC evaporator and fan motors
• Bottom-mounted condensing unit
• Reversing condenser fan motors remove dirt, dust, and debris from condenser coil

Dimensions & Utilities

• 48 in. W x 29⁷⁄₈ in. D x 78¹⁄₂ in. H
• 7.6 A, (2) ³⁄₄ HP
• 208-230 V/60 Hz/1 ph, 10-ft. cord with NEMA 6-15P plug

Product Features

*Free shipping on True Refrigeration TOAM-48GS-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Vertical Air Curtain Merchandiser, True standard look version 01, 48"W, glass sides, (4) adjustable solid white powder coated cantilever shelves with LED light strip, LED interior lighting, night cover standard, black powder coated exterior, white aluminum interior with stainless steel floor & deck pans, leg levelers, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 208-230V/60/1-ph, 7.6 amps, NEMA 6-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TOAM-48GS-HC~TSL01 Specifications

Documents

Spec Sheet

Warranty
