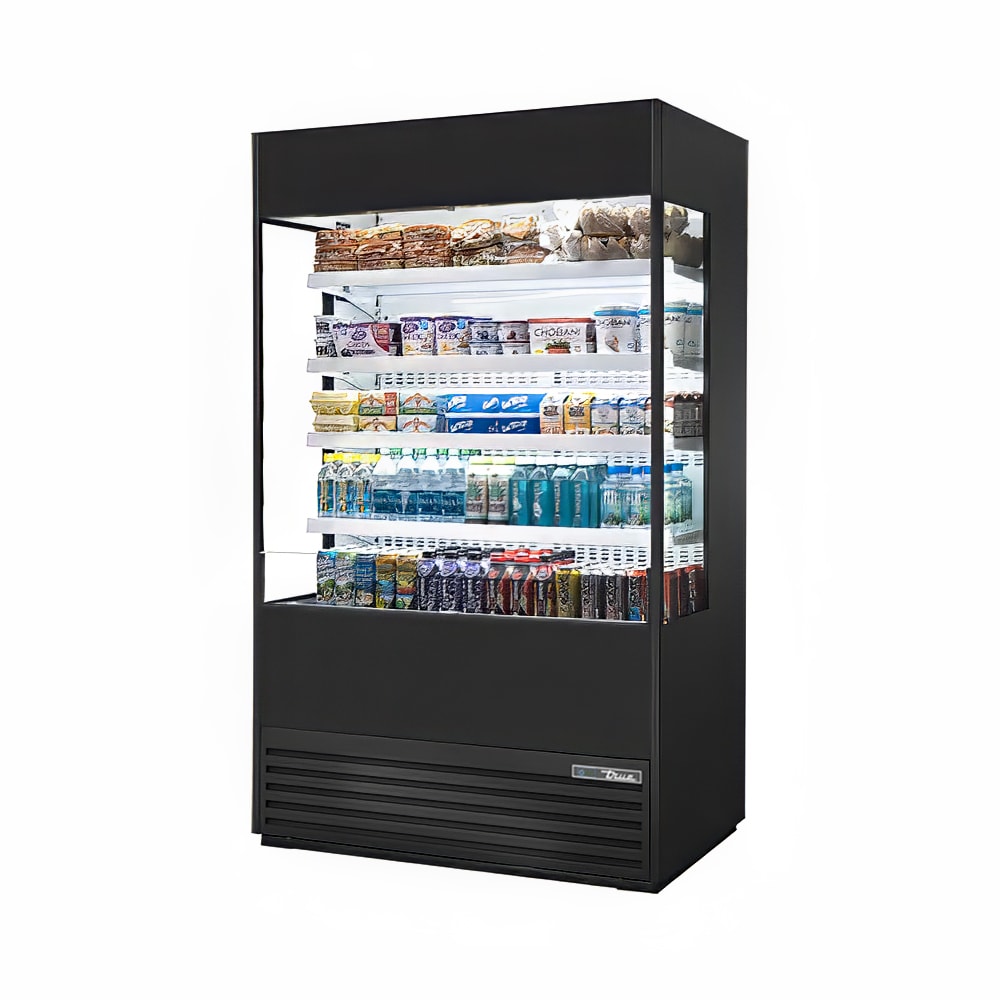

True TOAM-48GS-HC~NSL01 48" Vertical Open Air Cooler w/ (5) Levels, Black, 208-230v

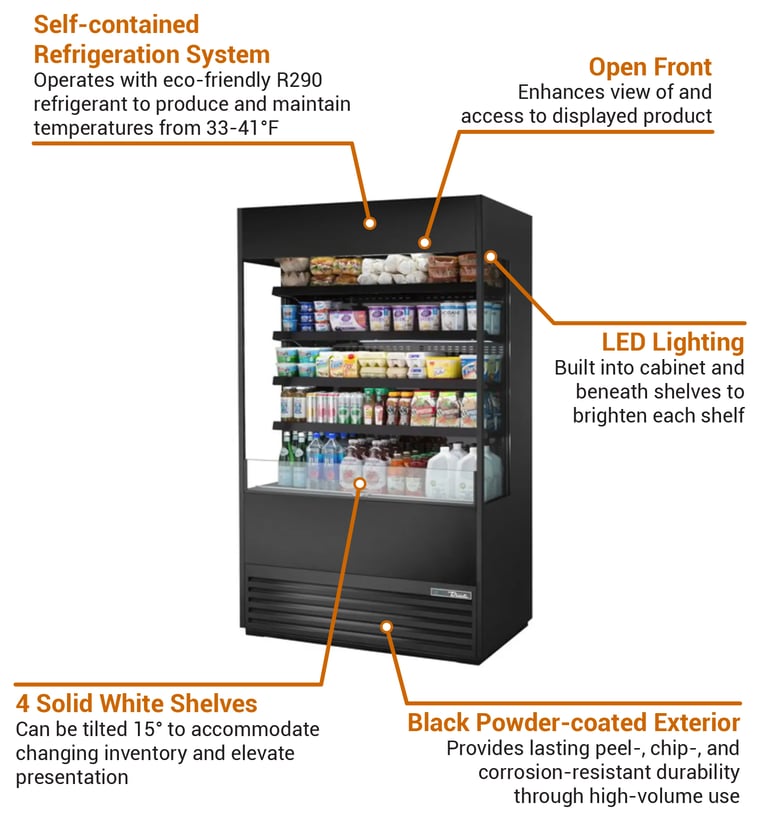

To promote impulse purchases in convenience stores, gas stations, and casual restaurants, the True TOAM-48GS-HC~NSL01 merchandiser sports an open front for full visibility and product access. Its four solid, white powder-coated cantilever shelves can be tilted as much as 15 degrees to accommodate different drinks, salads, sandwiches, yogurt, or packaged snacks, and each shelf features an eye-catching LED light strip to illuminate displayed products. While the interior is lined with white aluminum to establish a neutral background against displayed products, the floor and deck pans are made of rugged stainless steel. Glass panels integrated on the sides and lower front help minimize temperature loss without obstructing the customers' view.

The self-contained refrigeration system maintains temperatures from 33 to 40 degrees Fahrenheit to ensure products are held in a safe environment. Ideal for businesses dedicated to reducing their environmental impact, it operates with R290 refrigerant, which boasts a zero ozone depletion potential and a three global warming potential. The entire cabinet is foamed in place with high-density polyurethane insulation to retain generated temperatures, and to further minimize energy consumption, it includes a night cover that can be placed over the open front after business hours. Staff can set time and temperatures to initiate and terminate defrost cycles. To minimize energy usage and heat production, this unit features electronically commutated (EC) evaporator and condenser fan motors, while its reversing condensing fan motors minimize dirt, dust, and debris buildup on the condenser coil for enhanced efficiency.

The True TOAM-48GS-HC~NSL01 open-air merchandiser features a peel- and chip-resistant black powder-coated cold-rolled steel exterior to retain durability and a sleek appearance over time. This 48-inch-wide by 29¹⁄₈-inch-deep by 78¹⁄₂-inch-tall unit is built with a welded heavy-duty steel frame rail that's powder coated black for corrosion resistance. To prevent disruptive wobbling on irregular surfaces, the frame rail is fitted with leg levelers. For optimal results, this unit shouldn't be used in environments exceeding 80 degrees Fahrenheit and 55 percent relative humidity.

Product Details

• Peel- and chip-resistant black powder-coated cold-rolled steel exterior
• Heavy-duty welded steel frame with corrosion-resistant black powder coating
• White aluminum interior liner
• Stainless steel interior floor and deck pans
• 4 white powder-coated solid cantilever shelves can be tilted to 15 degrees
• Each shelf includes LED light strip
• Glass lower front and side panels
• Cabinet is foamed in place with high-density polyurethane insulation
• Frame rail built with leg levelers
• Includes night cover
• Maximum ambient temperature: 80 degrees F
• Maximum relative humidity: 55 percent
• Shouldn't be installed near HVAC vents, fans, or doorways

Refrigeration System

• Self-contained
• Environmentally friendly R290 hydrocarbon refrigerant
• Operating temperature range: 33-41 degrees F
• Time- and temperature-initiated and terminated off-cycle defrost system
• EC evaporator and fan motors
• Bottom-mounted condensing unit
• Reversing condenser fan motors remove dirt, dust, and debris from condenser coil

Dimensions & Utilities

• 48 in. W x 29¹⁄₈ in. D x 78¹⁄₂ in. H
• 7.6 A, (2) ³⁄₄ HP
• 208-230 V/60 Hz/1 ph, 10-ft. cord with NEMA 6-15P plug

Product Features

*Free shipping on True Refrigeration TOAM-48GS-HC~NSL01 within the 48 contiguous states.

From The Manufacturer

Vertical Air Curtain Merchandiser, 48"W, glass sides, (4) adjustable solid white powder coated cantilever shelves with LED light strip, LED interior lighting, night cover standard, black powder coated exterior, white aluminum interior with stainless steel floor & deck pans, leg levelers, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 208-230V/60/1-ph, 7.6 amps, NEMA 6-15P, cULus, UL EPH Classified

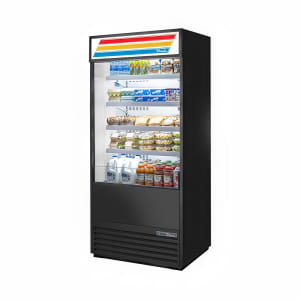

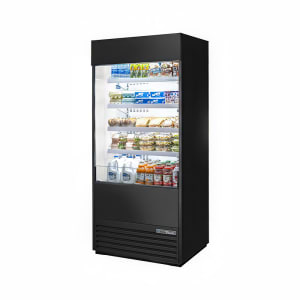

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
