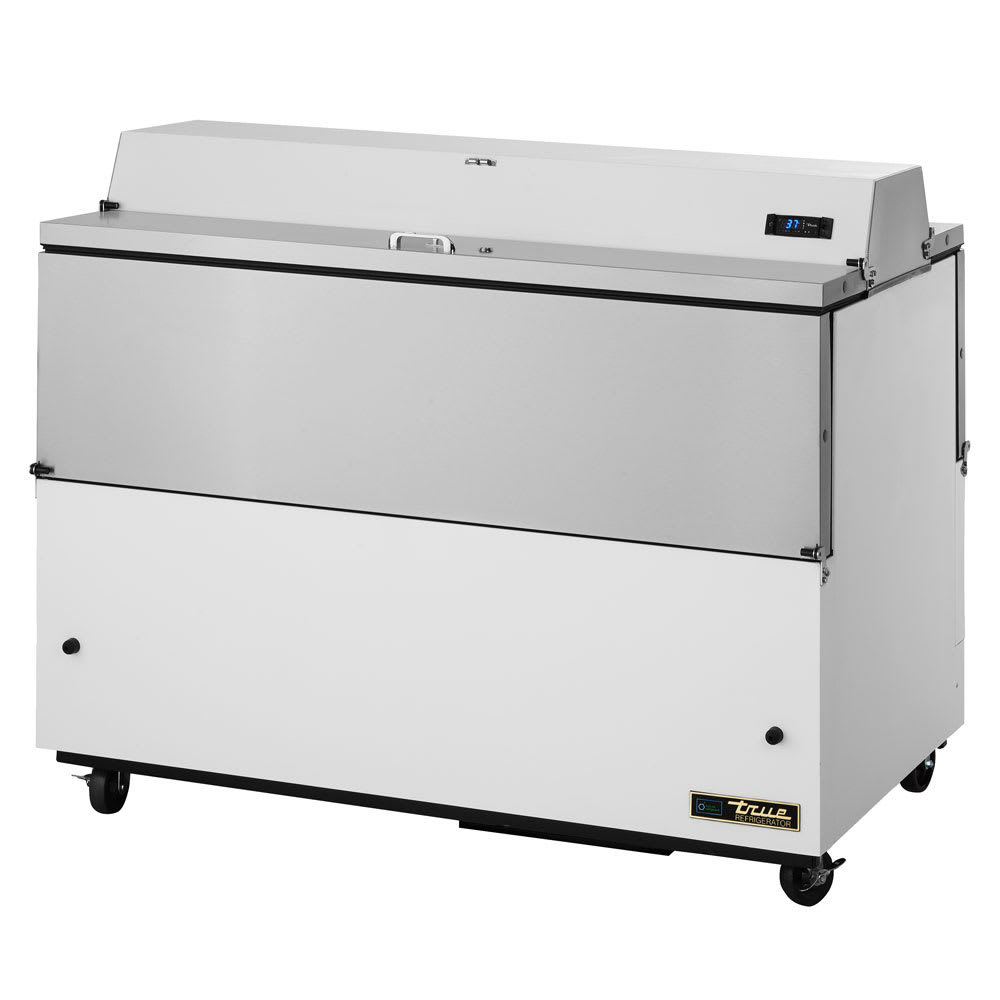

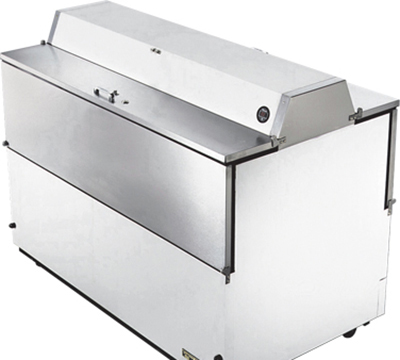

True TMC-58-DS-SS-HC Milk Cooler w/ Top & Side Access - (1024) Half Pint Carton Capacity, 115v

This True TMC-58-DS-SS-HC milk cooler can hold 16 standard milk crates, which are supported by a reinforced floor and three floor racks. Milk can be accessed through dual-sided service doors, with a flip-up top door and a drop front door on each side. Its service doors and interior are constructed of stainless steel, while the exterior is finished with durable white vinyl that can be used in heavily trafficked areas, such as school cafeterias. Mounted on 4-inch castors, this unit can be moved, and it has a cleanout drain for efficient cleanup.

Contents of this milk cooler are held at a set temperature between 33 and 38 degrees Fahrenheit, and to maintain these cool temperatures, R290 hydrocarbon refrigerant is metered through the capillary tube system. An epoxy coating on the evaporator provides rust protection, and the condensing unit slides out from the back for accessibility to clean and service. To efficiently move air throughout the cabinet, the True TMC-58-DS-SS-HC milk cooler has condenser and evaporator fan motors that are electronically commutated, producing less heat and using less energy.

Because the condensing coil operates best when its surface is clean, this unit's condensing fan motor has an automatic cleaning mechanism, blowing toward the coil for 20 seconds when the compressor starts up. This technology helps remove debris, permitting the coil to work more efficiently with less energy use over time. Preventive maintenance is still necessary for the coil to ensure it's working properly.

Product Details

• Can hold (16) 13-in. x 13-in. x 11⁵⁄₈-in. standard milk crates
• Dual-sided access provided by flip-up top and drop-down front doors
• Service doors are constructed of stainless steel
• Door locks deter theft
• Cold air is kept inside with magnetic door gaskets
• Foamed-in-place polyurethane insulates the cabinet
• Exterior is finished in permanent white vinyl
• Interior is constructed of stainless steel with a reinforced floor
• Black powder-coated frame rail adds structure
• 3 floor racks protect the floor from damage
• (4) 4-in. castors provide mobility and the front set locks in place
• Cleanout drain facilitates cleaning

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Forced-air refrigeration through the condenser and evaporator fan motors keeps temperatures consistent
• Condensing coil cleaned with 20-second condensing fan motor mechanism
• Temperature is displayed on an external digital display
• Slide-out condensing unit
• Epoxy-coated evaporator

Dimensions & Utilities

• 58¹⁄₄ in. W x 35 in. D x 46³⁄₄ in. H
• 2.7 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TMC-58-DS-SS-HC within the 48 contiguous states.

From The Manufacturer

Mobile Milk Cooler, forced-air, (16) 13" x 13" x 11-1/8" crate capacity, dual sided stainless steel drop front/hold-open flip-up lids with locks, 33 - 38°F temperature range, (3) heavy-duty floor racks, digital thermometer, white vinyl exterior, stainless steel interior & floor, 4" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, NEMA 5-15P, 2.7 amps, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
